Product Overview

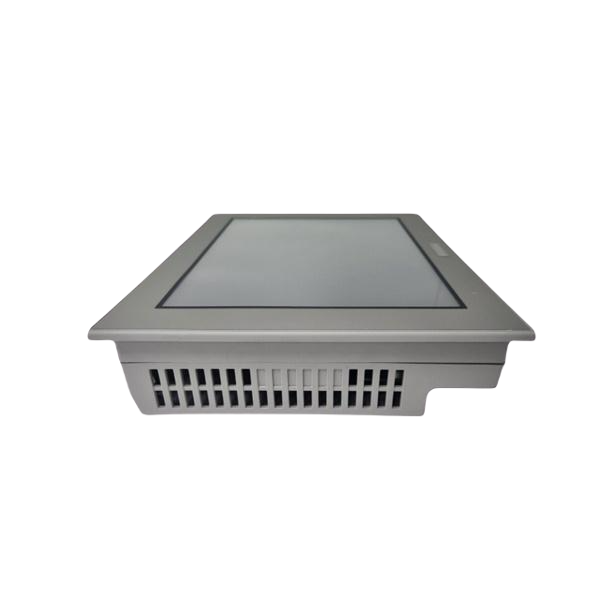

The Proface PFXGP4501TAA is a 10-inch TFT color LCD HMI, part of the GP4000 Series. It delivers high-resolution visualization at 640 x 480 pixels, supporting 65,536 colors for precise process monitoring. Moreover, the resistive touch panel provides accurate input with over 1,000,000 touches lifetime, ensuring long-term reliability.
This HMI is suitable for industrial environments, offering natural air cooling, IP65/NEMA 4X enclosure, and broad voltage support from 100 to 240 Vac, enabling stable operation under varying conditions.
Functional Highlights
- Wide Interface Compatibility: Includes RS-232C, RS-422/485, USB 2.0, Ethernet, and SD card for versatile connectivity.
- Language and Font Support: Offers multiple language fonts including Japanese, ANK, and Asian scripts, plus scalable font sizes for flexible display.
- High Durability: Backlight service life exceeds 50,000 hours, resistant to vibration, shock, and electrostatic discharge.
- Flexible Panel Installation: Supports 1.6–5 mm panel thickness with secure mounting and IP65 protection when installed properly.
- Enhanced Memory Management: Includes 32 MB application memory, 132 KB logic program, and SRAM backup, allowing complex visualization and control programs.
In addition, brightness and interface configurations are easily adjustable through the touch panel or software for operator convenience.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | PFXGP4501TAA |
| Brand | Proface |
| Series | GP4000 Series |
| Display Type | TFT Color LCD |
| Display Size | 10.4″ |
| Resolution | 640 x 480 pixels |
| Display Colors | 65,536 colors (No blink) |
| Touch Panel | Resistive Film, 1,024 x 1,024 resolution |
| Rated Voltage | 100–240 Vac |
| Frequency | 50/60 Hz |
| Power Consumption | 44–58 VA |
| Operating Temp. | 0–55 °C |
| Storage Temp. | -20–60 °C |
| Humidity | 10–90% RH, non-condensing |
| IP Rating | IP65 / NEMA 4X |
| Panel Cut-Out | W259 x H201 mm |
| Dimensions | W272.5 x H214.5 x D57 mm |
| Weight | 2 kg |
| Interfaces | RS-232C, RS-422/485, USB A/mini-B, Ethernet, SD Card |
These specifications ensure reliable operation in industrial applications with high safety and signal integrity.
Typical Applications
- Factory Automation: Supervises processes, visualizes machine parameters, and interfaces with PLC systems.
- Process Monitoring: Provides clear display and touch control for production lines or HVAC systems.
- Data Logging and Control: Supports SD card storage and Ethernet communication for plant-wide integration.
- Multi-Language Operation: Useful in international plants requiring diverse language support for operators.
For instance, this HMI ensures real-time monitoring and operator interaction across complex industrial networks.
