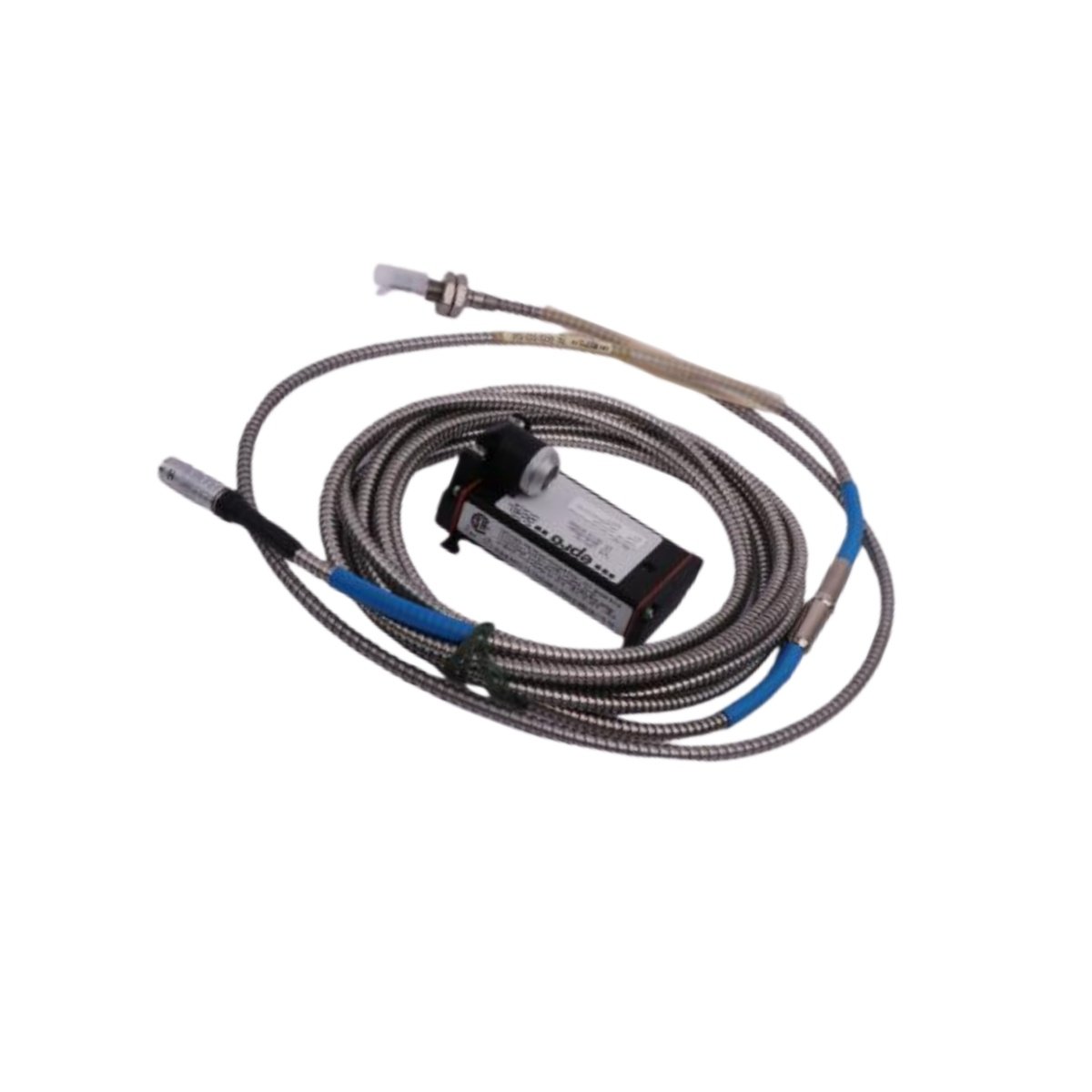

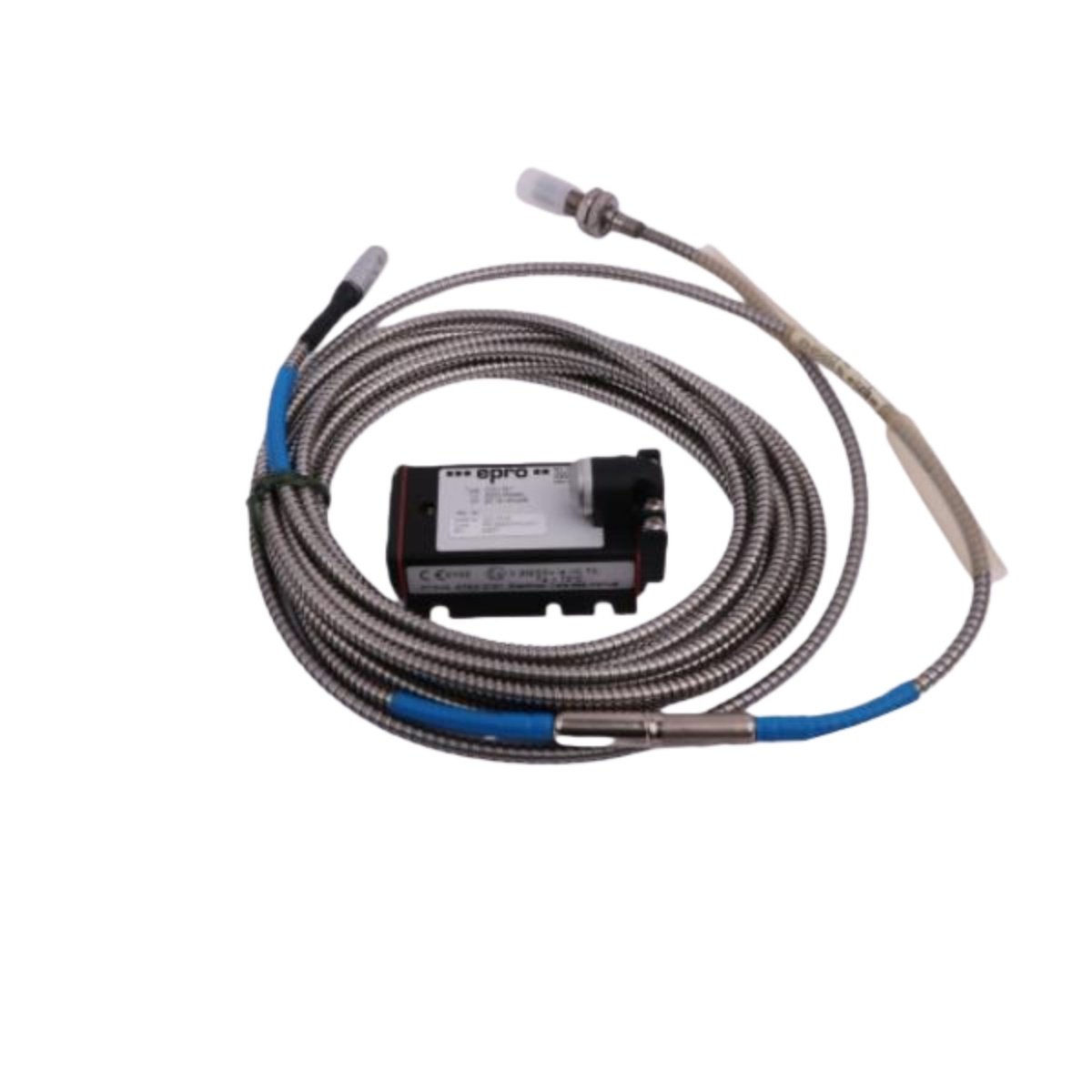

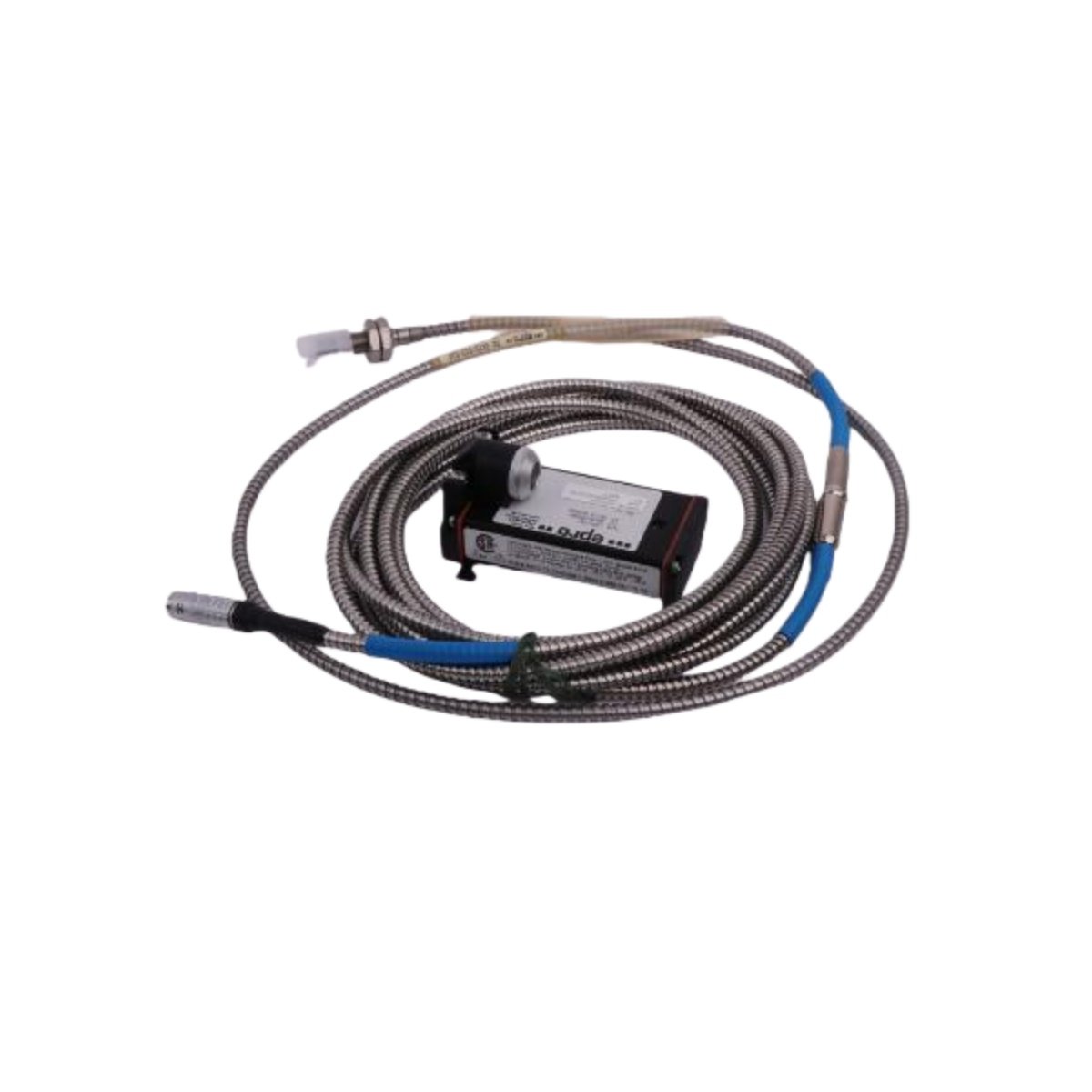

The EPRO PR9350/02 represents a high-precision inductive sensor for critical displacement measurement. Engineered by EPRO, this LVDT-type device reliably monitors radial and axial shaft position. Furthermore, it accurately tracks eccentricity in high-speed rotating equipment.

Detailed Technical Specifications

This sensor excels in demanding environments due to its robust technical design. Its core specifications include the following key parameters:

• Model & Type: EPRO PR9350/02 Inductive Position Sensor (LVDT)

• Measurement Range: ±25 mm

• Electrical Sensitivity: 270 mV/V nominal

• Linearity Error: Within ±3.5% of full scale

• Key Physical Data:

  • Dimensions: 170 mm x 80 mm x 235 mm

  • Weight: 0.4 kilograms

• Electrical Parameters:

  • Supply Voltage: 5 Vrms

  • Carrier Frequency Range: 3 kHz to 5 kHz

  • Winding Capacitance: 250 pF per winding

• Environmental Robustness:

  • Operating Temperature: -20°C to +100°C

  • Total Temperature Error: Less than 3% over the full range

  • Enclosure Protection: IP67 (fully dust-tight and water-resistant)

Engineered for Critical Machinery Protection

The PR9350/02 is vital for predictive maintenance systems on essential turbomachinery. Consequently, it serves as a key component in protecting steam turbines, gas turbines, and hydro turbines. Moreover, this module provides crucial data for compressors, large pumps, and industrial fans. Its durable IP67 housing ensures consistent operation even in harsh conditions.

Ultimately, this sensor delivers the accurate data needed to prevent unplanned downtime. Therefore, integrating the EPRO PR9350/02 enhances overall system reliability and safety.
