Sensor Overview

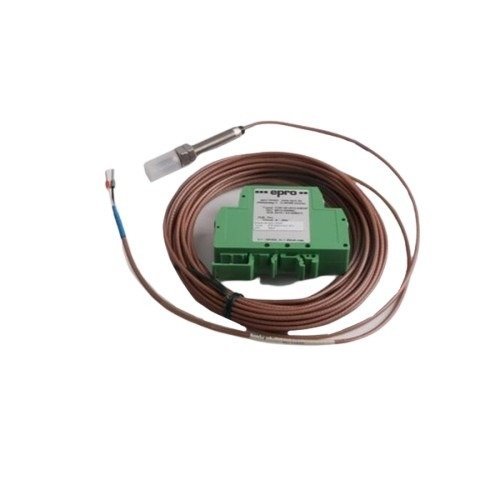

The PR6423/10R-131 is an 8mm non-contact eddy current sensor designed for shaft displacement, position, eccentricity, and speed measurement. Moreover, it operates reliably in harsh environments including steam, gas, and hydro turbines, compressors, and industrial pumps. In addition, the sensor features a robust PEEK tip and PTFE cable, ensuring durability in high-temperature and high-vibration conditions.
Functional Highlights
The sensor provides a linear measurement range of 2 mm with an initial air gap of 0.5 mm. Its Incremental Scale Factor (ISF) of 8 V/mm ±5% guarantees precise readings across the operational temperature range. Furthermore, the CON041 signal converter processes radial and axial displacement signals with frequency response up to 20 kHz and rise time <15µs. Additionally, the system is compatible with ferromagnetic steel shafts down to 25 mm diameter, enabling flexible machinery integration.
Technical Data
| Parameter | Specification |
|---|---|
| Sensor Type | PR6423/10R-131 |
| Tip Diameter | 8 mm |
| Linear Measurement Range | 2 mm (80 mils) |
| Initial Air Gap | 0.5 mm (20 mils) |
| Incremental Scale Factor (ISF) | 8 V/mm ±5% (0–45°C) |
| Linearity Error | ≤1.0% |
| Minimum Shaft Diameter | 25 mm (0.79”) |
| Shaft Material | Ferromagnetic Steel (42CrMo4 / AISI 4140) |
| Sensor Operating Temperature | -35°C to +180°C (-31°F to +356°F) |
| Cable & Connector Temperature | -35°C to +150°C (-31°F to +302°F) |
| Protection Class | IP66 |
| Cable Type | Standard 2.8 mm or Armored 6 mm |
| Cable Length | 1+7 m standard configuration |
| Connector | Lemo male 11 mm diameter or open cable end |
| Signal Converter | CON041 DIN Rail Mounted |
| Converter Voltage Range | -23V to -32V (-4V to -20V output) |
| Converter Operating Temperature | -30°C to +100°C (-22°F to +212°F) |
| Converter Protection Class | IP20 |
Dimensions (PR6423/10R-131):
- Case Thread: M10x1 or 3/8”-24 UNF.
- Cable Diameter:
- Standard: 2.8 mm (min. bending radius: 25 mm).
- Armored: 6 mm (min. bending radius: 35 mm).
- Cable Length: 8.0m (1+7m configuration).
- Connector: Lemo (male), 11.0 mm diameter, or open cable end.
System Integration
The PR6423/10R-131 works seamlessly with the CON041 signal converter, enabling accurate radial and axial displacement, eccentricity, and speed measurement. In addition, its design supports high-vibration and high-temperature environments, ensuring reliability in critical turbine, compressor, and pump applications. Therefore, it is ideal for steam, gas, hydro turbines, gearboxes, and industrial pumps.
