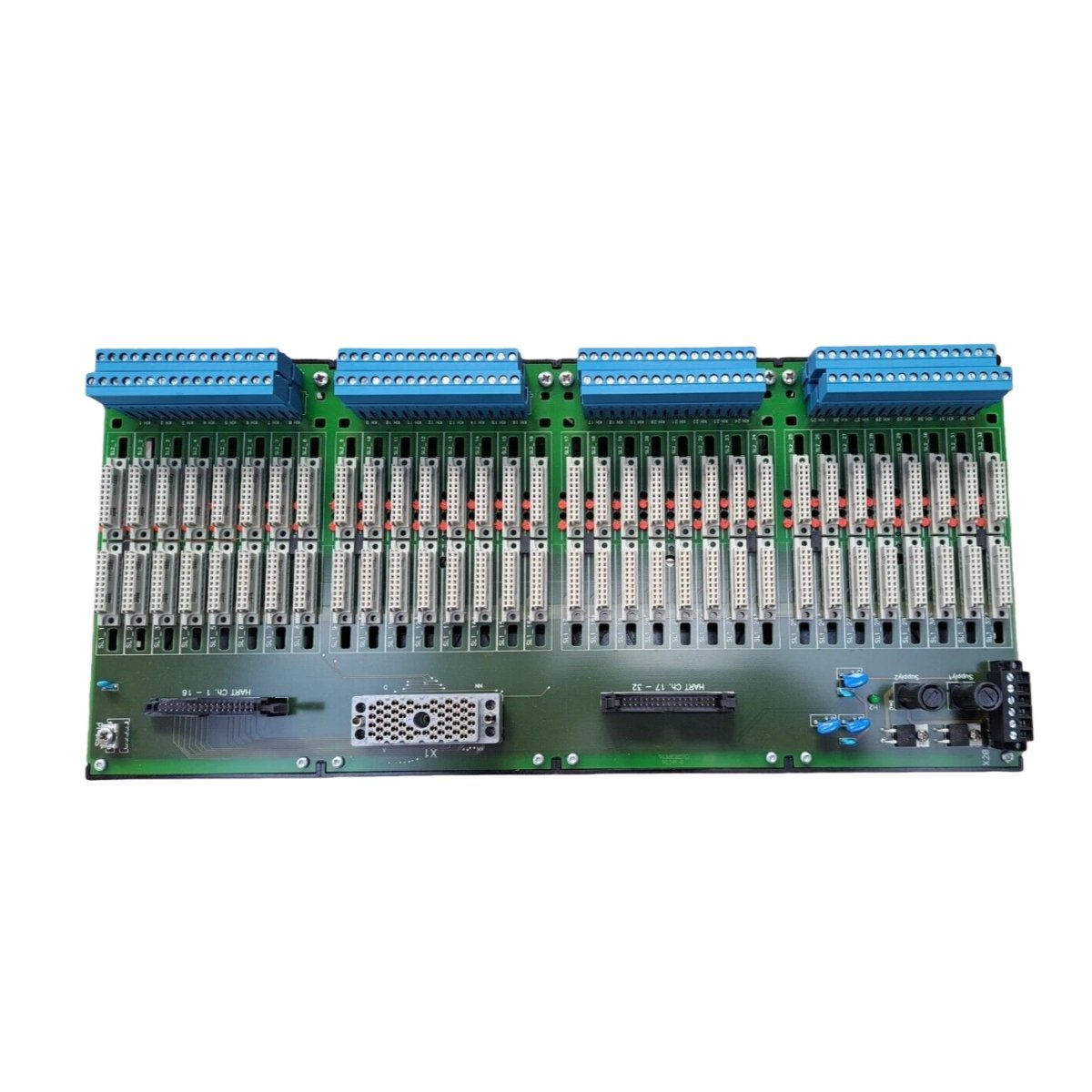

The Pepperl+Fuchs HiCTB32-TRI-AIISS-EL-PL termination board provides precise signal routing for Triconex Tricon series automation systems. It supports up to 64-channel analog input cards (32+32), accommodating HiC2025(A) AI modules. The board ensures reliable operation in both hazardous and non-hazardous areas with its specialized connection interfaces.
Key Features
Supports 32 AI modules with optimized power distribution
Pluggable screw terminals for hazardous areas and 56-pin ELCO sockets for safe zones
Provides 24 V DC nominal supply with reverse polarity protection
Efficient power management with ≤500 mW dissipation without modules
Robust IP20 protection for control cabinets and industrial environments
Compact DIN rail mounting for flexible installation
Technical Specifications
| Parameter | Specification |
|---|---|
| Supported Modules | HiCTB32-TRI-AIISS-EL-PL |
| Channel Count | 64 (32+32) |
| Supply Voltage | 24 V DC |
| Voltage Drop | 0.9 V (series diode included) |
| Ripple | ≤10 % |
| Fusing | 4 A per 32 modules |
| Power Dissipation | ≤500 mW (without modules) |
| Reverse Polarity Protection | Yes |
| Degree of Protection | IP20 |
| Field Connection | Pluggable screw terminals (blue) |
| Control Connection | ELCO 56-pin socket |
| Supply/Fault Output | Pluggable screw terminals (black) |
| Core Cross Section | 0.2–2.5 mm² (24–12 AWG) |
| Housing Material | Polycarbonate, 10% glass fiber reinforced |
Dimensions and Weight
Country of Origin: Germany
Dimensions: 432 × 200 × 163 mm (W × H × D, including module assembly)
Weight: Approx. 1470 g
Installation and Application

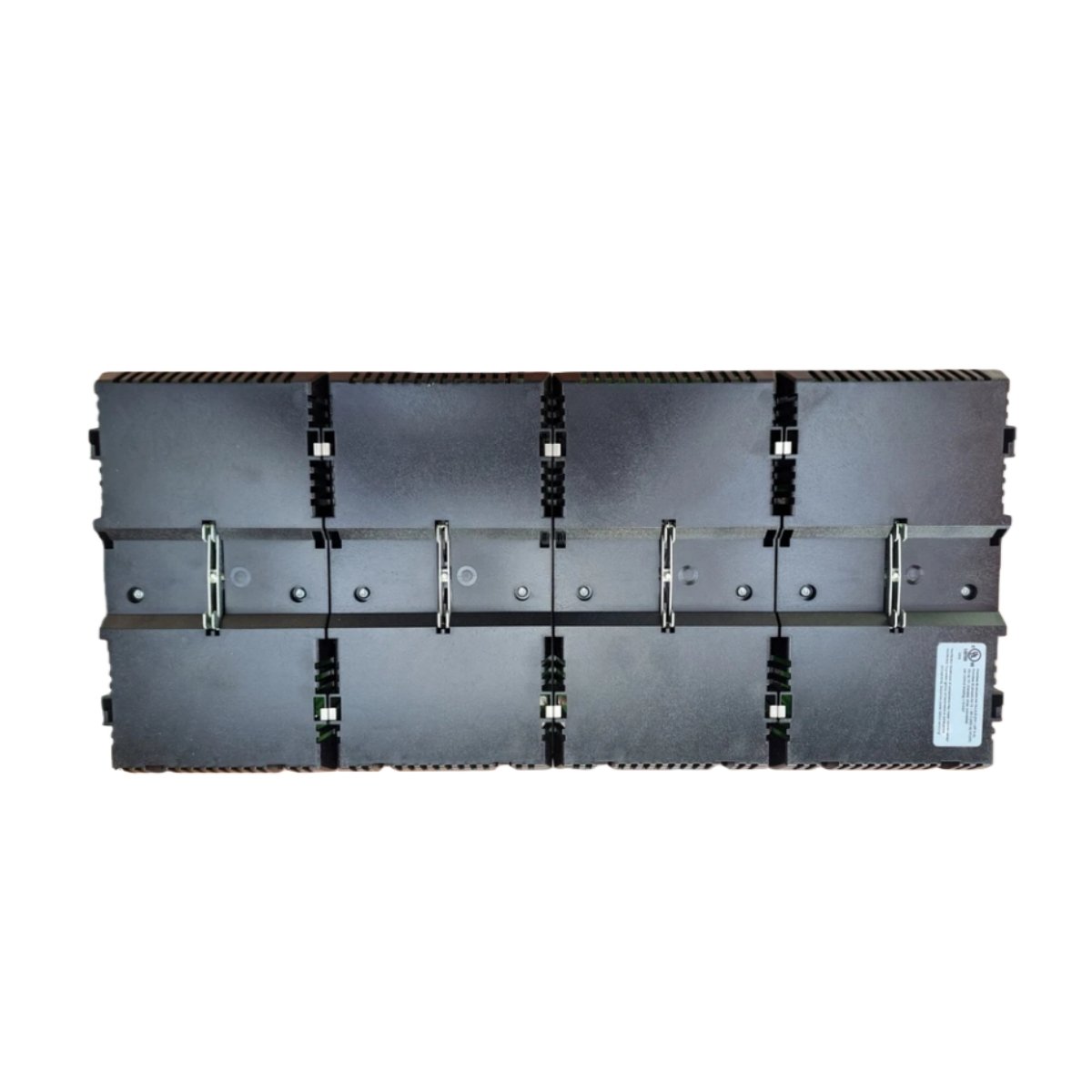

The HiCTB32-TRI-AIISS-EL-PL mounts easily on a 35 mm DIN rail per EN 60715:2001. Its dual-side connection design separates hazardous and safe area wiring efficiently. Ideal for process control applications, this board maintains high signal integrity across multiple AI modules in industrial automation environments.
Details
| Weight | 1.47 kg |
|---|---|
| Dimensions | 432 × 200 × 163 mm |
