Overview

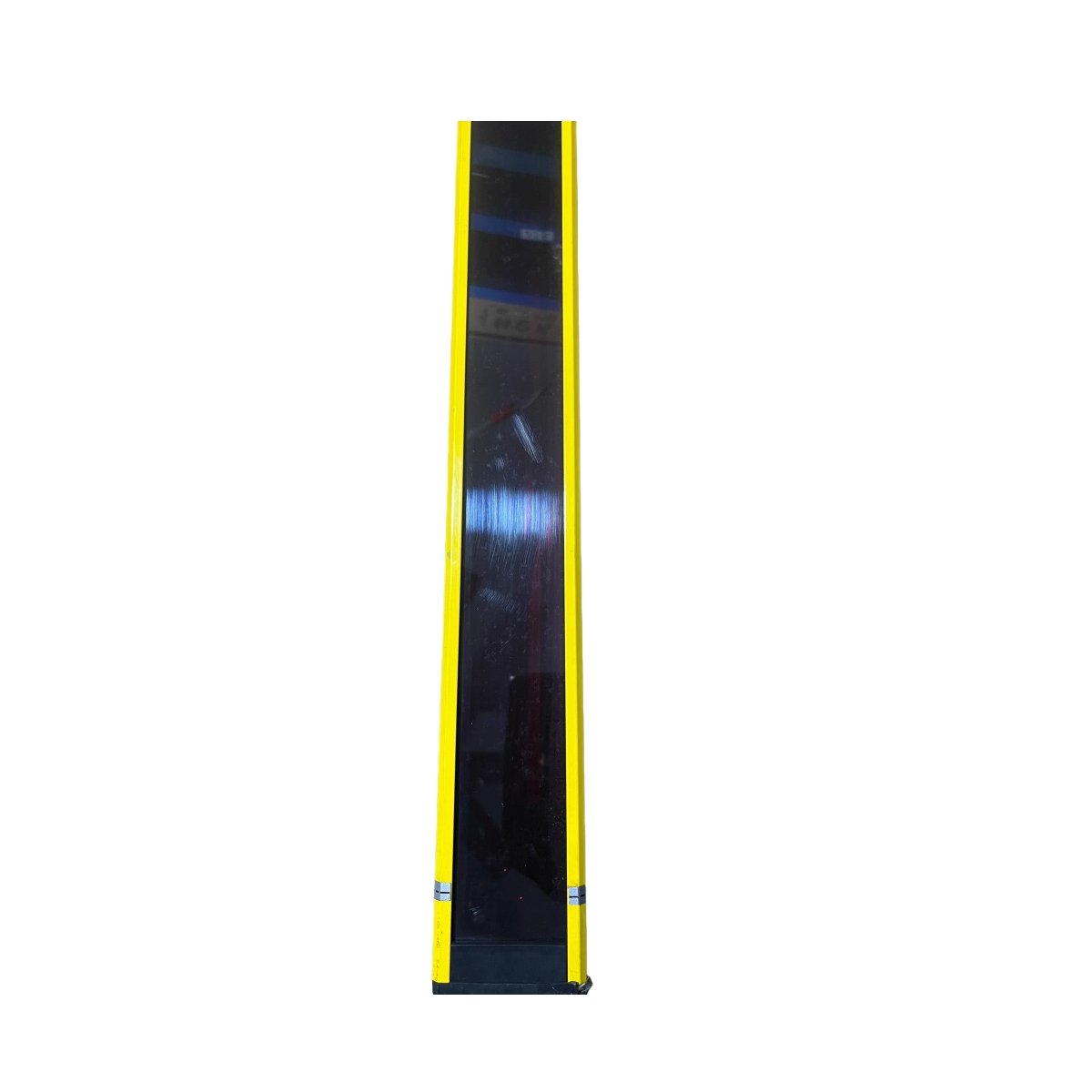

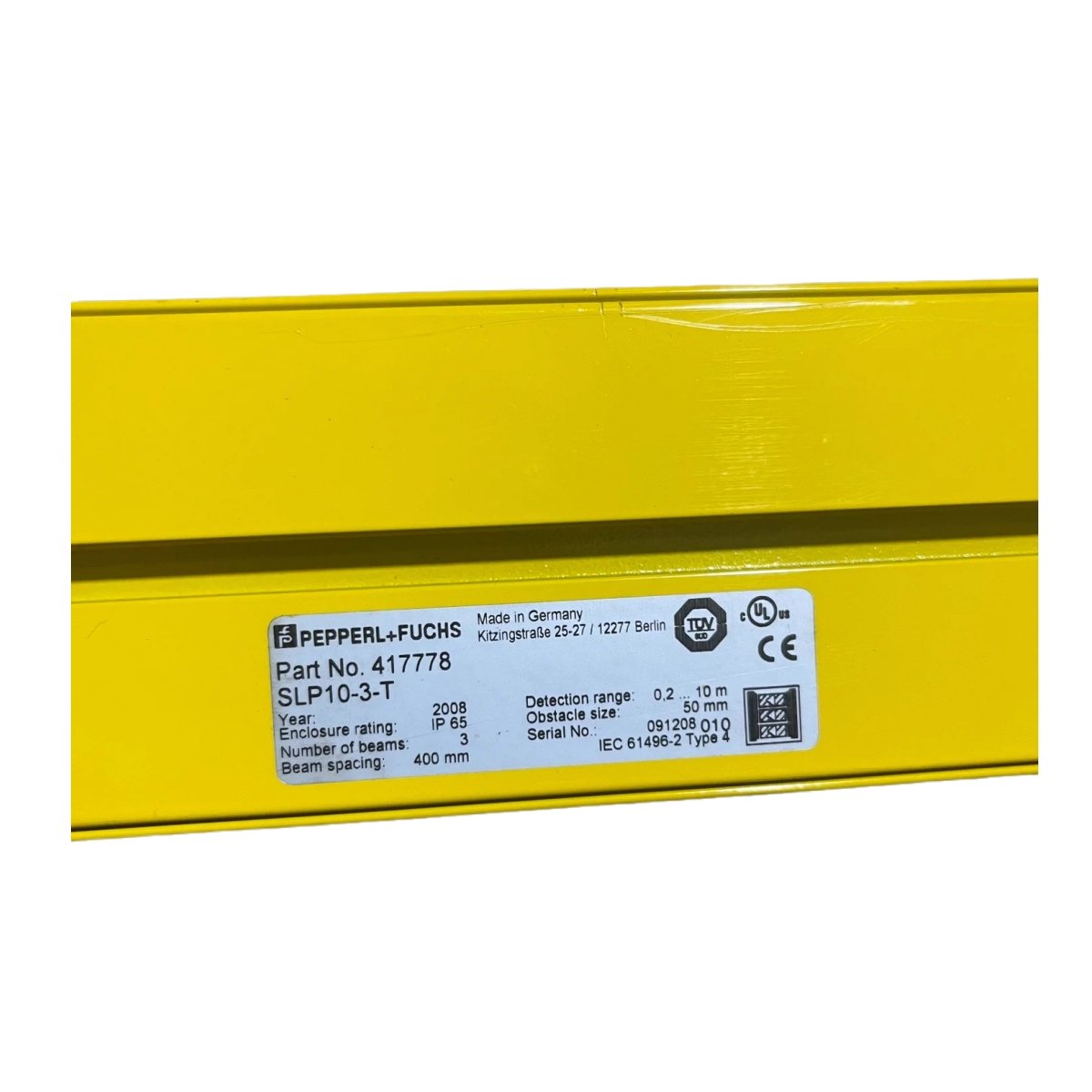

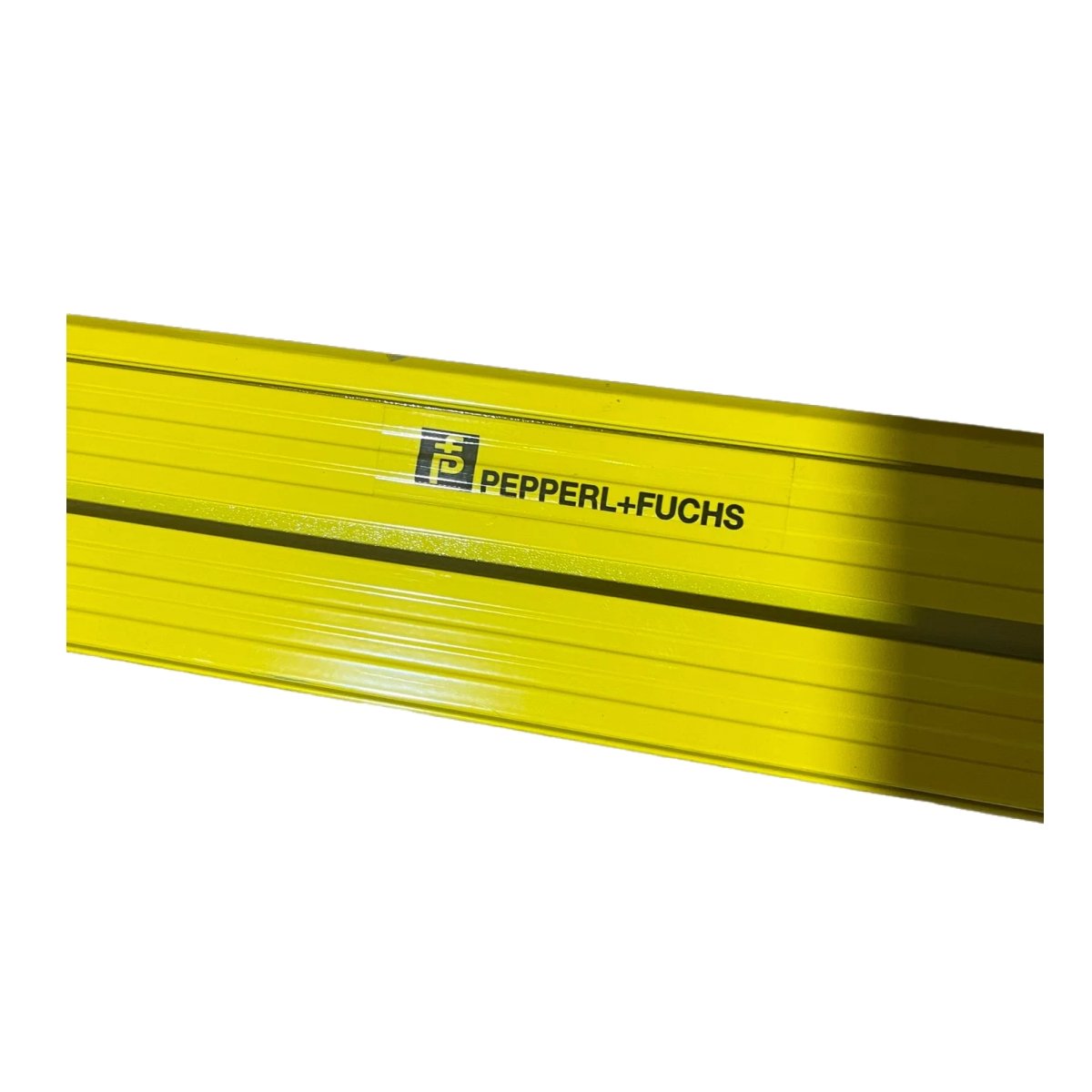

PEPPERL+FUCHS 417778 SLP10-3-T is a high-performance photoelectric safety transmitter, designed for industrial automation applications. It features three-beam resolution and supports muting, ensuring flexible and reliable safety monitoring. The device operates efficiently in harsh environments and complies with EN/IEC 61496-1/-2 Type 4 safety standards.
Key Features
- High-precision SLP10-3-T light curtain transmitter for industrial safety
- Three-beam resolution ensures accurate detection of objects
- Muting capability allows controlled bypass in material handling operations
- EN/IEC 61496-1/-2 Type 4 compliant for maximum safety
- IP65 protection rating provides reliable operation in dusty and wet conditions
- CE and TUV Sud approved for international compliance
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Pepperl+Fuchs |
| Part Number | 417778 |
| Series | SLP Series |
| Product Type | Transmitter |
| Resolution | 3 Beam |
| Operating Range | 0.2–10 m |
| Connection | M16 Cable Gland |
| Muting | Yes |
| Safety Standard | EN/IEC 61496-1/-2 Type 4 |
| Protection Rating | IP65 |
| Approvals | CE, TUV Sud |
| Net Weight | 10.3948 lbs (4.71 kg) |
| Gross Weight | 10.3948 lbs (4.71 kg) |
Dimensions & Weight
- Compact design suitable for standard industrial setups
- Net and gross weight: 10.3948 lbs (4.71 kg)
- Length, width, and height optimized for easy integration (please confirm exact dimensions from manufacturer datasheet if required)
Origin
- Manufactured in Germany by Pepperl+Fuchs
Details
| Weight | 4.71 kg |
|---|---|
| Dimensions | 1500 × 120 × 10 mm |
