Overview

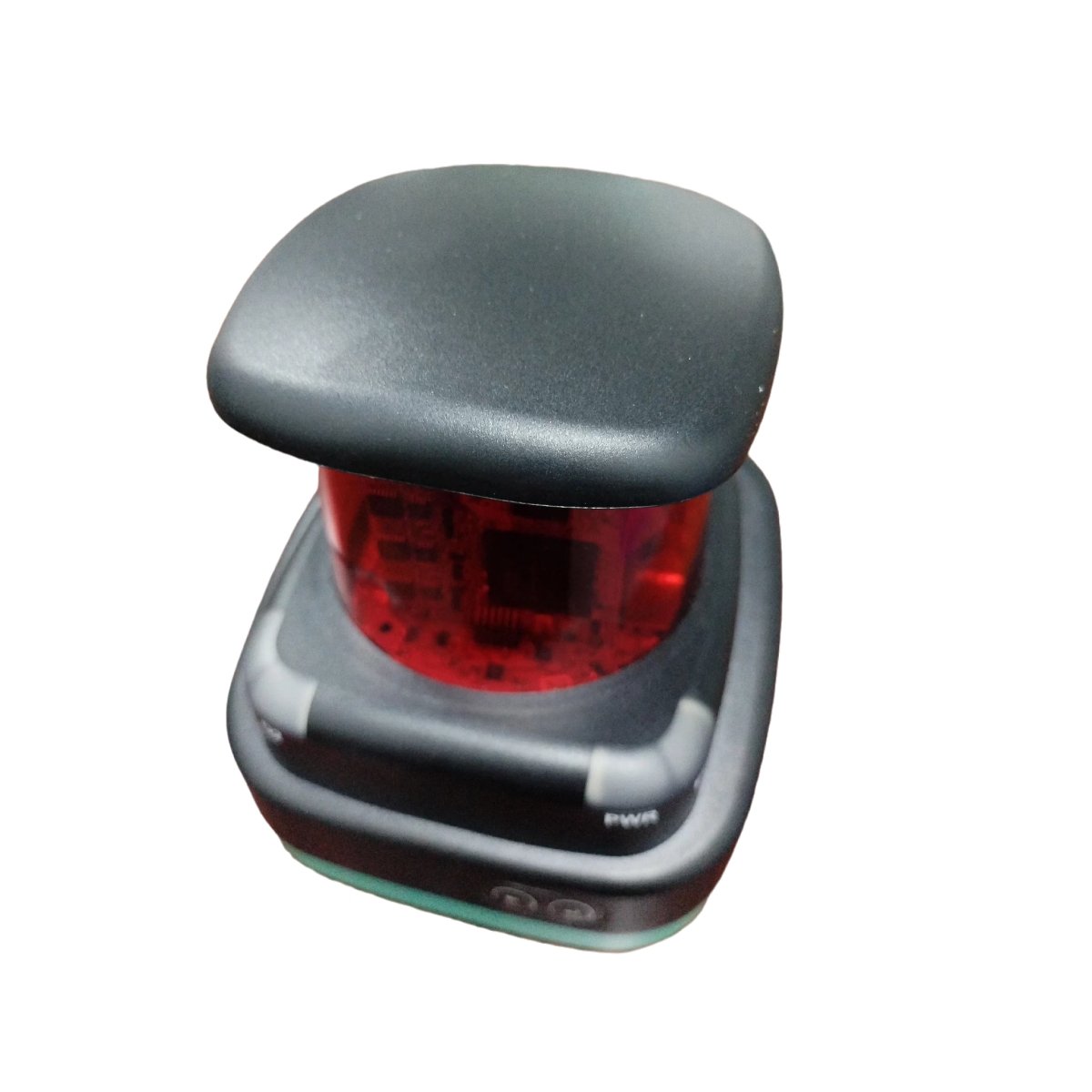

The 275235 OMD30M-R2000-B23-V1V1D-HD-1L by Pepperl+Fuchs is a high-precision 2-D LiDAR sensor, engineered in Germany for industrial automation applications. It delivers outstanding range and angular resolution while using modulated infrared light for reliable object detection. The sensor supports multiple interfaces including LAN, MultiPort, and Power connections.
Key Features
- High operating range up to 30 meters depending on surface reflectivity.
- Exceptional angular resolution for accurate mapping of complex environments.
- Infrared light source with Pulse Ranging Technology (PRT) for precise distance measurement.
- Flexible measured data filtering: maximum, average, median, and reflectivity.
- Fast scan rate between 10 and 50 scans per second, covering 360° field of view.
Technical Specifications

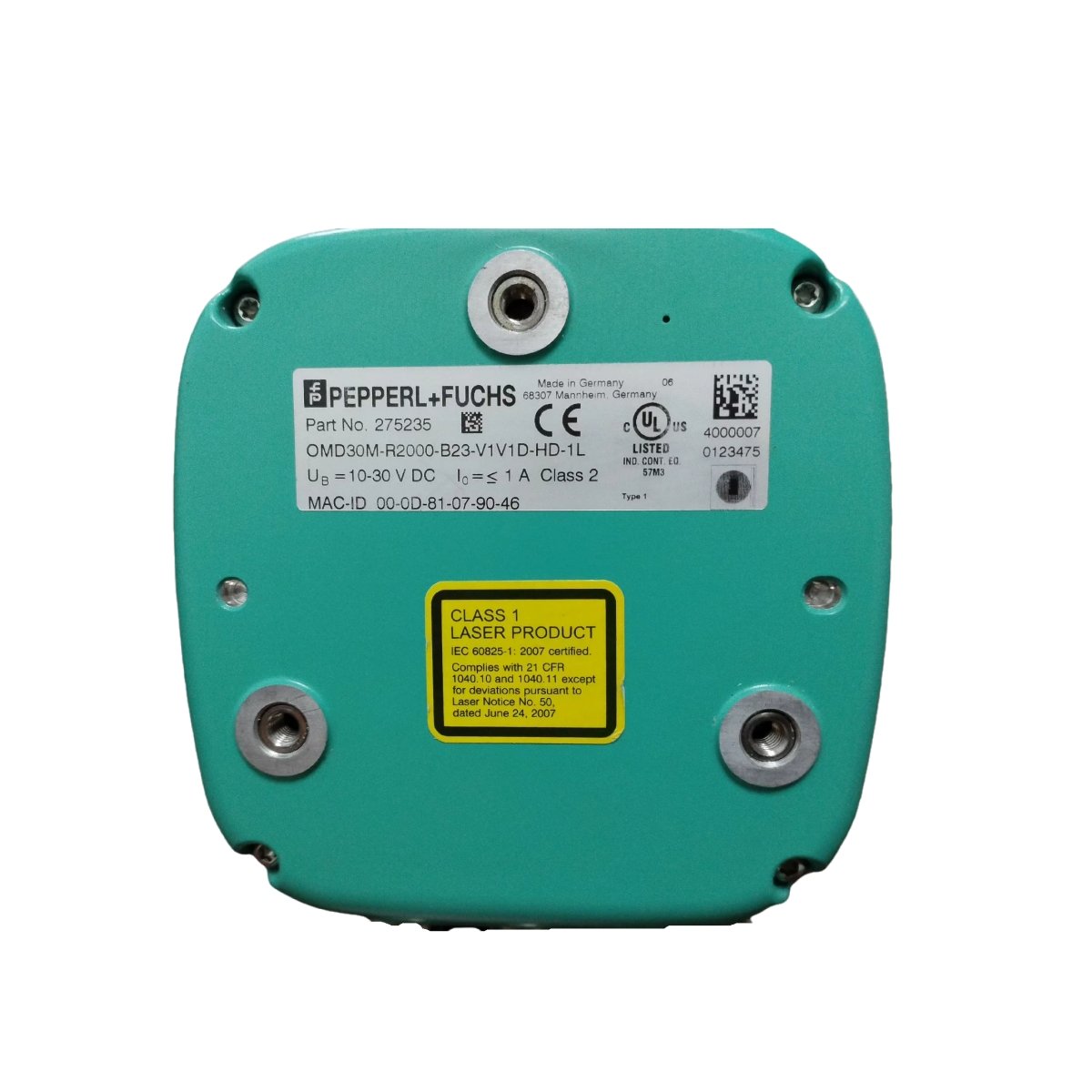

| Parameter | Specification |
|---|---|
| Measuring Range | 0.1–10 m (black 10%), 0.1–30 m (white 90%), 0.1–30 m (reflector) |
| Minimum Reflectivity | 2.5% |
| Light Source | Laser diode |
| Light Type | Modulated infrared light |
| Laser Class | 1 (LASER RADIATION, DO NOT STARE INTO BEAM) |
| Wavelength | 905 nm |
| Beam Divergence | Transversal 2 mrad, Longitudinal 10 mrad |
| Pulse Length | 5 ns |
| Repetition Rate | 84 kHz |
| Maximum Pulse Energy | < 94 nJ |
| Measuring Method | Pulse Ranging Technology (PRT) |
| Scan Rate | 10–50 s⁻¹ |
| Scanning Angle | 360° |
| Light Spot Diameter | 25 mm × 105 mm at 10 m |
| Ambient Light Limit | 80,000 Lux |
| Resolution | 1 mm |
| Degree of Protection | IP65 |

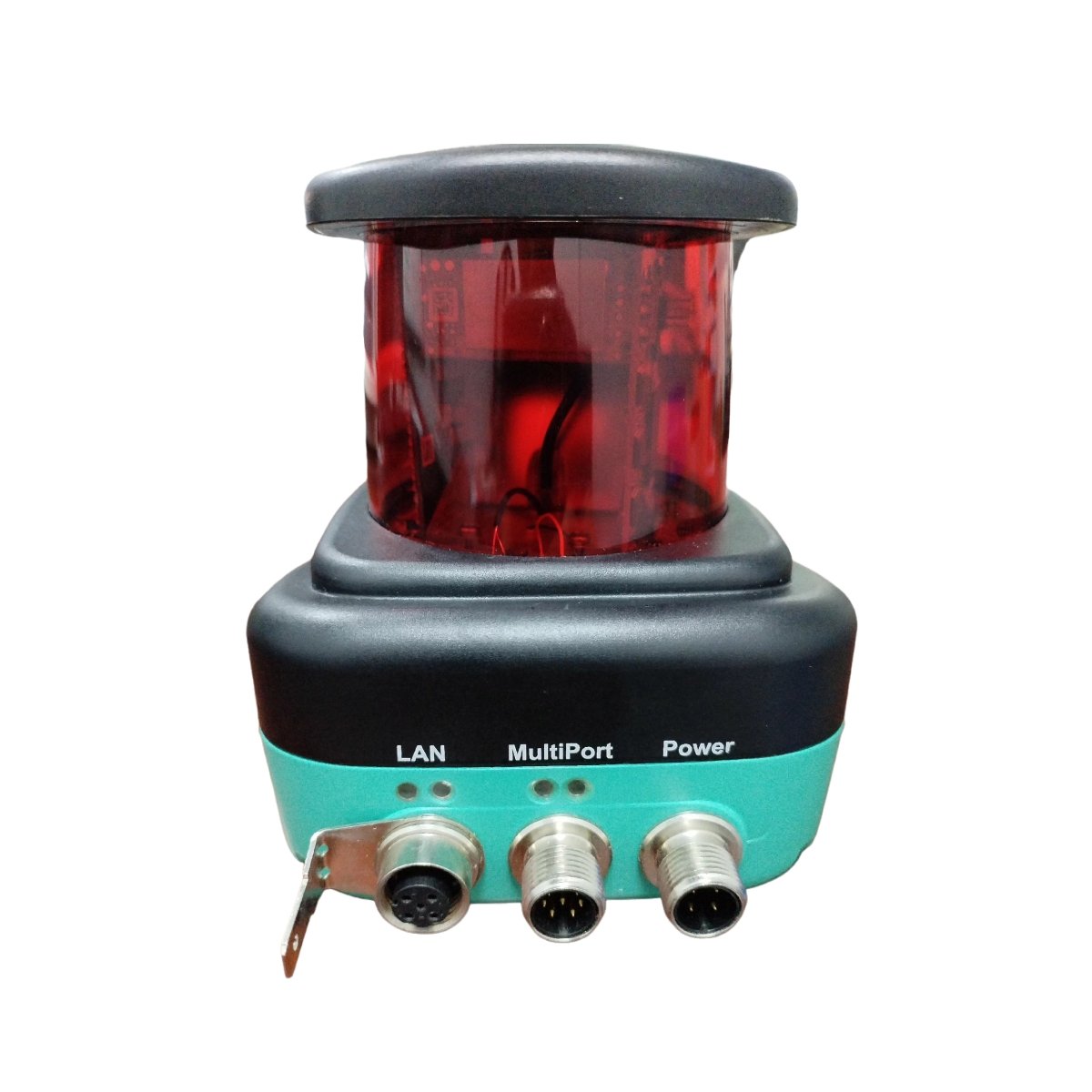

| Connection Interfaces | 4-pin M12x1 (power), 8-pin M12x1 A-coded (MultiPort), 4-pin M12x1 D-coded (LAN) |
| Housing Material | ABS + PC + Aluminum |
| Optical Face | PMMA |
Dimensions and Weight
- Height: 116.5 mm
- Width: 106 mm
- Length: 106 mm
- Mass: approx. 0.8 kg
Origin
- Made in Germany
Details
| Weight | 0.8 kg |
|---|---|
| Dimensions | 116.5 × 106 × 106 mm |
