Overview

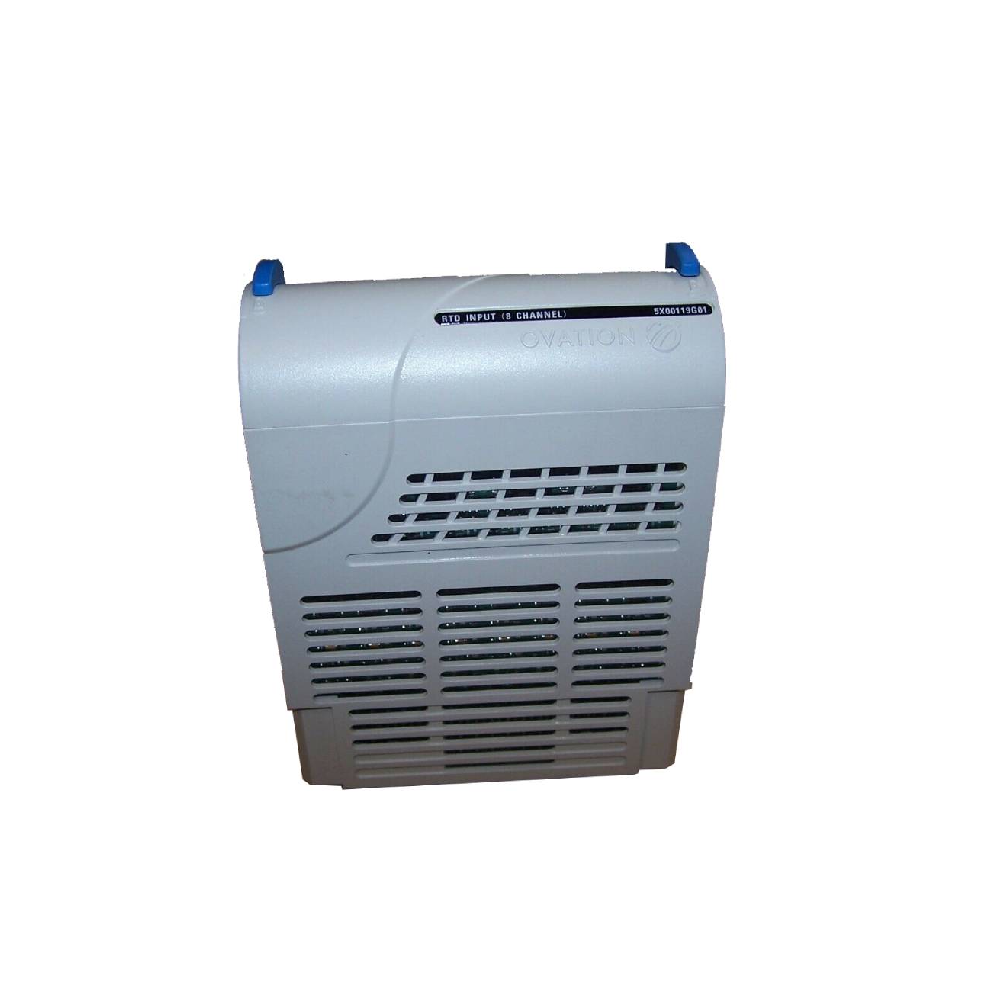

The Ovation 5X00119G01 RTD Input Module converts multiple RTD signals into precise digital data for the Ovation Controller. It integrates seamlessly with the 5X00121G01 Personality Module and ensures high accuracy for industrial temperature monitoring. The module is not compatible with CE Mark-certified systems.
Module Components
- Electronics Module (5X00119G01): Includes a logic PCB (LIA) and a field terminal board (FTD).
- Personality Module (5X00121G01): Contains a single printed circuit board (PTD) for RTD input conversion.
- The modular design allows easy installation and reliable signal processing.
Key Features
- Supports eight RTD input channels.
- Operates in 50 Hz and 60 Hz sampling modes with adaptive rates for 3-wire lead resistance measurement.
- Performs on-demand self-calibration, reducing sampling to 1 sample/second.
- Provides 12-bit resolution and ±0.10% accuracy at 25°C.
- Ensures channel-to-channel isolation at 200V AC/DC and channel-to-logic isolation at 1000V AC/DC.
- Equipped with LEDs for power, communications, internal fault, and channel-specific errors.
Technical Specifications
| Parameter | Specification |
|---|---|
| Channels | 8 RTD inputs |
| Sampling Rate (50 Hz) | 16.67 samples/sec normal, 3/sec in 3-wire mode |
| Sampling Rate (60 Hz) | 20 samples/sec normal, 2/sec in 3-wire mode |
| Self-Calibration | 1 sample/sec when activated |
| Resolution | 12-bit |
| Accuracy | ±0.10% at 25°C |
| Temperature Coefficient | 10 ppm/°C |
| Isolation | Channel-to-channel: 200V AC/DC; Channel-to-Logic: 1000V AC/DC |
| Power Consumption | Typical: 3.6 W; Maximum: 4.2 W |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity | Up to 95%, non-condensing |
| LEDs | Power OK (Green), Communications OK (Green), Internal Fault (Red), CH1–CH8 Errors (Red) |
Applications
The Ovation 5X00119G01 is ideal for industrial systems requiring precise temperature measurements from multiple RTDs. Its robust design ensures accurate, reliable readings, advanced calibration, and high input impedance for demanding control environments.
Details
| Weight | 0.32 kg |
|---|---|
| Country of origin | United States |
