Overview

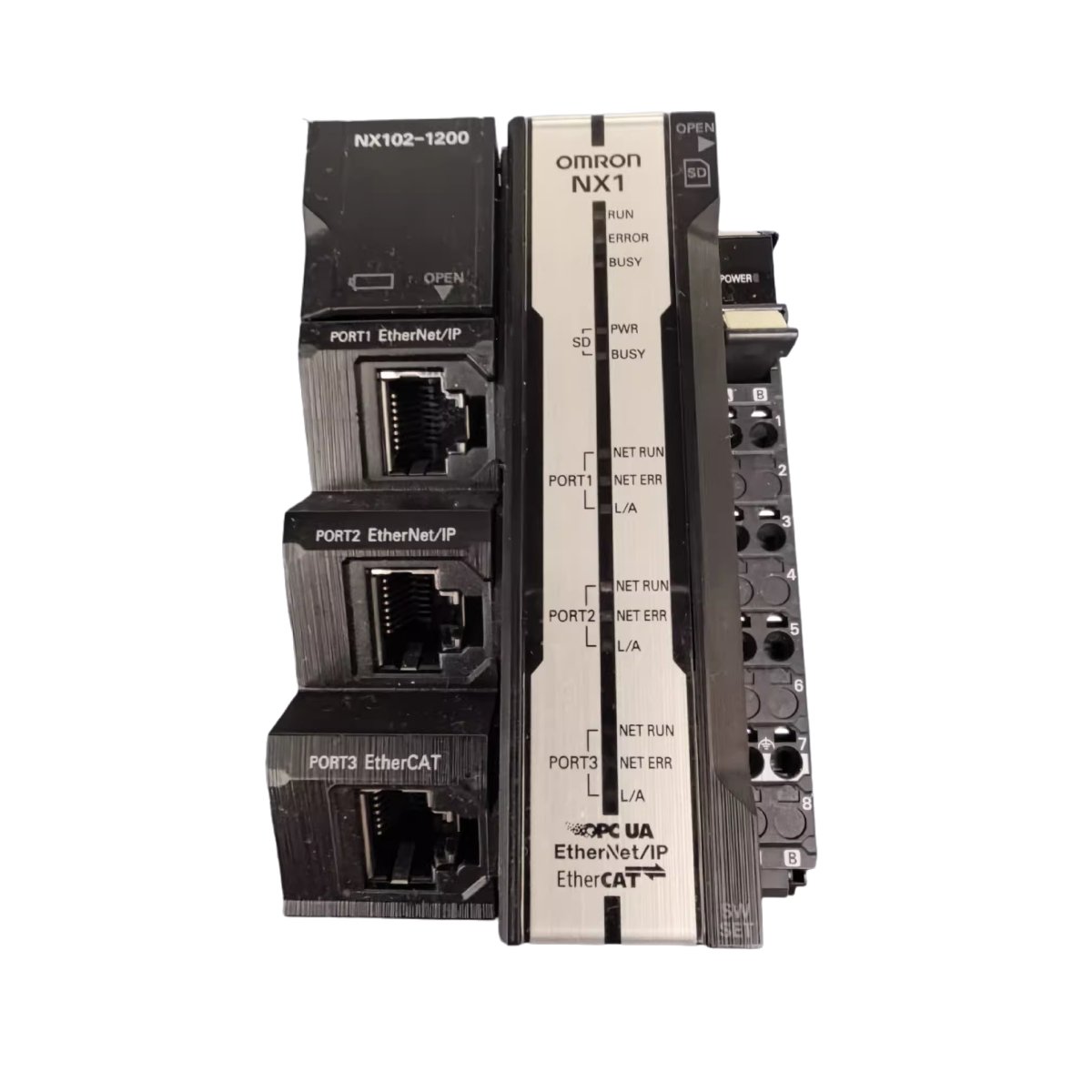

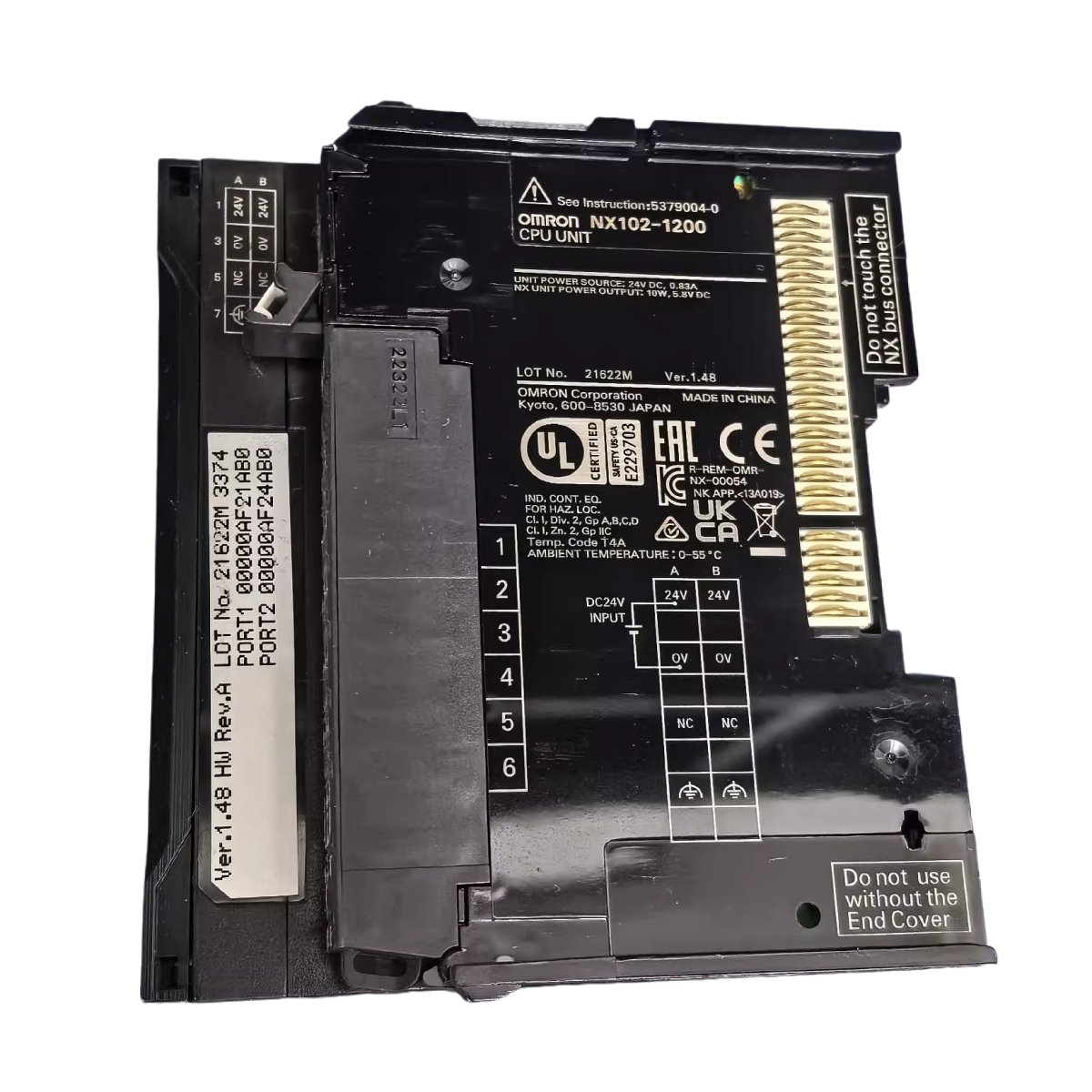

The OMRON NX102-1200 from the Sysmac NX1 Series combines high-speed control, precise motion synchronization, and advanced communication in a compact modular CPU. It delivers integrated motion, logic, and networking functions ideal for smart factory automation. With 5 MB of program memory and 33.5 MB of data memory, it provides ample capacity for complex control systems.
The controller features built-in EtherCAT, EtherNet/IP, and OPC-UA communication ports, allowing seamless data exchange across multiple industrial networks. Engineers can connect up to 64 EtherCAT nodes, including 8 servo axes and 4 point-to-point (PTP) axes, ensuring high-speed synchronization and flexible motion control.
Key Features
- Integrated motion, logic, and safety control in one compact CPU
- Handles up to 8 synchronized axes and 4 PTP axes with real-time performance
- Supports EtherCAT Master, EtherNet/IP, and Ethernet TCP/IP communication

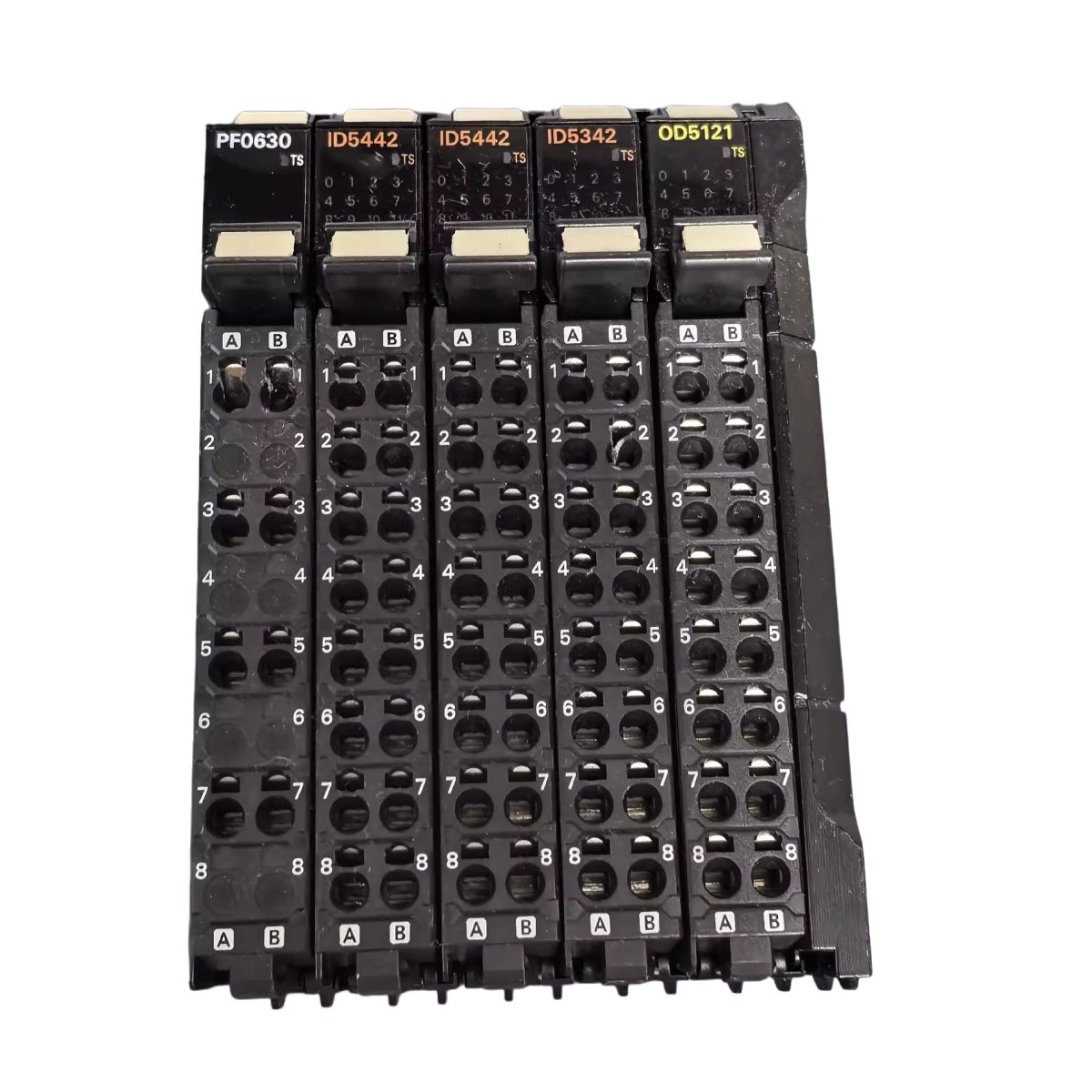

- Expands to 32 NX I/O units and 64 remote I/O nodes
- Designed for 1 ms primary task cycle for precise timing
- Built-in OPC-UA enables direct connection to IT and MES systems
- Durable design ensures reliable operation in industrial environments
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | NX102-1200 |
| Manufacturer | OMRON |
| Series | Sysmac NX1 |
| Controller Functionality | Motion, Sequence, Position, and OPC-UA Control |
| Program Memory | 5 MB |
| Data (Variables) Memory | 33.5 MB |
| Primary Task Cycle Time | 1 ms |
| Max Synchronous Axes | 8 |
| Max PTP Axes | 4 |
| Total Axes (Incl. Virtual) | 15 |
| Communication Ports | EtherCAT Master, EtherNet/IP, Ethernet TCP/IP |
| Serial Communication Options | RS-232C, RS-422, RS-485 |
| Max Remote I/O Nodes | 64 |
| I/O System | NX I/O Bus |
| Max Expansion Units | 32 |
| Height | 100 mm |
| Width | 66 mm |
| Depth | 100 mm |
| Weight | 470 g |
| Power Supply Voltage | 24 VDC |
| Operating Temperature | 0 °C to +55 °C |
| Storage Temperature | −25 °C to +70 °C |
| Mounting Type | DIN Rail |
Performance and Connectivity
The NX102-1200 optimizes system performance with real-time synchronization across motion axes and sensors. Its integrated communication architecture allows fast, deterministic data transfer via EtherCAT, while EtherNet/IP and OPC-UA enable open connectivity to higher-level systems. Engineers can streamline data flow from factory floor to enterprise level without additional gateways.
Its compact size, lightweight build, and modular scalability make the NX102-1200 a perfect fit for applications in robotics, packaging, assembly, and precision manufacturing.
Origin, Dimensions & Weight
- Origin: Japan
- Dimensions: 100 mm × 66 mm × 100 mm
- Weight: 470 g
Details
| Weight | 0.47 kg |
|---|---|
| Dimensions | 100 × 66 × 100 mm |
