Overview

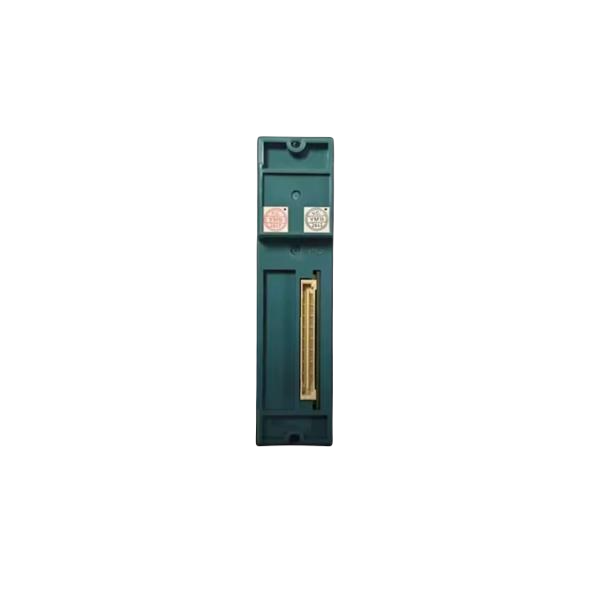

The Yokogawa NFDV561-P51 is a 64-channel digital output module in the NFDV561 series, designed for high-performance industrial automation systems. It delivers isolated 24 V DC output for reliable control and supports multiple fallback options to maintain safe operation during system events.
Key Features
- Provides 64 digital output channels with 24 V DC voltage and 100 mA load per channel.
- Supports HOLD, OFF, or NO fallback actions to configure outputs consistently.
- Compact and lightweight design (0.3 kg) ensures easy installation and handling.
- Features MIL connector cable for secure and efficient external connections.
- Responds quickly with ≤3 ms status output response time.
- Operates with field power supply range of 20.4–26.4 V DC.
Technical Specifications
| Specification | Value |
|---|---|
| Model | NFDV561-P51 |
| Series | NFDV561 |
| Number of Output Channels | 64 |
| Rated Applied Voltage | 24 V DC |
| Load Voltage | 24 V DC, 100 mA |
| Field Power Supply Voltage Range | 20.4–26.4 V DC |
| Output ON Voltage Max | 2 V DC |
| Leak Current Max (OFF) | 0.1 mA |
| Output Format | Current sink |
| Max Load Current | 100 mA/channel, 26.4 V |
| Withstanding Voltage | 2000 V AC (output to system), 500 V AC (between commons per 16-ch) |
| Functions | Status output |
| Output Fallback Options | HOLD, OFF, NO |
| Output Response Time | ≤3 ms |
| Max Current Consumption | 780 mA (5 V DC), 120 mA (24 V DC) |
| Weight | 0.3 kg |
| External Connection | MIL connector cable |
Models and Suffix Codes
- Model: NFDV561 Digital Output Module (64-channel, 24V DC, Isolated)
- Suffix Code: NFDV561-P51
- -P: Standard type
- 5: General-purpose type without explosion protection
- 1: ISA Standard G3 option
Notes
- Each module requires an external 24 V DC field power supply.
- Connect a diode when driving a DC relay.
- The system detects fallback actions within 4 seconds.
- Choose HOLD, OFF, or NO consistently for all channels.
- MIL connector voltage withstand depends on cable electrical specifications.
