Overview

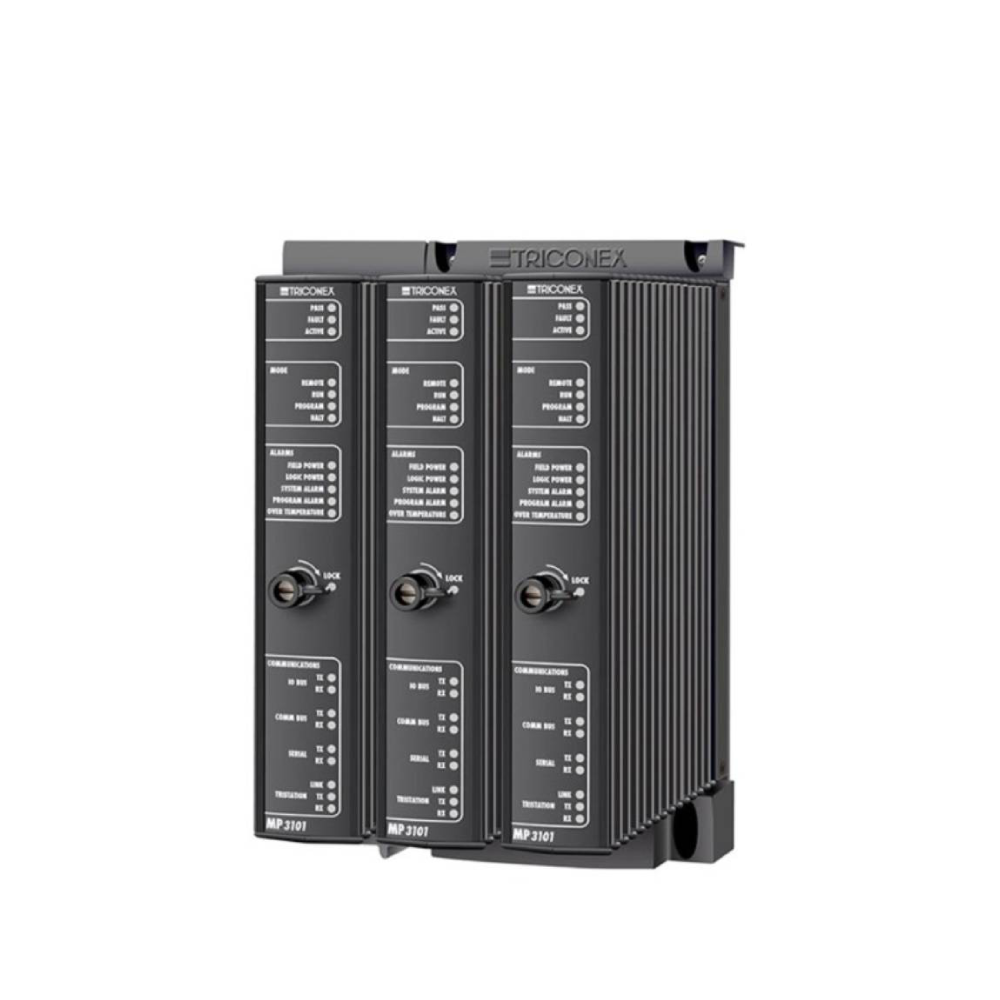

The Triconex MP3101 S2 Main Processor Module forms a critical part of the Trident system, designed for safety-critical and high-availability applications. Each Trident system requires at least one MP baseplate containing three independent Main Processor (MP) modules. Each MP operates as an independent channel, performing system executive functions and managing I/O operations to ensure reliable, fault-tolerant performance.

Processor and Firmware Components

• System Executive (SX): Controls application execution, system diagnostics, TriBus communication, voting, and TriStation/Modbus interactions.
• Input/Output Executive (IOX): Manages I/O communication, including ASIC interfacing, I/O control, and diagnostics.

Main Processor Specifications

Application Processor:

• Processor: Motorola MPC860, 32-bit, 50 MHz
• Flash PROM: 6 MB, CRC-protected for SX, IOX, and control application storage
• DRAM: 16 MB for control applications, program execution, and SOE data with byte parity
• NVRAM: 8 KB, CRC-protected for retentive variables

Clock Accuracy:

• Power On: 1 sec/day typical, 2.2 sec/day max
• Power Off (battery-backed): 2.2 sec/day typical, 9.2 sec/day max
• Battery: ½ AA lithium, 15-year predicted life

Communication Interfaces:

• TriBus: 25 Mbps, CRC-protected, 32-bit + parity DMA
• TriStation Port: 10BaseT Ethernet, RJ-45
• Modbus Port: RS-232/485 DTE, DB-9-pin
• Debug Port: RJ-12 shared between SX and IOX
• Communication Bus: RS-485, 2 Mbps HDLC
• Alarm Contacts: Redundant, normally closed

Input/Output Processor Specifications

I/O Processor:

• Processor: Motorola MPC860, 32-bit, 50 MHz
• DRAM: 16 MB for IOX execution, with byte parity
• Shared Memory: 128 KB for SX-IOX communication, with byte parity
• Diagnostic Bus: 2 Mbps HDLC for MP channel I/O diagnostic communication
• I/O Bus: RS-485, 2 Mbps HDLC
• Debug Port: RJ-12 connector, shared with SX debug

Power Specifications

• Logic Power Nominal Voltage: 24 V DC
• Operational Range: 19.2 – 30 V DC (+5% AC ripple)
• Maximum Input Voltage: 33 V DC
• Power Dissipation: 8 W max
• Short Circuit Current Limit: 2.4 A max
• Functional-Earth-to-Logic-Ground Isolation: 0 V

Communication Ports

Modbus Port:

• Connector: DB-9-pin DTE, shielded
• Max Cable Length: RS-232 (15 m), RS-485 (1.2 km)
• Supported Rates: 1200–115.2 Kbps
• Protocols: Slave, RTU mode, optional parity, 1 stop bit
• Isolation: 500 V DC

Network Port:

• Connector: 10BaseT RJ-45, shielded
• Max Cable Length: 100 m (Cat5 twisted-pair)
• Protocols: TriStation, TSAA, Triconex Peer-to-Peer
• Isolation: 500 V DC

System & IO Executive Debug Ports:

• Connector: RJ-12
• Max Cable Length: 8 m
• Protocol: RS-232, 9600 bps, ASCII
• Isolation: 500 V DC
