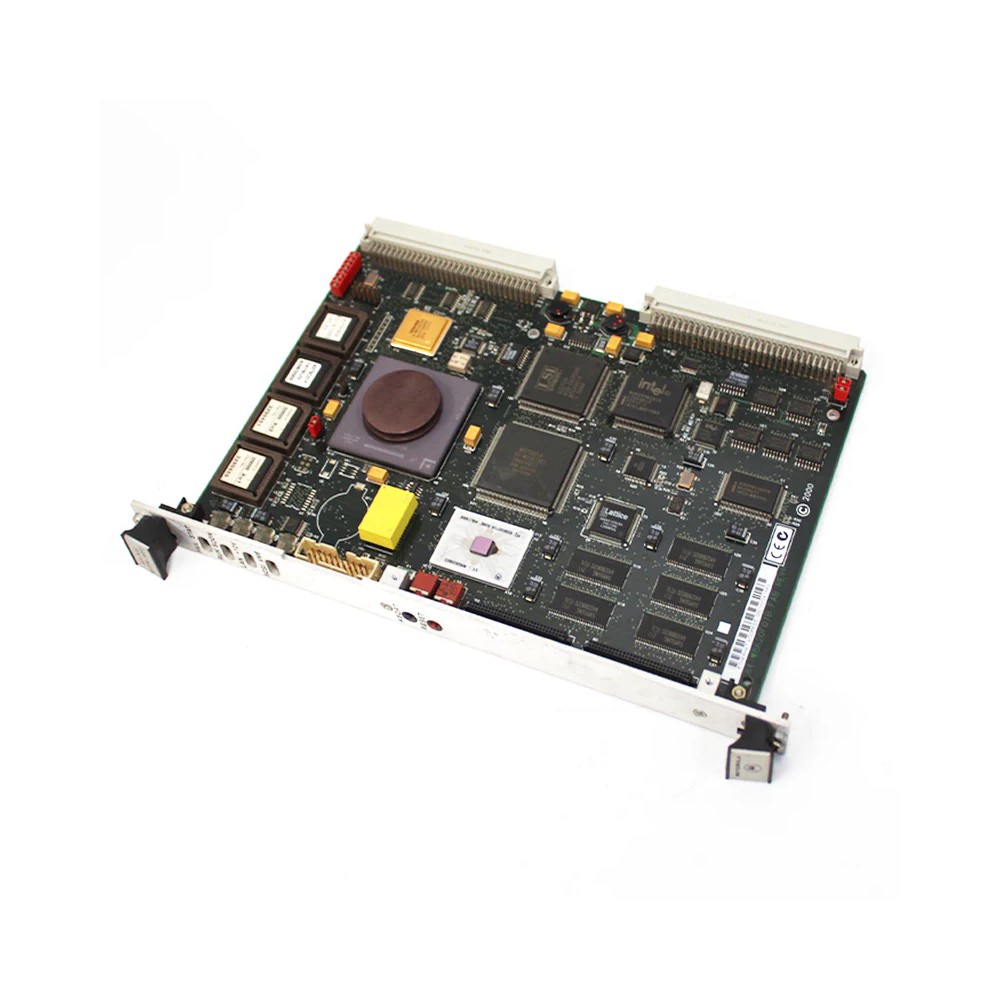

The Motorola MVME167PA-36SE single-board computer delivers high-performance processing for scientific and industrial applications. It features a 33MHz MC68040 processor with integrated FPU and 64MB SDRAM, enabling real-time, memory-intensive operations. This board supports full 32-bit VMEbus interfaces, high-speed DMA transfers, and extensive I/O including Ethernet, SCSI, and multiple serial ports.
Key Features
- MC68040 33MHz 32-bit processor with 8KB cache, MMU, and FPU for high-speed computations.
- 64MB SDRAM, 4MB ROM/EPROM, and 8KB NVRAM with real-time clock/calendar support.
- Full 32-bit VMEbus interface with DMA and D64 burst cycles for fast data transfer.
- Ethernet and SCSI interfaces for networking and high-speed storage connections.
- Four 32-bit timers and one watchdog timer for precise system control and reliability.
- Petra ASIC enhances memory subsystem performance and simplifies board design.
- Compatible with M68000 family software for seamless system integration.
Technical Specifications
| Specification | Details |
|---|---|
| Model | MVME167PA-36SE |
| Processor | MC68040, 33MHz, 32-bit, 8KB cache, FPU, MMU |
| Memory | 64MB SDRAM, 4MB ROM/EPROM, 8KB NVRAM |
| Bus Interface | Full 32-bit VMEbus, DMA, D64 burst cycles, IEEE 1014 compliant |
| I/O Interfaces | Ethernet, SCSI, 4 serial ports, 1 parallel port |
| Timers | Four 32-bit timers, 1 watchdog timer |
| ASIC | Petra ASIC for improved memory performance |
| Power Consumption | 23 watts typical |
| Applications | Scientific computation, industrial automation, telecommunications, aerospace, embedded real-time systems |
Applications
The Motorola MVME167PA-36SE is ideal for industrial automation, aerospace, telecommunications, and embedded scientific computing. Its high-speed processing, extensive memory, and versatile I/O interfaces support real-time monitoring, control systems, and data-intensive applications.
Details
| Weight | 0.316 kg |
|---|---|
| Dimensions | 191 × 102 × 58 mm |
