Overview

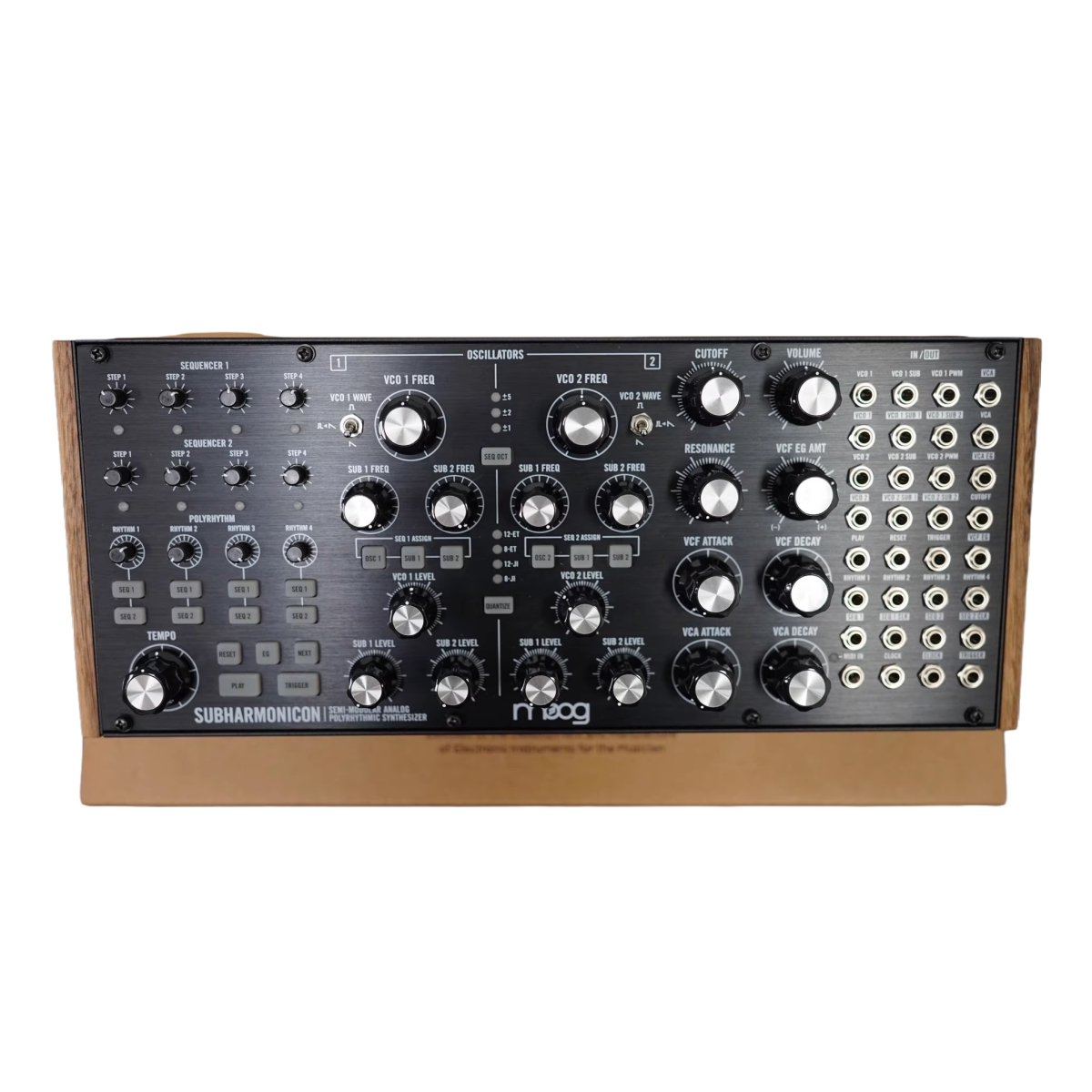

The Moog Subharmonicon combines a 6-tone analog sound engine with multi-layered rhythm generators, allowing musicians to explore subharmonics, polyrhythms, and complex tonal relationships. Its semi-modular architecture provides flexibility for patching, sequencing, and experimental sound design. Musicians can connect external devices through the extensive patchbay or utilize its built-in sequencers for dynamic composition.
This synthesizer features a self-oscillating ladder filter, dual analog sequencers, and multiple subharmonic oscillators, delivering rich, evolving textures ideal for electronic music, sound design, and educational purposes.
Key Features
- Semi-modular analog synthesizer with 6-tone sound engine and polyrhythmic capabilities
- Dual 4-step sequencers with selectable quantization and synchronization options
- Four internal rhythm generators dividing tempo from 1–16, supporting 20–3,000 BPM
- Self-oscillating 4-pole low-pass ladder filter for precise tonal shaping
- 32 x 3.5 mm patchbay jacks (17 inputs, 15 outputs) for versatile routing
- MIDI input (3.5 mm Type A) and headphone/instrument outputs for direct use
- Compact design suitable for desktop, rack, or Eurorack integration
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | Subharmonicon |
| Sound Engine | Analog, 6-tone with subharmonics |
| Oscillators | VCO 1 + SUB1/2, VCO 2 + SUB1/2 |
| Filter | 4-Pole Low-Pass Ladder, Self-Oscillating, −24 dB/Octave |
| Envelopes | VCA EG (Attack, Decay), VCF EG (Attack, Decay) |
| Sequencers | 2 Analog Sequencers, 4 Steps each |
| Clock | 20–3,000 BPM, MIDI Clock, EXT Clock, Tempo Division 1–16 |
| Patchbay | 32 x 3.5 mm Jacks (17 Inputs, 15 Outputs) |
| MIDI | 3.5 mm Input (Type A included) |
| Audio Output | 1⁄4” TRS Headphone, 1⁄4” TS Instrument |
| Power Supply | 100–240 VAC, 50–60 Hz, +12 VDC, 1200 mA Wall Adapter |
| Power Consumption | Typical 4.8 W |
| Eurorack Specs | 360 mA max from +12 VDC, 60HP, 26 mm Module Depth |
Dimensions & Weight
| Type | Imperial | Metric |
|---|---|---|
| Product | 12.57 W x 4.2 H x 5.24 D in | 31.93 W x 10.67 H x 13.31 D cm |
| Weight | 3.5 lbs | 1.58 kg |
| Shipping | 15 W x 8 H x 9 D in | 38.1 W x 20.32 H x 22.86 D cm |
| Shipping Weight | 6 lbs | 2.72 kg |
Applications
The Moog Subharmonicon is ideal for:
- Experimental electronic music and sound design
- Music education on polyrhythms and analog synthesis
- Integration with Eurorack systems and modular setups
- Desktop or stage performance requiring complex rhythmic patterns
Origin
- Country of Origin: USA
Details
| Weight | 2.72 kg |
|---|---|
| Dimensions | 381 × 203.2 × 228.6 mm |
