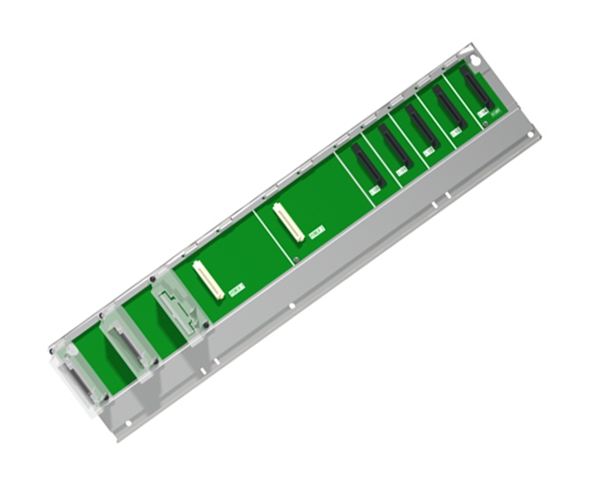

The Mitsubishi Electric Q65WRB belongs to the MELSEC-Q Series and provides additional capacity for advanced automation systems. This extension base unit increases flexibility by offering five I/O slots and dual power supply options, ensuring stable performance in complex industrial environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Mitsubishi Electric |
| Series | MELSEC-Q Series |
| Model | Q65WRB |
| Type | Extension Base Unit |
| I/O Slots | 5 |
| Power Supply Slots | 2 |
| Dimensions (W x H x D) | 439 mm x 98 mm x 44.1 mm |
| Weight | 0.52 kg |
| CE Compliance | Yes |
| UL/cUL Compliance | Yes |
| EAC Compliance | Yes |
| UKCA Compliance | Yes |
| Shipping Approvals | ABS, BV, DNV GL, LR, NK, RINA |
| RoHS Compliance | Yes |
| REACH Substance | Yes (CAS 7439-92-1, 12060-00-3) |
| Dangerous Goods | No |
| WEEE Category | B2B |
Product Design and Build
The Q65WRB features a compact yet strong design, measuring 439 mm in width and only 44.1 mm in depth. At 0.52 kg, it balances durability with ease of installation. Its construction ensures compatibility with demanding environments while keeping system expansion straightforward.
Packaging Information
Mitsubishi designed the Q65WRB with sustainability in mind. The unit ships in cardboard packaging weighing 295 g, with only 10 g of additional plastic, making the total packaging weight 305 g.
Compliance and Safety
The Q65WRB meets international standards, including CE, UL/cUL, EAC, and UKCA. It also holds approvals from major marine classification societies such as ABS, DNV GL, and RINA. These certifications demonstrate reliability for both land-based and marine automation projects.
Application Benefits
By integrating the Mitsubishi Electric Q65WRB, automation systems gain flexibility, additional I/O capacity, and dual power supply slots. These features ensure reliable operation across diverse industries, from manufacturing plants to marine control systems.
Details
| Weight | 0.52 kg |
|---|
