Overview

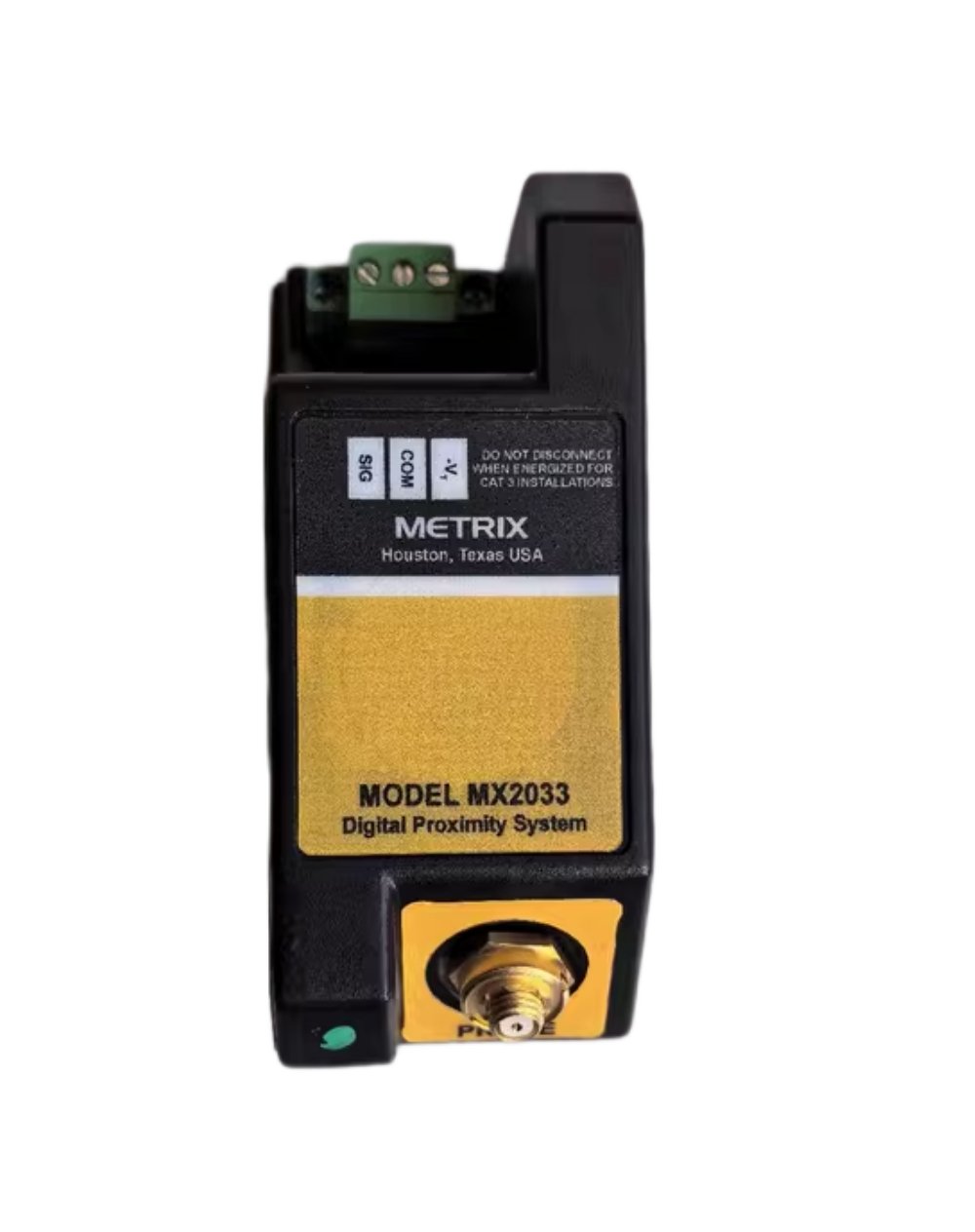

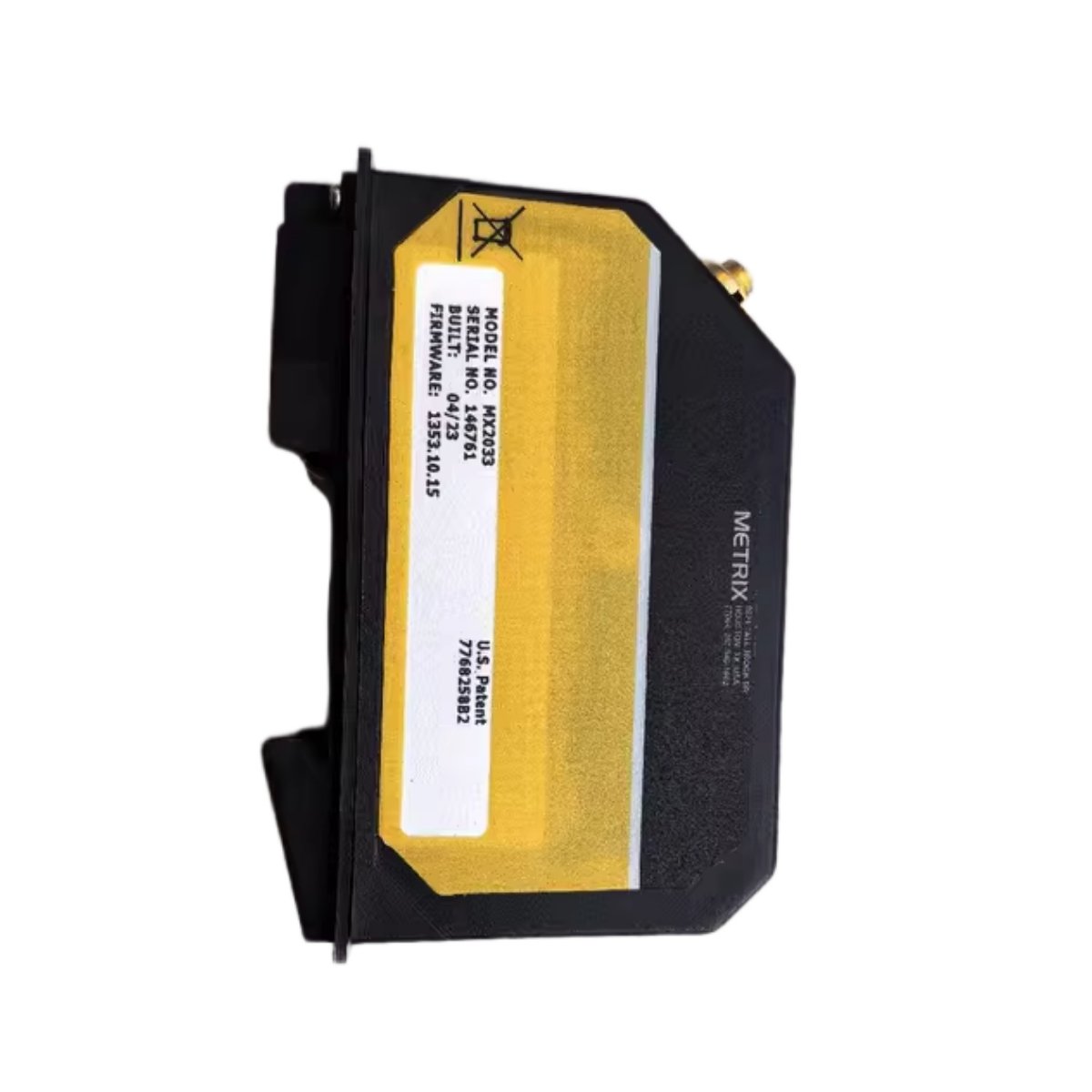

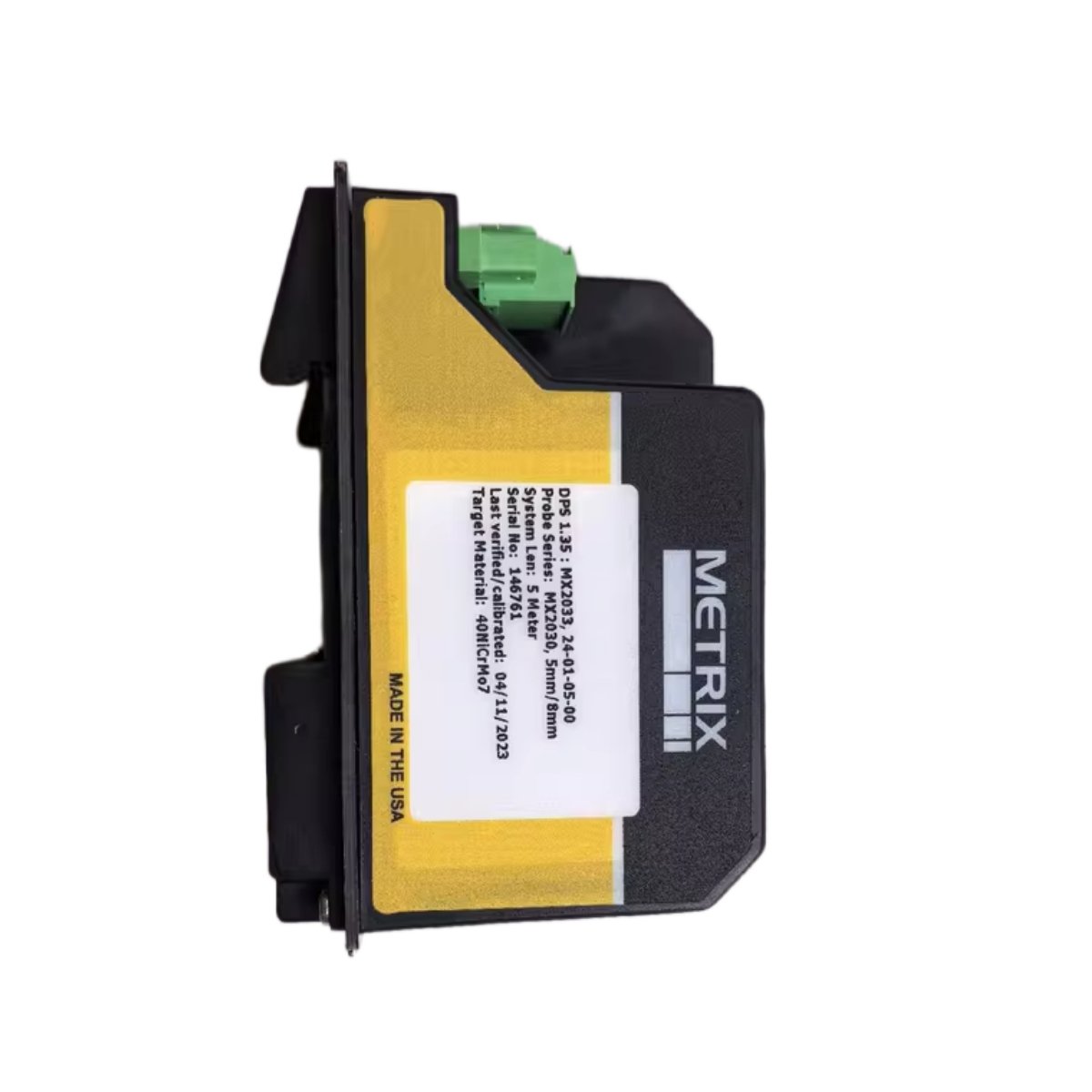

The Metrix MX2033-24-01-05-00 3-Wire Driver belongs to the advanced Digital Proximity System (DPS) series, engineered for modern vibration and displacement measurement applications. This versatile driver combines digital configurability with API 670 compliance, allowing engineers to fine-tune proximity measurement systems in the field using Metrix DPS configuration software.
With a wide dynamic range, field programmability, and compatibility with a variety of probes and cables, the MX2033 simplifies maintenance, reduces inventory, and ensures reliable vibration monitoring in critical rotating machinery.
Main Features
- Field Configurable: Easily adjust scale factors, cable lengths, and target material parameters using Metrix DPS software.
- Wide Frequency Response: Operates efficiently across 0 Hz to 10 kHz, supporting both low- and high-speed machinery.
- Universal Compatibility: Interfaces seamlessly with Metrix proximity probes, cables, and third-party vibration monitoring systems.
- Flexible Scale Factors: Supports 100 mV/mil (3.93 mV/µm) to 200 mV/mil (7.87 mV/µm), covering ranges from 20–180 mils (500–4500 µm).
- API 670 Compliant: Delivers precision output in mV/µm or mV/mil format for industry-standard vibration analysis systems.
- Digital Adjustability: Configure shaft material types, clearance limits, probe compatibility, and pulse response directly in the field.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | MX2033-24-01-05-00 |
| Output Signal | mV/µm or mV/mil, per API 670 standard |
| Scale Factor Range | 100 mV/mil (3.93 mV/µm) – 200 mV/mil (7.87 mV/µm) |
| Measurement Range | 20–180 mils (500–4500 µm) |
| Frequency Response | 0 Hz – 10 kHz |
| Excitation Voltage | -24 VDC |
| System Length | Trimmable field configuration |
| Compatibility | Metrix and third-party probes/cables |
| Features | Spike suppression, cross-talk elimination, speed pulse adjustment |
| Probe Type | 8 mm probe with extended range |
| Compliance | API Standard 670 |
| Configuration Interface | Digital via Metrix DPS Software |
Applications
The Metrix MX2033 3-Wire Driver is ideal for use in:
- Fluid-film bearing machines
- Compressors and turbines
- Oil & gas, petrochemical, and power generation equipment
- Condition monitoring and vibration analysis systems
Its digital configurability enables engineers to adapt a single driver for multiple machine types, reducing the need for different spare parts while maintaining measurement precision.
Origin, Dimensions, and Weight
- Manufacturer: Metrix Instrument Co.
- Country of Origin: USA
- Dimensions: 88 mm × 25 mm × 25 mm
- Weight: Approximately 0.2 kg
Details
| Weight | 0.2 kg |
|---|---|
| Dimensions | 88 × 25 × 25 mm |
