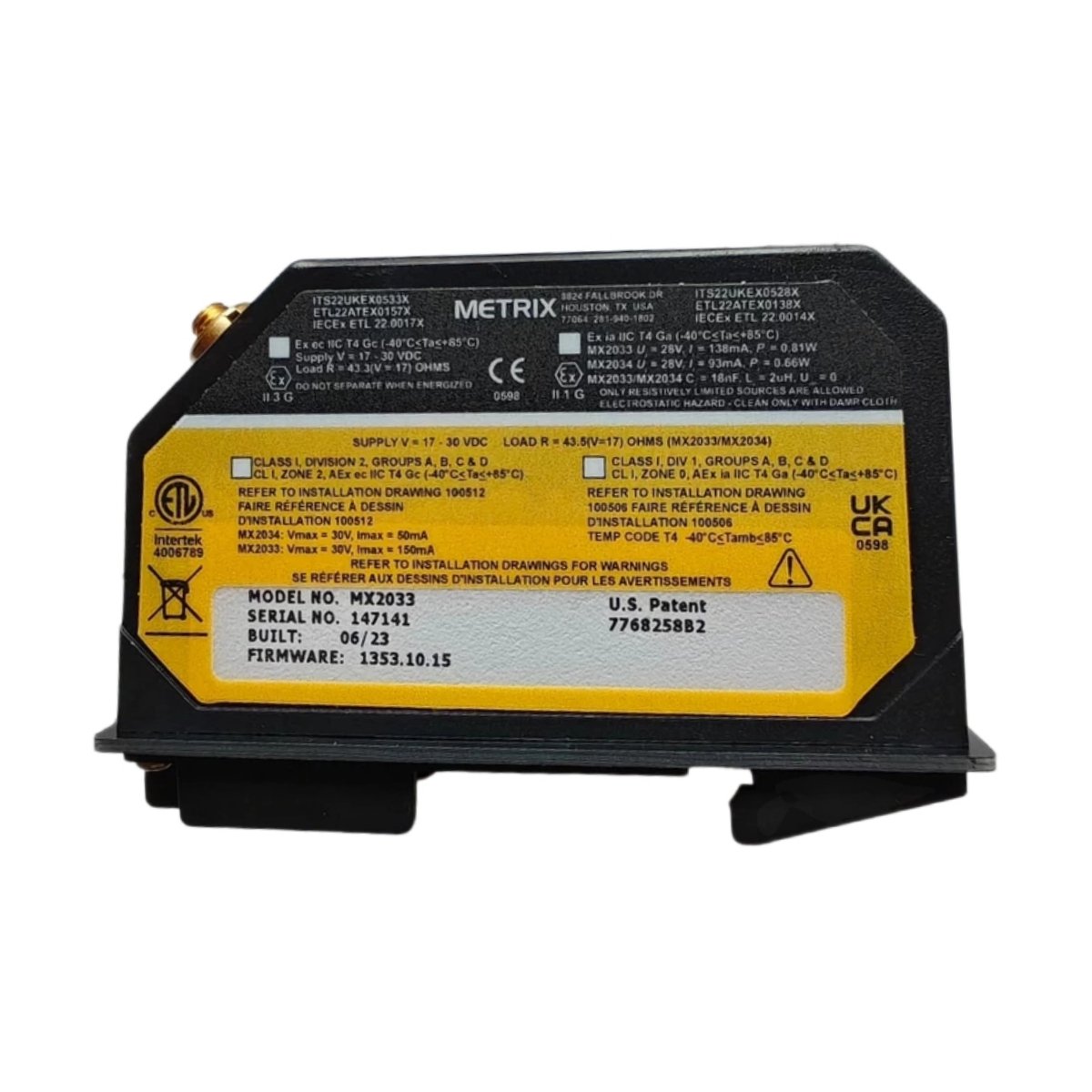

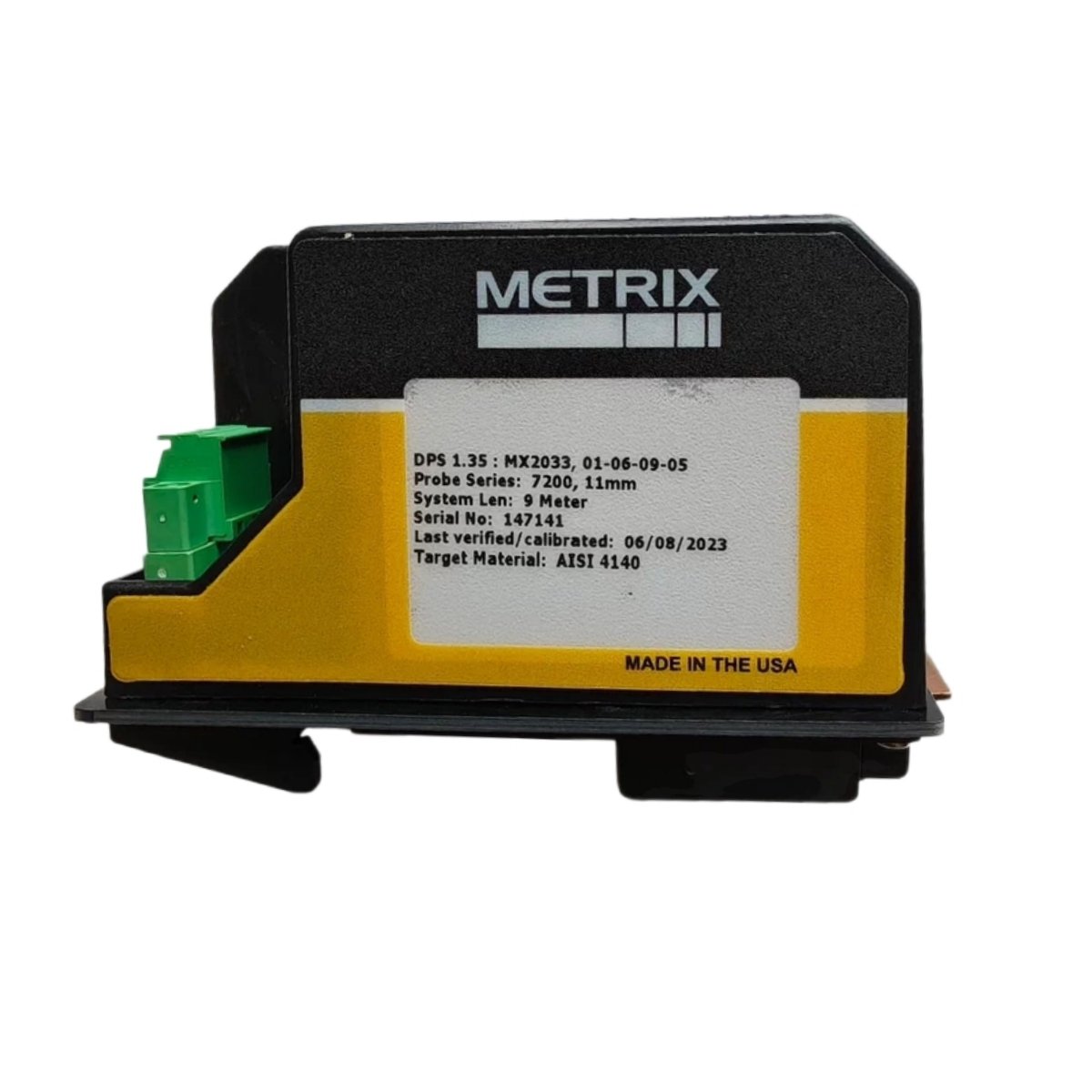

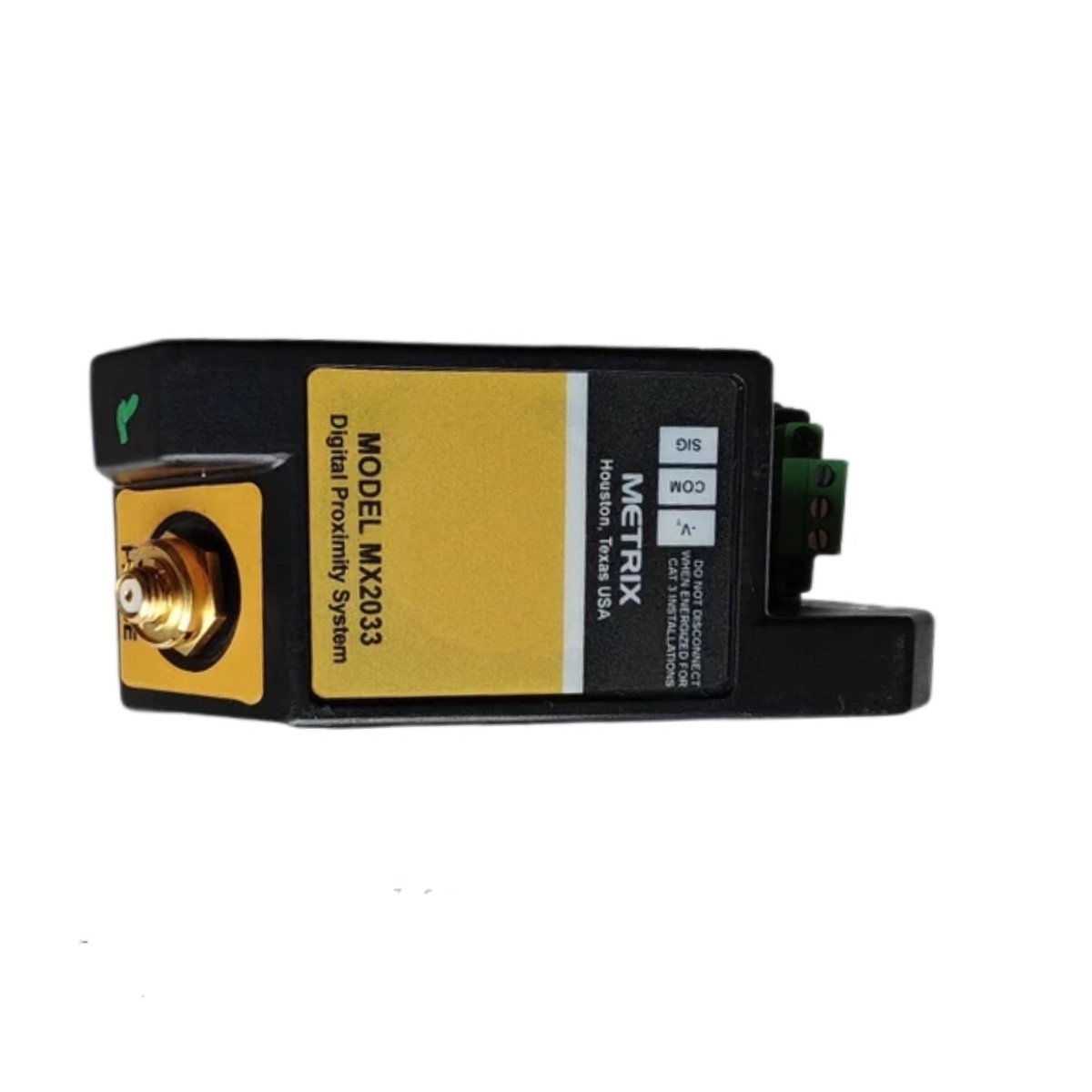

The Metrix MX2033-01-06-09-05 is a high-performance 3-wire probe driver designed for precise vibration, thrust, and speed measurement in rotating machinery. As part of the Metrix MX2030 / MX8030 proximity probe system, this driver ensures stable signal conditioning and excellent linearity across a wide operating range. It integrates seamlessly with BN 7200, BN 3300, and BN 3300XL probe systems, offering flexible compatibility for multiple monitoring applications.
Reliable Signal Conditioning for Industrial Applications
The MX2033 driver delivers accurate and stable output under varying conditions. It supports multiple calibration materials such as AISI-SAE 4140, 17-4 Stainless Steel, and Inconel 625, ensuring measurement precision across different target materials. The unit features digital performance curve technology, enhancing linearity and repeatability for demanding vibration monitoring systems.
Wide Operating Range and Rugged Design
Engineered for harsh industrial environments, the Metrix MX2033 operates from −40°C to +85°C and maintains performance in 95% non-condensing humidity. It uses a durable metallic case that resists corrosion and supports long service life. With a low power consumption of 10 mA at −9 V, the driver efficiently powers transducer systems without overheating or voltage drift.
Flexible System Configuration
Users can select system lengths from 5 to 20 feet, depending on measurement requirements. The MX2033 supports optional Zener or galvanic barriers for hazardous locations, complying with ETL, ATEX, and IECEx standards. For maximum protection, it works with MTL 7796, MTL 5531, or Pepperl+Fuchs KFD2-VR4-Ex1.26 isolation barriers.
Technical Specifications
| Parameter | Description |
|---|---|
| Manufacturer | Metrix Instrument Co. |
| Model | MX2033-01-06-09-05 |
| Product Type | 3-Wire Probe Driver |
| Compatible Systems | MX2030, MX8030, BN 3300, BN 7200 |
| Calibration Material Options | AISI-SAE 4140, 17-4 SS, Incoloy 901, Monel K500, Inconel 625, 316 SS |
| Power Supply (No Barrier) | −17 VDC to −30 VDC |
| Power Supply (Zener Barrier) | −23 VDC to −26 VDC |
| Power Supply (Galvanic Barrier) | −20 VDC to −30 VDC |
| Maximum Current Draw | 10 mA |
| Output Voltage | −9 V |
| Full Scale Range | Up to 400,000 RPM (speed measurement) |
| System Length Options | 5 m, 7 m, 9 m, 15 ft, 20 ft |
| Operating Temperature | −40°C to +85°C |
| Storage Temperature | −40°C to +85°C |
| Relative Humidity | 95%, non-condensing |
| Case Material | Metal (corrosion-resistant) |
| Connector Torque (Max) | 0.565 N·m (5 in-lb) |
| Recommended Torque | Finger tight |
| Hazardous Area Approvals | ETL, ATEX Zone 2, IECEx |
| Recommended Barriers | MTL 7796, MTL 5531, P&F KFD2-VR4-Ex1.26 |
| Patent | US 7,768,258 (Digital performance curve technology) |
Origin, Dimensions, and Weight
- Country of Origin: USA
- Dimensions: 89 mm × 25 mm × 25 mm (approx.)
- Weight: 247 g (8.7 oz)
Key Features
- High-precision 3-wire probe driver for vibration and speed monitoring
- Supports multiple target calibration materials for accurate measurement
- Digital curve technology ensures superior linearity and repeatability
- Operates in extreme temperature and humidity environments
- Compatible with MX2030, MX8030, and BN series probe systems
- Certified for hazardous applications under ATEX, ETL, and IECEx
Details
| Weight | 0.247 kg |
|---|---|
| Dimensions | 89 × 25 × 25 mm |
