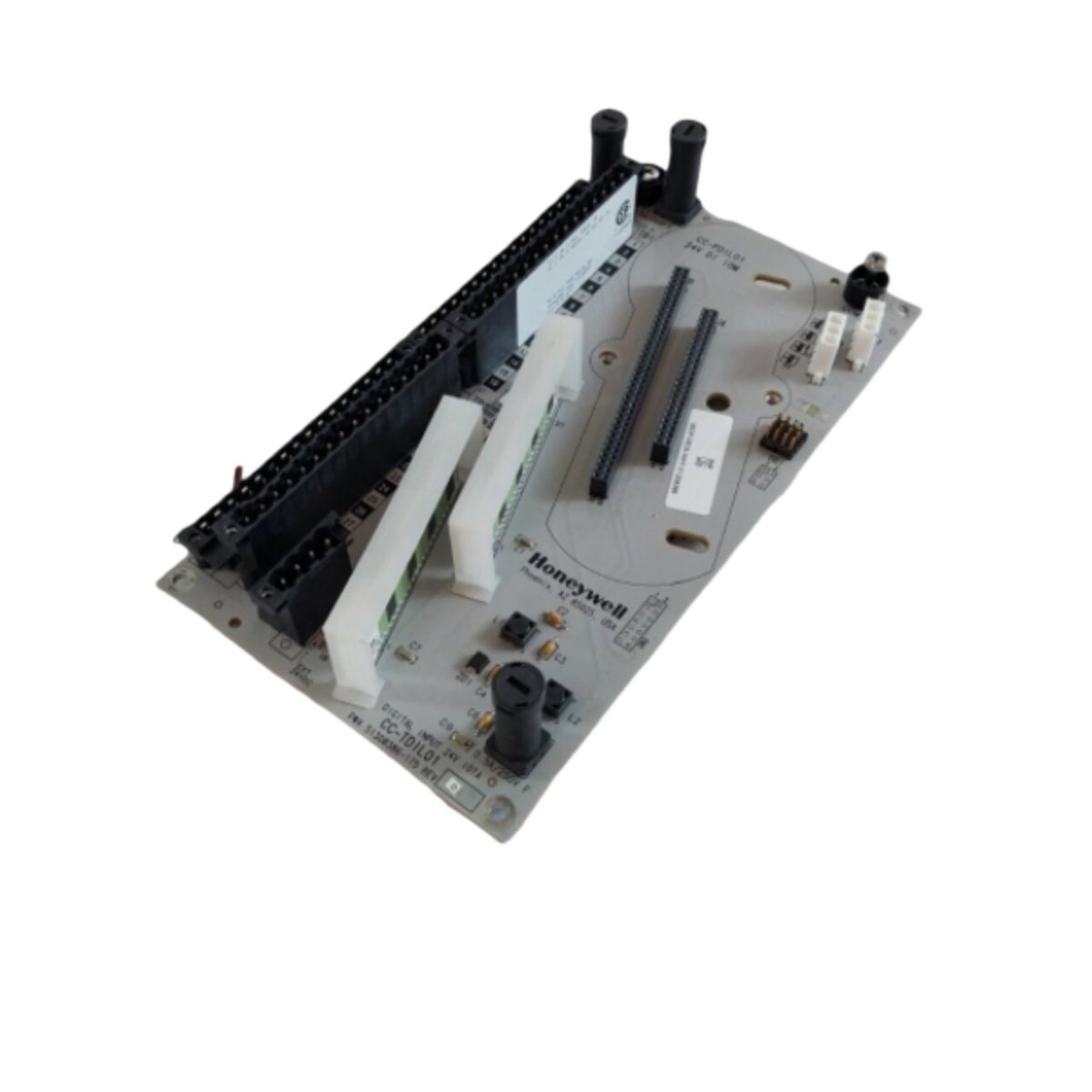

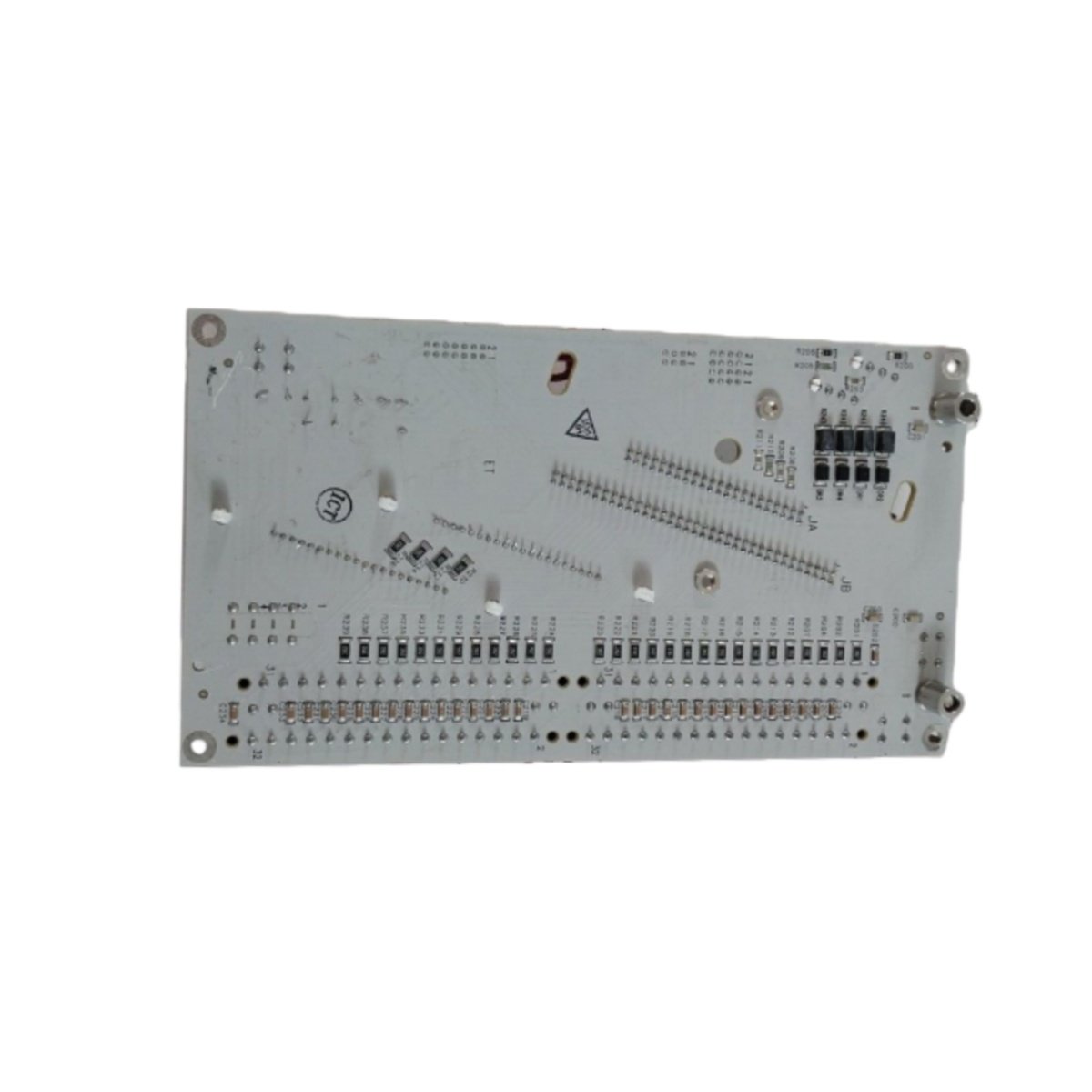

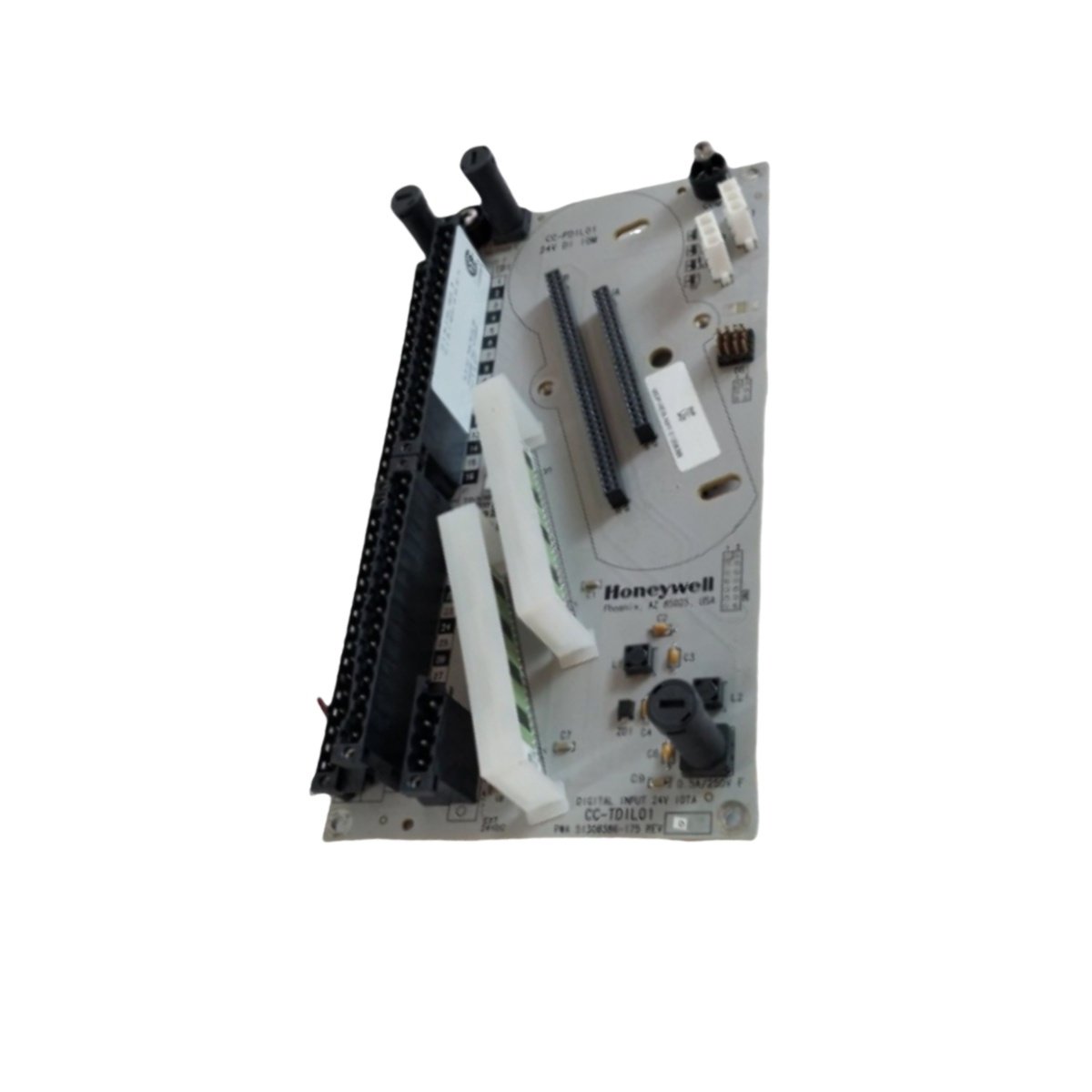

The Honeywell CC-TDIL01 is a reliable digital input module for legacy TDC 3000 control systems. This module acquires critical on/off status signals from field devices like switches and sensors. Consequently, it provides essential data for process interlocking, sequencing, and alarm monitoring.
Core Technical Specifications and Design
This module offers a standard channel count in a robust, system-compatible form factor. It ensures stable signal reading even in electrically noisy industrial environments. Let’s examine its detailed technical parameters and physical characteristics.
Primary Technical Specifications:
| Parameter | Specification |
|---|---|
| Manufacturer / Brand | Honeywell |
| Product Model | CC-TDIL01 |
| Product Category | DCS Digital Input Module |
| System Compatibility | Honeywell TDC 3000 |
| Input Channels | 16 points (typical configuration) |
| Input Signal Level | 24 VDC or 125 VDC (field-selectable) |
| Input Current | Typically 5-10 mA per point at 24 VDC |
| Isolation | Channel-to-channel and channel-to-system isolation |
| Response Time | < 10 milliseconds per point |
| Power Consumption | From TDC 3000 I/O bus (typically < 1W) |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Physical Form | Standard TDC 3000 I/O module card |
Application and Legacy System Integration
You install the CC-TDIL01 into a designated slot within a TDC 3000 Hiway or Local I/O Cabinet. It monitors the state of pushbuttons, limit switches, and relay contacts throughout your plant. Therefore, this module acts as a vital sensory interface for your distributed control architecture.
Its optical or relay-based isolation protects the sensitive control system from field-side transients. For specific jumper settings and cabling diagrams, always refer to the original Honeywell installation manual. This module supports the continued reliable operation of essential TDC 3000 process control systems.
Details
| Weight | 0.91 kg |
|---|---|
| Dimensions | 110 × 55 × 90 mm |
