Product Overview

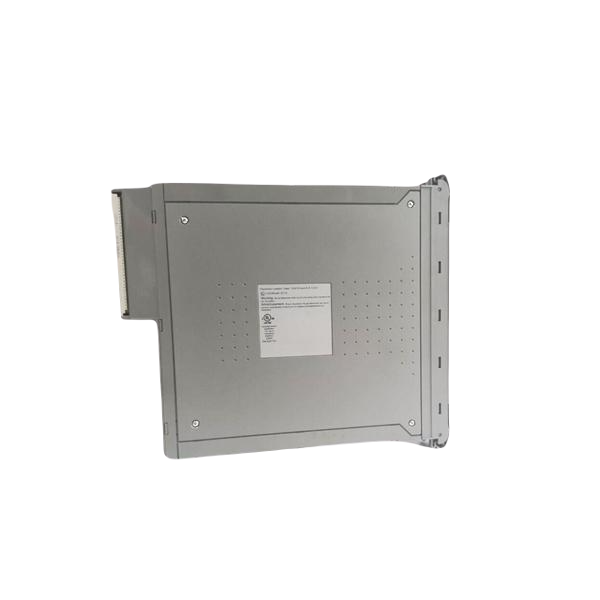

The ICS Triplex T8461C Trusted® Digital Output Module delivers reliable performance for safety-critical automation. It supports up to 40 field devices and uses a Triple Modular Redundant (TMR) design to enhance fault tolerance. The module continuously monitors current and voltage across each channel, ensuring accurate diagnostics and preventing failures such as stuck-on or stuck-off outputs.

Engineers benefit from built-in Sequence of Events (SOE) reporting with a resolution of 1 millisecond. The outputs are organized into isolated groups of eight, offering better separation and reliability. Front-panel LEDs provide real-time status for channels and module health, while hot-swap capability reduces downtime during maintenance.

Key Features

• 40 TMR Output Channels supporting redundancy and fault tolerance.
• Comprehensive Diagnostics with real-time monitoring for short and open circuits.
• Galvanic Isolation rated at 2500V impulse withstand.
• Overcurrent Protection for each channel, eliminating external fuse requirements.
• SOE Reporting with 1 ms accuracy for precise event capture.
• Hot Swap Functionality via Companion Slot or SmartSlot configurations.
• TÜV Certified SIL3 compliance with IEC 61508 standards.
• Isolated Power Groups in sets of eight for increased reliability.

Technical Specifications

Electrical Parameters

• Backplane Supply Voltage: 20–32 V DC
• Field Supply Voltage: 18–58 V DC
• Power Consumption: 26 W (system supply)
• Maximum Current: 30 A
• Power Dissipation: 36 W (field supply)
• Isolation: 50 V reinforced between groups, 250 V basic fault isolation

Output Characteristics

• Channels: 40 outputs across 5 power groups
• Continuous Current: 0.75 A per channel
• Minimum Load Current: 25 mA
• On-State Resistance: 1.6 Ω
• Current Measurement: 0–1.35 A (±5%)
• Voltage Measurement: 0–58 V DC (±2V)
• Short Circuit Protection: Electronic latching
• Load Capacitance: Up to 500 μF

Sequence of Events (SOE)

• Event Resolution: 1 ms
• Timestamp Accuracy: ±10 ms

Environmental Limits

• Operating Temperature: 0 °C to +60 °C
• Storage Temperature: -25 °C to +70 °C
• Humidity: 10–95%, non-condensing

Physical Specifications

• Dimensions: 266 × 31 × 303 mm
• Weight: 1.3 kg

Application Notes

The ICS Triplex T8461C is designed for use in Trusted® I/O systems where safety and reliability are critical. It should not be directly connected to hazardous areas but can be used with Intrinsic Safety Barriers. With its robust diagnostics and hot-swap capability, it helps minimize downtime while maintaining high safety standards.

FAQ

Q1: Is the module brand new and original?
Yes, we only supply brand-new and original factory-sealed modules.

Q2: Do you have the ICS Triplex T8461C available in stock?
We keep regular stock, and shipping usually takes 3 days to 2 weeks depending on order size.

Q3: What shipping methods are available?
We typically use DHL, FedEx, UPS, and other reliable logistics partners for fast delivery.

Q4: What happens if there is a quality issue after delivery?
We provide a 30-day return policy if the product does not meet quality standards.

Q5: How many output channels are included in this module?
The module offers 40 TMR output channels, arranged in five isolated groups of eight.

Q6: What is the operating temperature range?
It can operate between 0 °C and +60 °C, making it suitable for most industrial environments.
