Overview

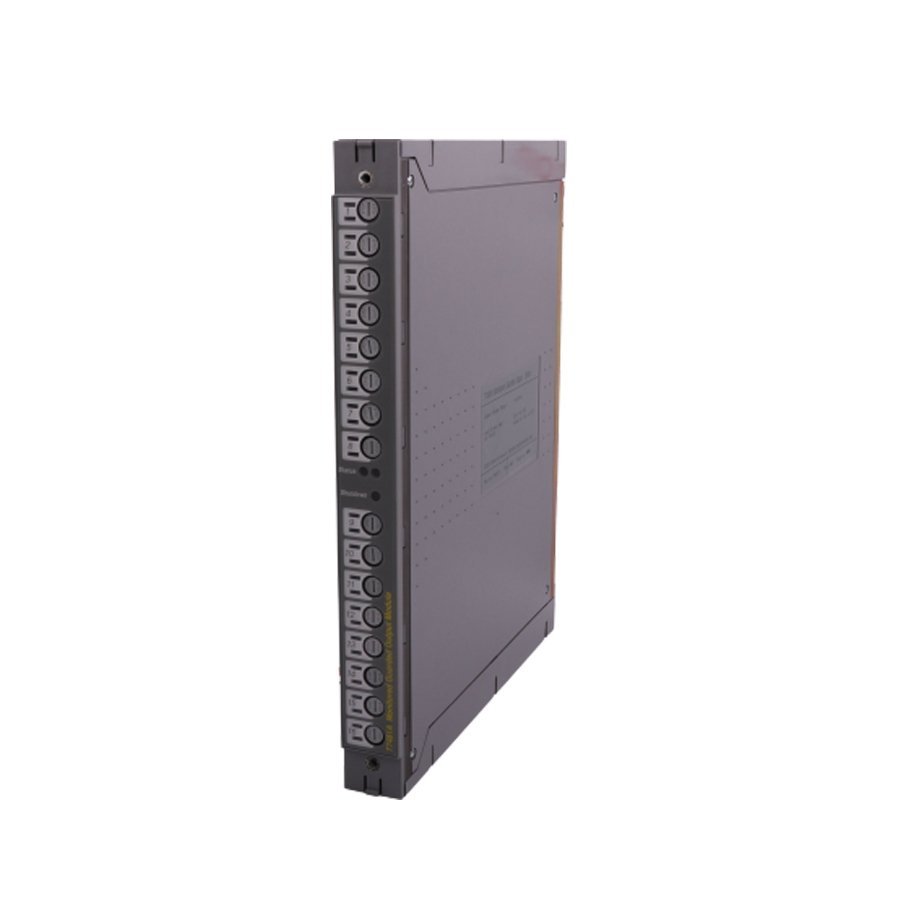

The ICS Triplex T8431 is a Trusted TMR analog input module engineered for high-reliability industrial applications. Moreover, its fully triplicated architecture ensures fault-tolerant operation, minimizing downtime and improving system availability. The module interfaces with 40 sourcing field input devices, providing configurable thresholds and precise analog monitoring. In addition, on-board diagnostics and Sequence of Events (SOE) reporting enable accurate and timely tracking of input states across all channels.
Key Features
- Triple Modular Redundancy (TMR): Each input channel incorporates full TMR for enhanced reliability.
- Comprehensive Diagnostics: Includes self-tests and automatic line monitoring to detect open and short circuits.
- Opto/Galvanic Isolation: Withstands 2500 V impulses for robust electrical isolation and system protection.
- Sequence of Events Reporting: SOE resolution of 1 ms with timestamp accuracy ±10 ms for precise tracking.
- Hot Replacement: Supports online module replacement using Companion Slot or SmartSlot configurations.
- Front Panel Indicators: LEDs display channel status, field wiring faults, and overall module health.
- Safety Certification: TÜV IEC 61508 SIL 3 certified for demanding industrial applications.
Technical Data
| Parameter | Specification |
|---|---|
| Backplane (IMB) Supply Voltage | 20–32 Vdc |
| Power Dissipation | 20 W |
| Input Current | 0–22 mA |
| Input Voltage | 0–5.5 Vdc |
| Input Impedance (FTA) | 250 Ω |
| Input Impedance (Module) | 16.967 kΩ (halved with partner modules) |
| Safety Accuracy | ±200 μA |
| Calibration Accuracy | ±0.15% |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -25 °C to +70 °C |
| Relative Humidity | 10%–95%, non-condensing |
| Event Resolution (SOE) | 1 ms |
| Timestamp Accuracy | ±10 ms |
| Isolation Voltage | Field Common 50 V reinforced, 250 V basic |
System Integration & Applications
The T8431 module integrates seamlessly with TMR safety-critical systems. Therefore, it is ideal for:
- Process control instrumentation requiring accurate analog input monitoring.
- High-reliability industrial automation systems with 40 sourcing field devices.
- Hazardous or intrinsically safe environments with external safety barriers.
- Applications requiring detailed event tracking via 1 ms SOE resolution.
Moreover, its hot replacement and diagnostic features ensure minimal operational disruption during maintenance.
