Overview

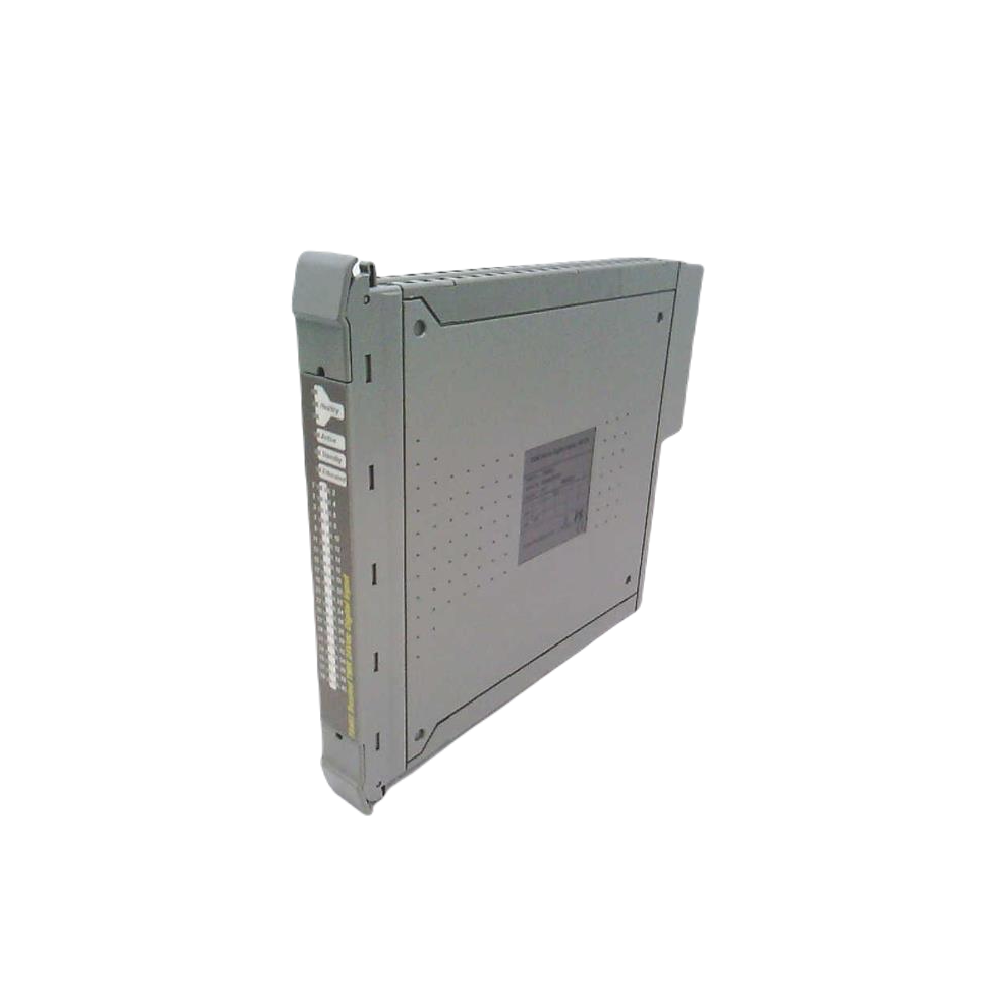

The T8403 Digital Input Module is an integral component of the ICS Triplex Trusted system. It provides Triple Modular Redundancy (TMR), ensuring continuous operation even if one module fails. Additionally, it delivers robust digital input monitoring for demanding industrial environments. This module supports precise event recording and rapid signal processing, which makes it suitable for critical control applications.
Key Features
- Triple Modular Redundancy (TMR): Enhances reliability by maintaining operation despite a single module failure.
- High-Resolution Event Recording: Sequence of Events (SOE) with 1 ms resolution and ±10 ms timestamp accuracy.
- Flexible Input Configuration: Supports 40 digital inputs with configurable thresholds and high safety accuracy (0.5 Vdc).
- Robust Electrical Design: Operates with a backplane supply of 20–32 Vdc and maximum dissipation of 29 W.
- Strong Environmental Compliance: Withstands vibration, shock, and extreme temperatures, suitable for industrial control rooms.
- EMC and Surge Immunity: Certified for radiated and conducted emissions (CISPR 11 Class A), ESD protection, and high-voltage surge and transient immunity.
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | T8403 |
| System | ICS Triplex Trusted TMR |
| Input Voltage Range | -6 Vdc to +36 Vdc |
| Input Impedance | 5 kΩ |
| Number of Inputs | 40 |
| Isolation | Functional-to-Protective Earth: 500 Vdc min Functional-to-Functional Earth: 800 Vdc min |
| Sequence of Events (SOE) | Event Resolution: 1 ms Time Stamp Accuracy: ±10 ms |
| Backplane Supply | 20–32 Vdc, 20 W typical, 29 W max |
| Operating Temperature | 0 °C to +60 °C (+32 °F to +140 °F) |
| Storage Temperature | -25 °C to +70 °C (-13 °F to +158 °F) |
| Humidity | 10%–95%, non-condensing |
| Dimensions (H x W x D) | 266 mm x 31 mm x 303 mm (10.5 in x 1.2 in x 12.0 in) |
| Weight | 1.18 kg (2.6 lb) |
| Vibration | 5–8.4 Hz: 3.5 mm 8.4–150 Hz: 1 g |
| Shock | 15 g, 11 ms |
| EMC Compliance | ESD ±6 kV contact / ±8 kV air Radiated RF 10 V/m (80 MHz–2.7 GHz), 3 V/m (2.7–6 GHz) Conducted RF 10 V rms (150 kHz–100 MHz) |
| Surge & Transient Immunity | DC Power ±4 kV AC Power ±4 kV line-earth, ±2 kV line-line I/O & Communication ±1–2 kV depending on source |
Applications
- Critical Control Systems: Ensures reliable digital input monitoring in industrial safety systems.
- High-Reliability Environments: Ideal for nuclear, oil & gas, and other mission-critical installations.
- Industrial Automation: Provides precise event recording and rapid signal processing for complex machinery.
Compliance & Certifications
- Tested to IEC 60068 for temperature and vibration.
- Certified to IEC 61000 standards for EMC immunity and emissions.
- Reinforced isolation: 50 V continuous; basic fault-rated: 250 V (tested at 2436 Vdc for 60 s).
- Requires external intrinsic safety barriers for hazardous locations.
