Product Overview

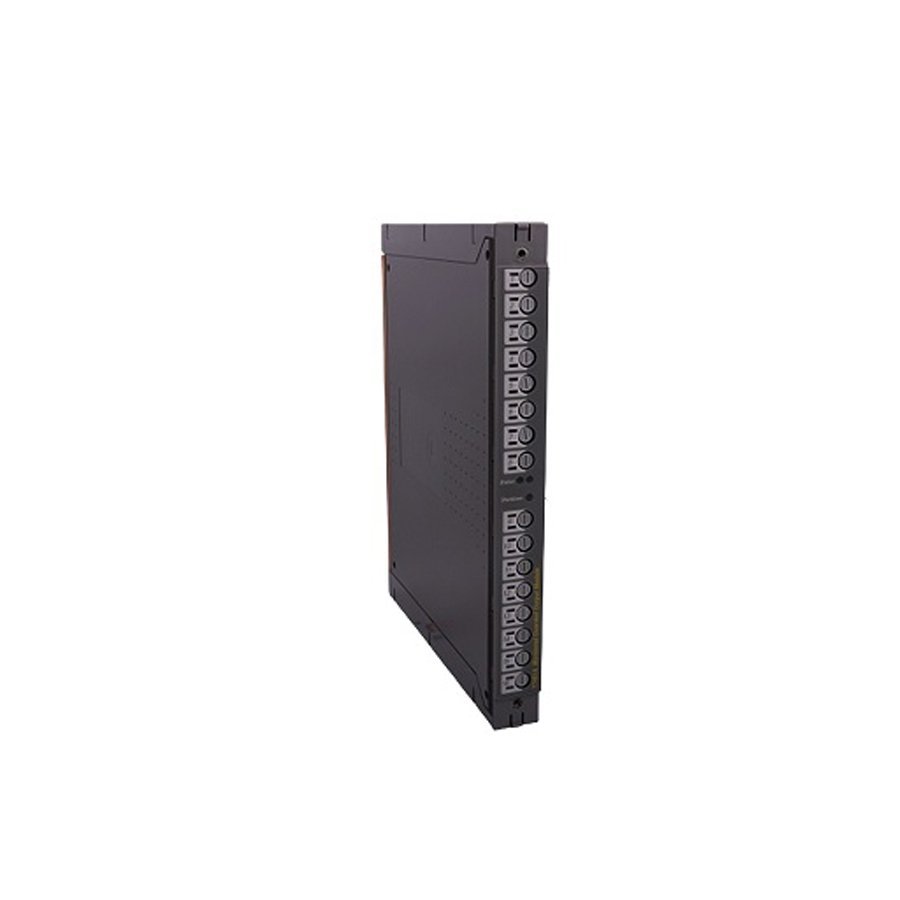

The ICS Triplex T8310 Trusted TMR Expander Processor extends the Trusted control system efficiently. Moreover, it interfaces the Expander Bus with the Expander Chassis Backplane, supporting UTP or Fiber Optic connectivity for long-distance communications. In addition, the module’s fault-tolerant design and high availability ensure system reliability, minimizing downtime in critical industrial applications. Its modular integration provides flexible deployment options while maintaining robust operational performance.
Functional Highlights
- TMR Fault Tolerance: Operates using 3-2-0 HIFT architecture for maximum reliability.
- Hardware/Software Diagnostics: Continuous testing enables fast detection and automatic fault response.
- Hot Replacement: Supports online replacement without interrupting system operation.
- Front Panel Indicators: LEDs display module health, communication, and operational status.
- Modular Configuration: Supports automatic and manual repair strategies to enhance availability.
- Long Communication Range: Up to 30 m with copper or 10 km with fiber for flexible installation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Backplane Supply Voltage | 20–32 V dc |
| Power Dissipation | 45 W |
| Field Supply | Not applicable |
| Isolation | 50 V basic insulation between module and backplane |
| Max Expander Communication Distance | 30 m TC-301 Copper, 10 km Fiber TX/RX |
| Operating Temperature | 0 °C to 60 °C |
| Storage Temperature | -25 °C to 70 °C |
| Relative Humidity | 10%–95%, non-condensing |
| Dimensions (H×W×D) | 266 × 31 × 303 mm (10.5 × 1.2 × 12 in) |
| Weight | 1.33 kg (2.9 lb) |
| Vibration | 5–8.4 Hz: 3.5 mm; 8.4–150 Hz: 1 g |
| Shock | 15 g, 11 ms |
| EMC – Radiated/Conducted Emissions | CISPR 11 Class A |
| ESD Immunity | ±6 kV contact, ±8 kV air |
| Radiated RF Immunity | 10 V/m 80 MHz–2.7 GHz; 3 V/m 2.7–6 GHz |
| EFT/Burst Immunity | DC ±4 kV; I/O ±1 kV |
| Surge Immunity | DC Power ±4 kV line-earth, ±2 kV line-line |
| Conducted RF Immunity | 10 V rms, 150 kHz–100 MHz |
| Magnetic Immunity | IEC 61000-4-8 compliant, 30 A/m |
System Integration & Applications
The T8310 Expander Processor integrates with Trusted Expander Chassis to extend system I/O efficiently. Therefore, it is ideal for:
- Large-scale industrial automation systems requiring reliable TMR expansion.
- Critical process control applications needing fault containment and hot-replacement capability.
- Systems with UTP or Fiber connectivity for flexible deployment distances.
- Environments demanding fast diagnostics and modular repair strategies.
Moreover, its high EMC resilience and vibration/shock compliance ensure uninterrupted operation in harsh industrial conditions.
