Product Overview

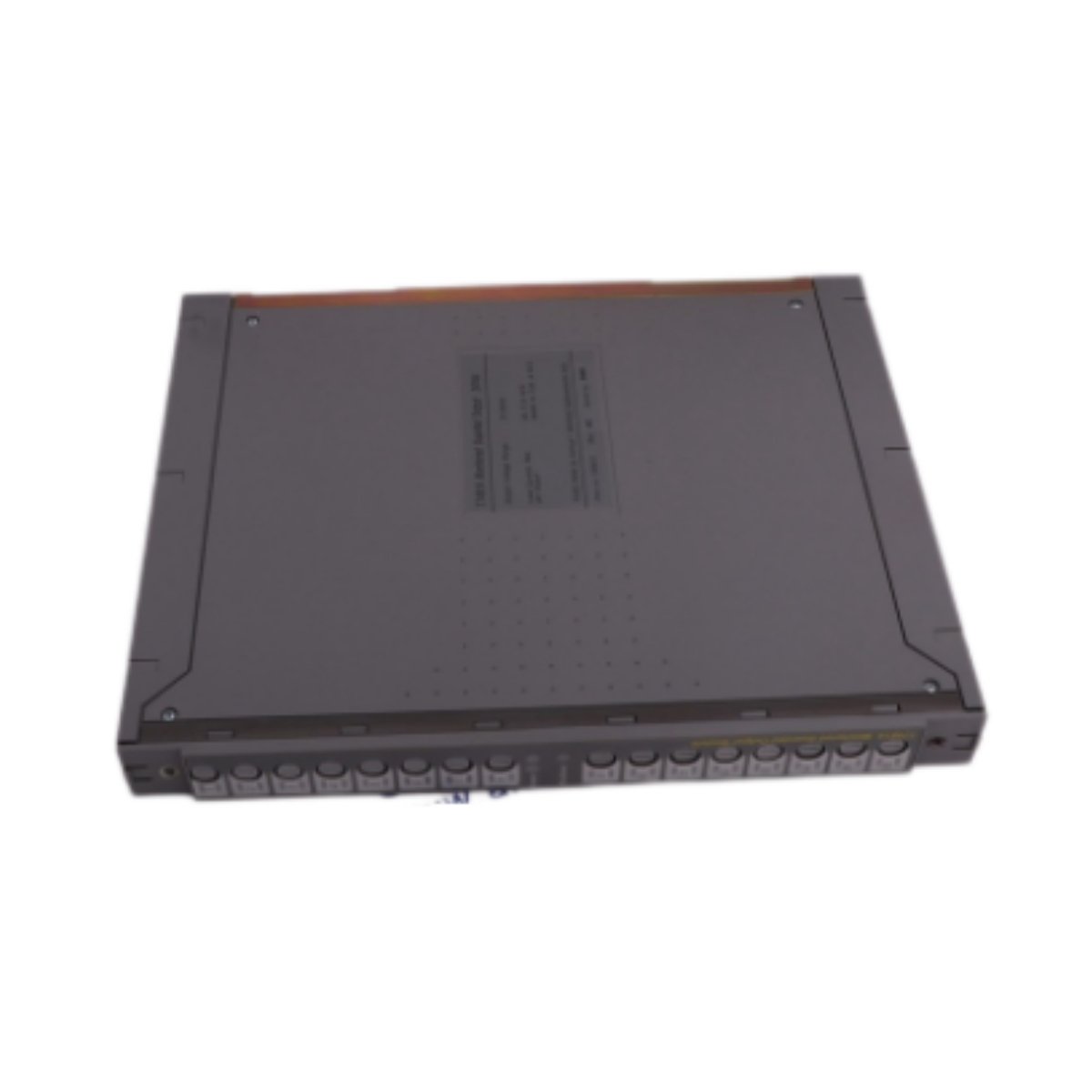

The ICS Triplex T8243 module provides high-performance digital output for industrial automation systems. It supports 24 independent output channels, offering precise voltage and current control. Additionally, the module integrates smoothly into TMR systems, ensuring reliable operation under continuous load and varying environmental conditions.
Output Capabilities
The ICS Triplex T8243 handles digital outputs ranging from 0–60 V DC with a per-channel current rating of 0.5 A. Its robust design includes 2500V AC isolation, which safeguards other devices and control circuits. Engineers benefit from its 500 Hz switching frequency for rapid response in high-speed processes.
Electrical & Performance Features
With a power dissipation of only 10 W, the T8243 operates efficiently without generating excessive heat. It performs reliably across -10°C to 60°C, making it suitable for diverse industrial environments. The module’s compact dimensions and lightweight design simplify cabinet integration.
Technical Specifications
| Parameter | Specification |
|---|---|
| Output Channels | 24 |
| Output Type | Digital |
| Voltage Range | 0–60 V DC |
| Current per Channel | 0.5 A |
| Isolation | 2500V AC |
| Switching Frequency | 500 Hz |
| Operating Temperature | -10°C to 60°C |
| Power Dissipation | 10 W |
| Dimensions | 210 × 170 × 35 mm |
| Weight | 1.2 kg |
| Origin | United Kingdom |
Application Advantages
The ICS Triplex T8243 suits TMR-based safety-critical systems, turbine controls, and fast-response process applications. Its 24-channel digital output ensures precise actuation, while its high isolation rating and efficient power usage extend operational longevity.
Details
| Weight | 1.2 kg |
|---|---|
| Dimensions | 210 × 170 × 35 mm |
