Overview

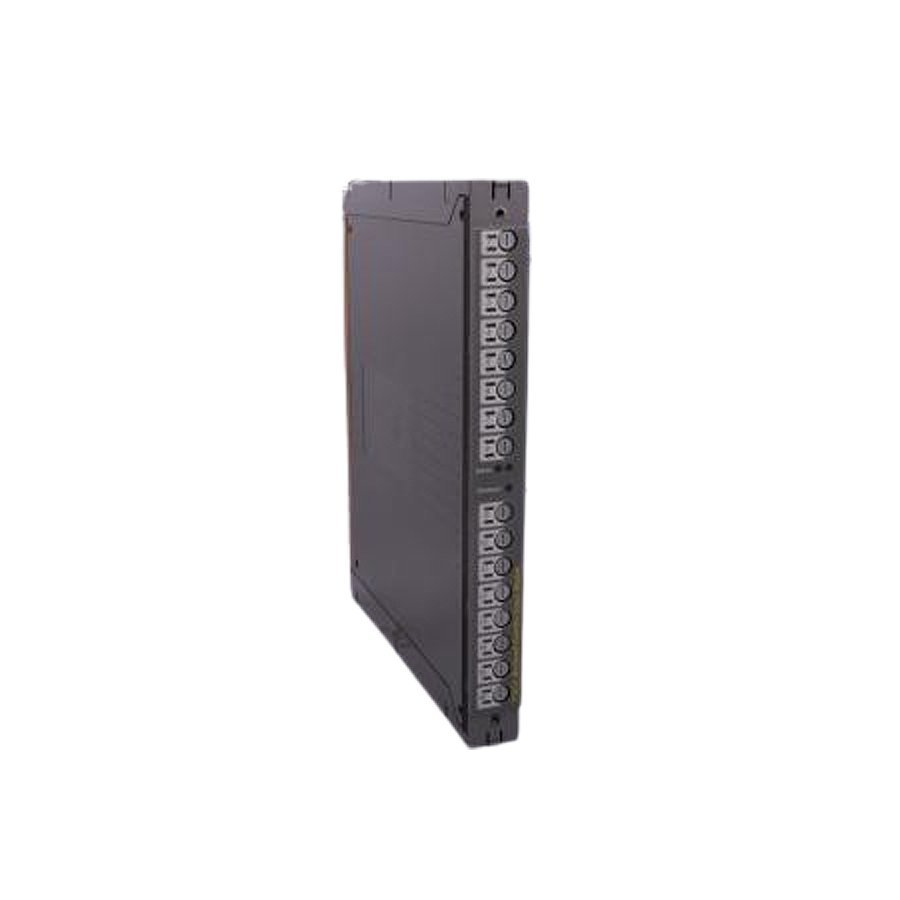

The ICS Triplex T8231 Power Pack provides stable 24 VDC output for industrial automation systems, ensuring reliable operation. Moreover, it supports wide input voltage ranges from 85 to 264 VAC, maintaining performance under variable supply conditions. The module also features high efficiency, up to 84%, which reduces energy losses and improves system reliability.
In addition, the T8231 offers robust protections including overload and overvoltage safeguards, thereby enhancing system safety during transient events. Its modular design allows seamless integration into Trusted Power System configurations.
Functional Highlights
The T8231 Power Pack combines durability, efficiency, and compact design to optimize industrial power supply.
- High Output Power: 24–28 VDC with 750 W maximum output.
- Protection Features: Overload protection at 105–125% and overvoltage protection at 115–135% nominal voltage.
- Power Quality: Output ripple limited to 240 mV peak-to-peak maximum.
- High Power Factor: Greater than 0.98 at full load for minimal energy loss.
- Environmental Robustness: Operates between 0°C and 70°C with up to 95% non-condensing humidity.
Furthermore, the T8231 maintains stable operation under high inrush currents, ensuring consistent power delivery to critical systems.
Technical Data
| Parameter | Specification |
|---|---|
| Input Voltage | 85–264 V AC |
| Input Frequency | 47–63 Hz |
| Nominal Output Voltage | 24 V DC |
| Output Adjustment | 24–28 V DC |
| Maximum Output Power | 750 W |
| Efficiency | 78–84% |
| Power Factor | 0.95 minimum, 0.99 typical |
| Operating Temperature | 0–60°C |
| Storage Temperature | -40–85°C |
| Relative Humidity | 5–95%, non-condensing |
| Dimensions (HxWxD) | 43 x 483 x 340 mm |
| Weight | 2.7 kg |
| Vibration / Shock | 10–500 Hz, 2 G / 30 G |
Moreover, the T8231 is UL-approved for information technology and medical equipment, confirming compliance with industrial safety standards.
Typical Applications
The T8231 Power Pack is ideal for powering Trusted® system modules, including TMR analog and digital input/output modules. For instance, it supports continuous operation in process automation, industrial control racks, and safety-critical systems.
In addition, its compact footprint allows mounting in power shelves or racks with other ICS Triplex components, enabling seamless integration into existing infrastructures.
Details
| Weight | 2.7 kg |
|---|
