Overview

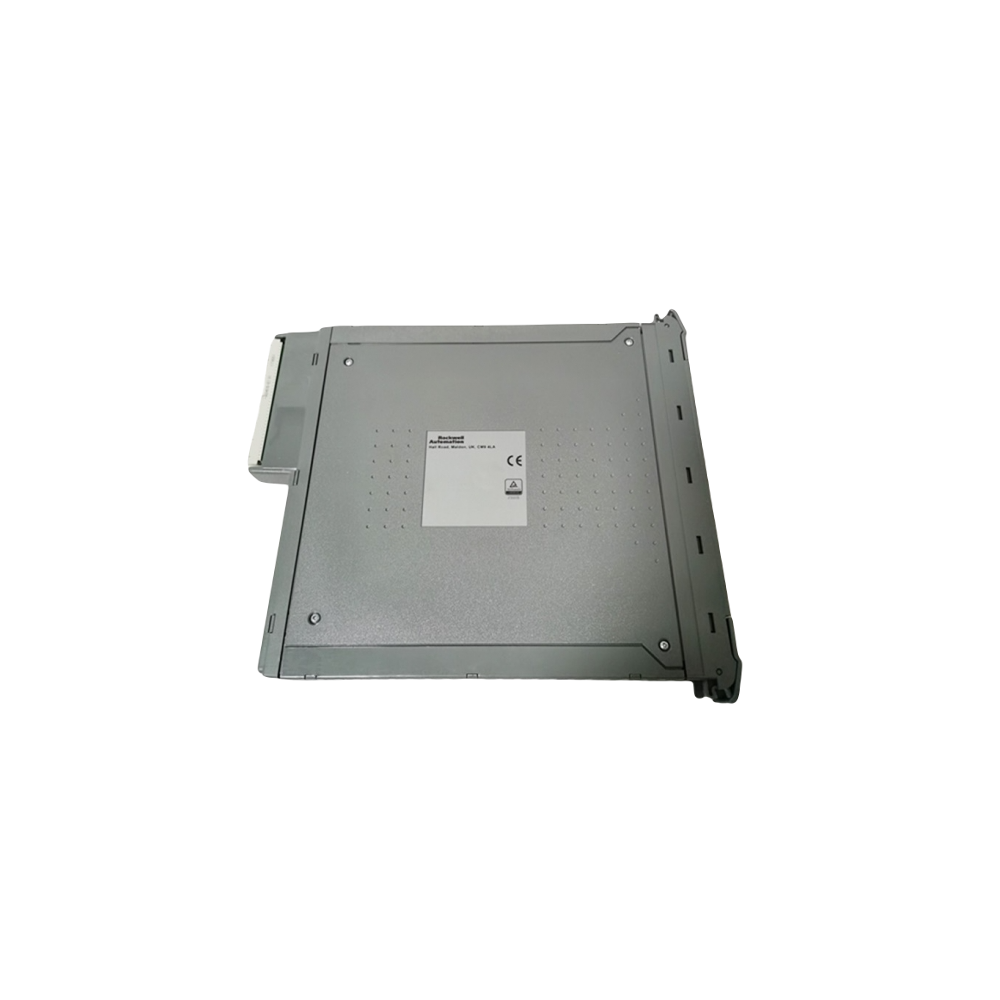

The ICS T8151C module is a critical Trusted Communication Interface for industrial automation systems. Moreover, it facilitates secure and reliable communication between TMR processors and associated components. In addition, it supports multiple hardware revisions, ensuring flexibility for both new and existing Trusted system installations.
Functional Highlights
- Robust Communication: Ensures high-integrity data transfer across critical control systems.
- Hardware Compatibility: Functionally identical with revisions C, F, G, H; compatible with A, B using firmware updates.
- Fault Detection: Identifies incompatible modules preventing system failure with older T8111C Series B or earlier processors.
- Connector Support: Works with T8153 Connector Modules, hardware issues G through X only.
- Certification: CCC certified as of March 18, 2023, for industrial safety and reliability.
- Lifecycle Status: Active module, fully supported by Rockwell Automation.
Technical Data
| Parameter | Specification |
|---|---|
| Product Model | T8151C |
| Certification | CCC Certified (Mar 18, 2023) |
| Functionally Identical | C, F, G, H (Firmware version 11 required) |
| Functionally Compatible | A, B (Firmware version 32 required) |
| Not Compatible | D, E |
| Connector Compatibility | T8153 (H/W issues G through X only) |
| Maximum Power Dissipation | According to Trusted 8000 Series specifications |
| Operating Temperature | 0 °C to +60 °C (32 °F to 140 °F) |
| Storage Temperature | -25 °C to +70 °C (-13 °F to 158 °F) |
| Relative Humidity | 10–95%, non-condensing |
| Known Issues | Incompatibility with T8111C Series B or older modules |
Support & Maintenance
- Replacement Requirements: Replace incompatible T8150/T8151 modules with Series B or later versions.
- Connector Module Note: Ensure T8153 connector module hardware is G through X; otherwise, replace simultaneously.
- Customer Responsibilities: Identify affected modules, request replacements through Trusted Spares and Repairs, and package securely for returns.
- Important Note: Post-October 2020 replacements are customer-purchased.
Details
| Weight | 0.92 kg |
|---|
