Product Overview

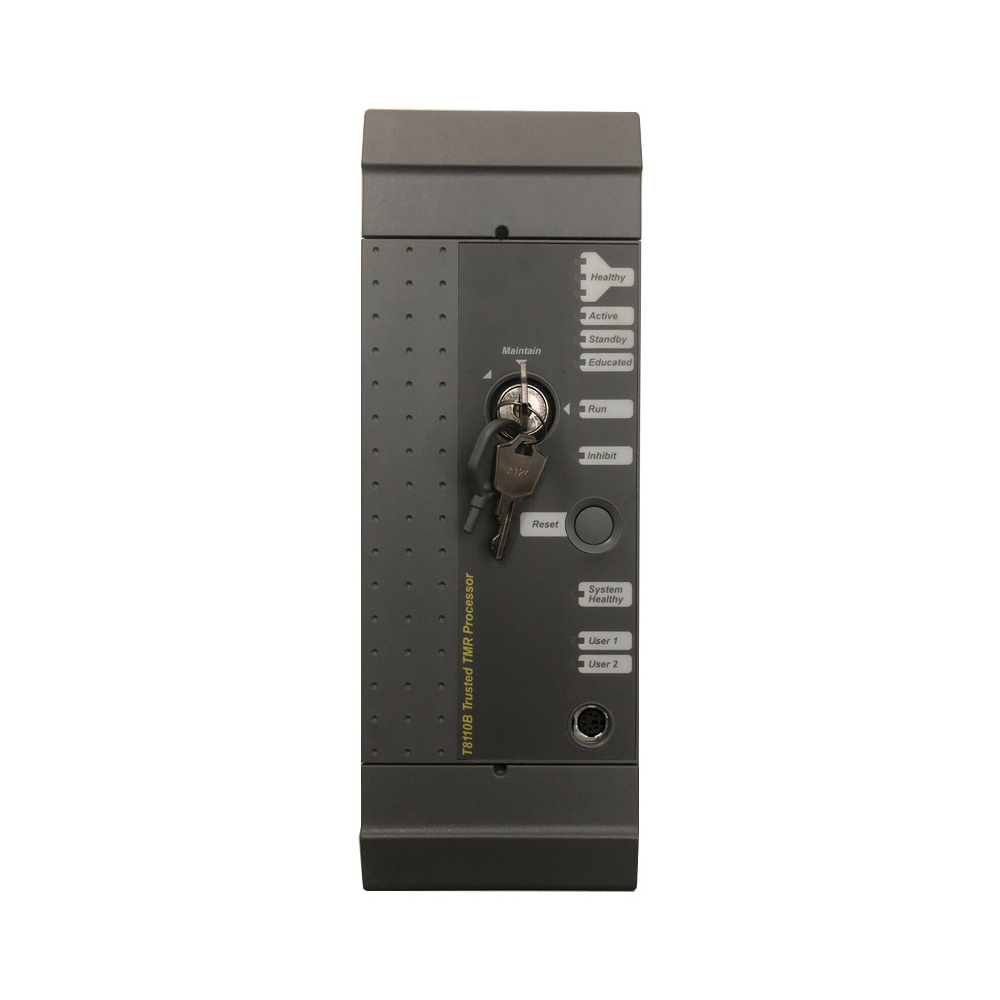

The ICS T8110B Trusted TMR Processor is the central unit of the Trusted® System, providing fault-tolerant control for critical applications. Moreover, its triple modular redundant design ensures uninterrupted operation and compliance with SIL 3 standards. In addition, the processor supports multiple communication interfaces for seamless integration with automation and safety systems.
Key Benefits
- Triple Modular Redundant (TMR) Design: Provides 3-2-0 fault-tolerant operation for maximum reliability.
- Hardware Implemented Fault Tolerance (HIFT): Enables rapid fault detection and automatic handling with minimal nuisance alarms.
- Hot Replacement Capability: Allows replacement without reloading programs, reducing system downtime.
- Flexible Configuration: Supports IEC 61131-3 programming and RS232 diagnostics for easy system setup.
- Time Synchronization: Supports IRIG-B002 and 122 signals, exclusive to T8110B.
Technical Specifications
| Parameter | Specification |
|---|---|
| Supply Voltage | 20–32 V DC |
| Maximum Load / Heat Dissipation | 80 W |
| Processor Clock | 100 MHz |
| DRAM | 16 MB EDO (60 ns) |
| EPROM | 512 kB |
| FLASH | 2 MB |
| NVRAM | 128 kB |
| Retained Variables | Boolean: 1 byte, Analog: 4 bytes, Timer: 5 bytes |
| SOE Buffer | 1000 events, CI buffer: 4000 events |
| Operating Temperature | 0 °C to 60 °C (32 °F to 140 °F) |
| Non-Operating Temperature | -25 °C to 70 °C (-13 °F to 158 °F) |
| Humidity | 10–95%, non-condensing |
| Dimensions (HxWxD) | 266 x 93 x 303 mm (10.5 x 3.6 x 12.0 in) |
| Weight | 2.94 kg (6.48 lb) |
| Communication Ports | 2x RS422/485 (2 or 4-wire), 1x RS485 (2-wire) |
| Safety Certification | TϋV IEC 61508 SIL 3 |
Typical Applications & System Integration
The T8110B processor is ideal for fire and gas systems, emergency shutdown, and turbine control. For instance, it manages high-reliability automation for turbines, compressors, and safety-critical processes. Moreover, its communication ports allow integration with SCADA, HMIs, and other control systems, supporting centralized monitoring and control.
Details
| Weight | 2.94 kg |
|---|
