Overview

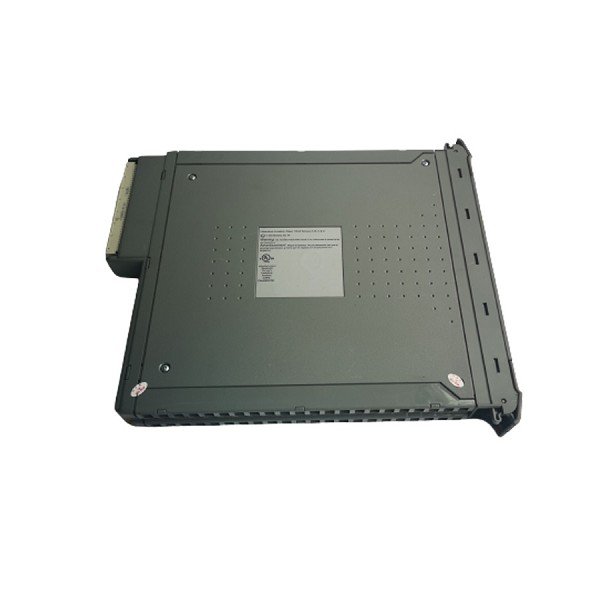

The Honeywell TK-IOL101 is a high-performance I/O Module designed for advanced industrial automation. It connects field devices with control systems and enables fast, reliable data exchange. Its rugged housing, compact size, and versatile interfaces make it suitable for complex automation environments that require precision and stability.
Engineered by Honeywell USA, the TK-IOL101 combines durability with intelligent design. It supports multiple analog and digital channels, delivering stable signal transmission and quick response times. The module’s DIN-rail or panel mounting flexibility allows seamless integration into both new and existing systems.
Key Features
- 32 configurable digital channels for high signal flexibility.
- 8 analog input and 4 analog output channels for accurate data acquisition.
- Fast signal response times below 10 milliseconds.
- Compact 500g design for space-efficient installations.
- Reliable Modbus RTU communication for easy system integration.
- Wide operating temperature range from -40°C to +70°C.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | TK-IOL101 |
| Brand | Honeywell |
| Product Type | I/O Module |
| Input Voltage | 24 VDC nominal (18–32 VDC operating range) |
| Digital Channels | Up to 32 |
| Analog Inputs | 8 channels (4–20 mA or 0–10 VDC) |
| Analog Outputs | 4 channels (4–20 mA) |
| Protocol Support | Modbus RTU / Honeywell proprietary |
| Response Time | <5 ms (digital), <10 ms (analog) |
| Power Consumption | 5 W typical |
| Operating Temperature | -40°C to +70°C (-40°F to +158°F) |
| Storage Temperature | -50°C to +85°C (-58°F to +185°F) |
| Humidity | 5%–95% RH, non-condensing |
| Mounting | DIN rail or panel mount |
| Weight | 500 g |
| Origin | USA |
Dimensions and Weight
The Honeywell TK-IOL101 measures 120 mm (L) × 80 mm (W) × 50 mm (H) and weighs approximately 500 grams. Its lightweight yet robust construction ensures easy installation and reliable long-term performance in control panels.
Applications
- Industrial automation and process control
- Distributed I/O systems
- Factory and building automation
- Redundant control configurations
FAQs
1. What is the main function of the TK-IOL101?
The TK-IOL101 connects sensors, actuators, and controllers, ensuring precise signal conversion and communication in automation systems.
2. Can the TK-IOL101 operate in extreme environments?
Yes, the TK-IOL101 is built to perform in harsh industrial conditions, with a wide temperature and humidity tolerance.
3. Does this model support redundancy?
Yes, it supports redundant configurations to guarantee uninterrupted control in critical operations.
4. What is the maximum communication cable length?
It supports RS-485 communication up to 1,200 meters, depending on the baud rate and installation quality.
Details
| Weight | 0.5 kg |
|---|---|
| Dimensions | 120 × 80 × 50 mm |
