Overview

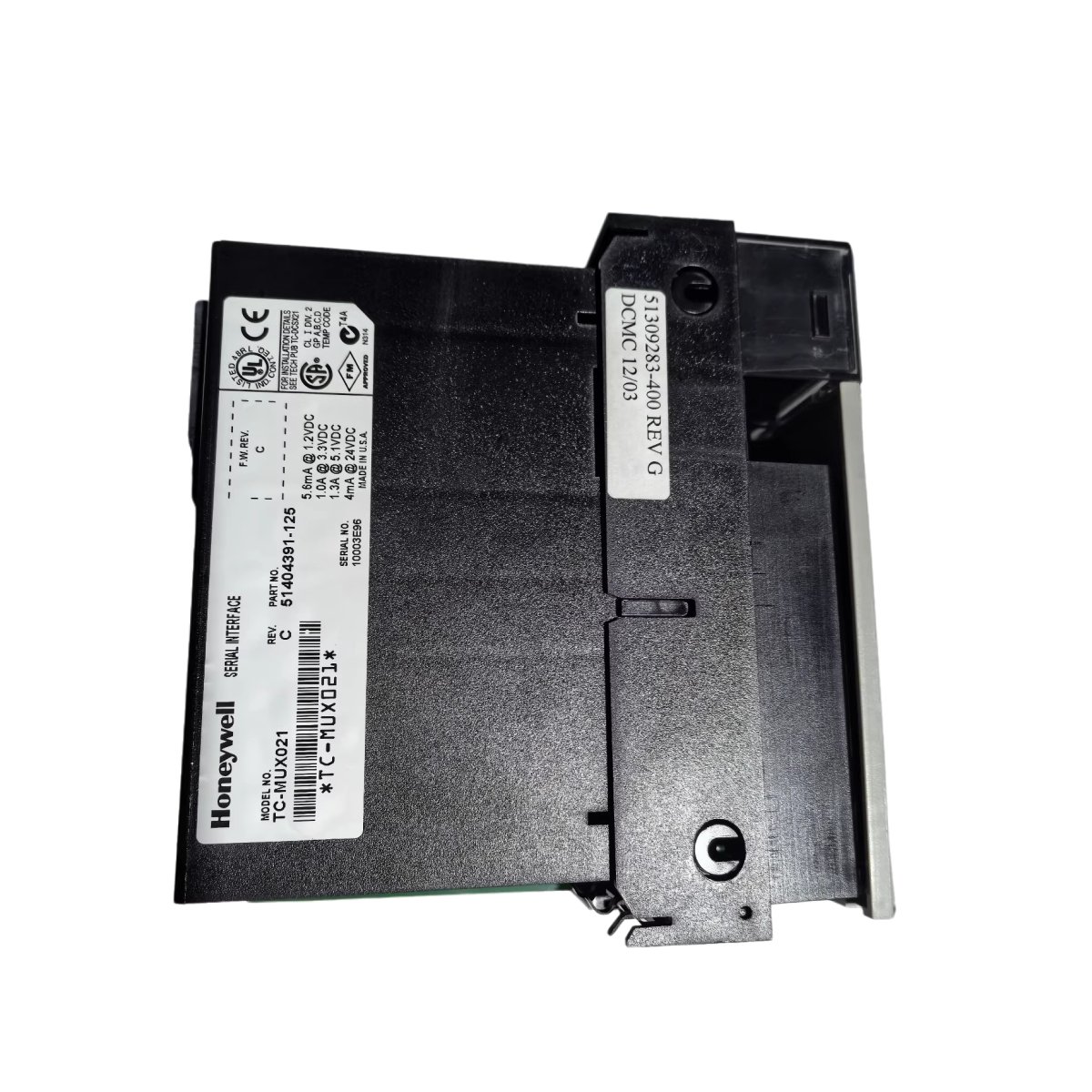

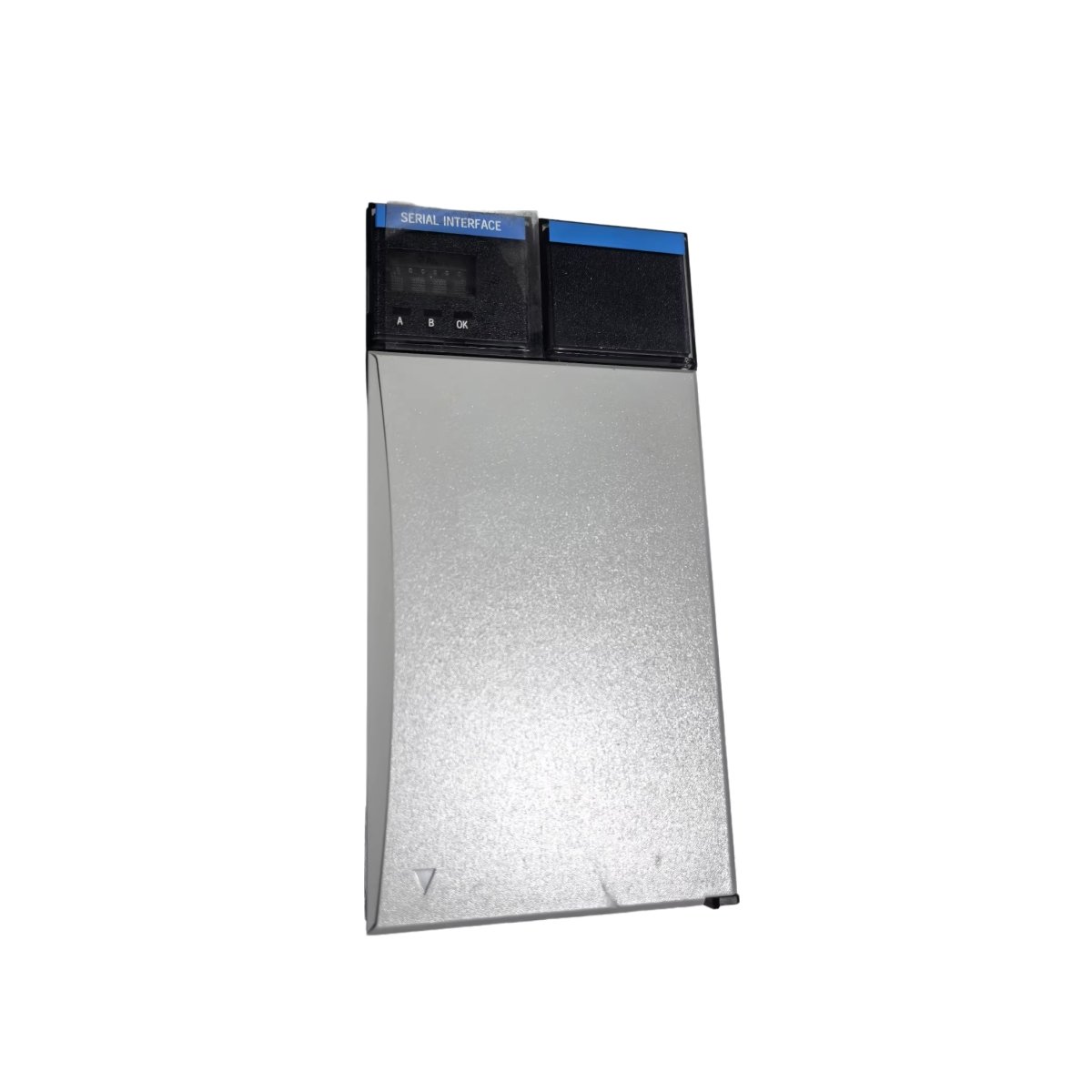

The Honeywell TC-MUX021 Serial Interface Module provides dependable and high-performance communication between industrial controllers and field devices. Designed with a double-slot width, it offers two independent communication ports that engineers can configure for either EIA RS-232D or EIA RS-422/485D interfaces. This flexibility allows users to integrate the module into a variety of control architectures, including SCADA systems and distributed automation networks.
The TC-MUX021 ensures reliable data transmission even in harsh industrial environments. Its rugged design resists vibration, shock, and electrical noise while maintaining stable serial communication. Engineers often use this module with Honeywell MU-TSIM12 (Modbus) and MU-TSIA12 (Allen-Bradley DF1) FTAs for robust and efficient system integration.
Key Features
- Dual communication ports, configurable per Field Termination Assembly (FTA)
- Supports RS-232D and RS-422/485D interfaces
- Handles up to 19.2 kbps communication speed per FTA
- Works with MU-TSIM12 (Modbus) and MU-TSIA12 (Allen-Bradley DF1) models
- High resistance to vibration, shock, and electromagnetic interference
- Power dissipation rated at 10 watts for efficient operation
- Compact structure designed for industrial control and data acquisition applications
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Honeywell |
| Model | TC-MUX021 |
| Product Type | Serial Interface Module |
| Module Width | Double-slot |
| Maximum Modules per Controller | 3 |
| Communication Ports | 2 (one per FTA) |
| Physical Interface Options | EIA RS-232D (DB-25) / EIA RS-422/485D (5-terminal compression) |
| Selectable Interface | Configurable per FTA |
| Maximum Speed | 19.2 kbps per FTA |
| Supported FTA Models | MU-TSIM12 (Modbus), MU-TSIA12 (Allen-Bradley DF1) |
| Power Dissipation | 10 W |
| Vibration Resistance | 10–50 Hz, 5 g |
| Shock Resistance | 30 g peak, 11 ms |
| ESD Protection | 2–15 kV on case, 10 kV on RS port |
| Noise Immunity | 10 V/m, 20–100 MHz |
| Dielectric Withstand | 500 V to ground |
| Module Connection | TC-KSM003 Power Adapter Cable |
| Application | Control systems, SCADA, and data acquisition networks |
Performance and Protection
The TC-MUX021 features advanced protection against electrostatic discharge and electrical interference. With up to 15 kV ESD protection and 10 V/m noise immunity, it ensures consistent communication even under strong electromagnetic fields. Its durable mechanical design also withstands 30 g peak shock and continuous vibration, guaranteeing stable long-term performance.
Installation and Integration
Installation is straightforward using the TC-KSM003 power adapter cable. Each controller can connect up to three TC-MUX021 modules, allowing scalable system expansion. Engineers can easily configure communication settings for RS-232D or RS-422/485D depending on network topology and distance requirements.
This module integrates seamlessly with Honeywell control platforms, supporting both Modbus and Allen-Bradley DF1 communication standards for flexible industrial interoperability.
Product Origin, Dimensions, and Weight
- Origin: USA
- Dimensions: 120 mm × 35 mm × 100 mm (L × W × H)
- Weight: 350 g
The compact size and light weight of the TC-MUX021 simplify panel integration and improve space utilization within control cabinets.
Why Choose Honeywell TC-MUX021
The Honeywell TC-MUX021 offers a combination of flexibility, reliability, and superior communication performance. Its dual-interface design, robust protection, and broad compatibility make it an essential module for engineers building modern industrial automation systems that demand precise and durable serial communication.
Details
| Weight | 0.35 kg |
|---|---|
| Dimensions | 120 × 35 × 100 mm |
