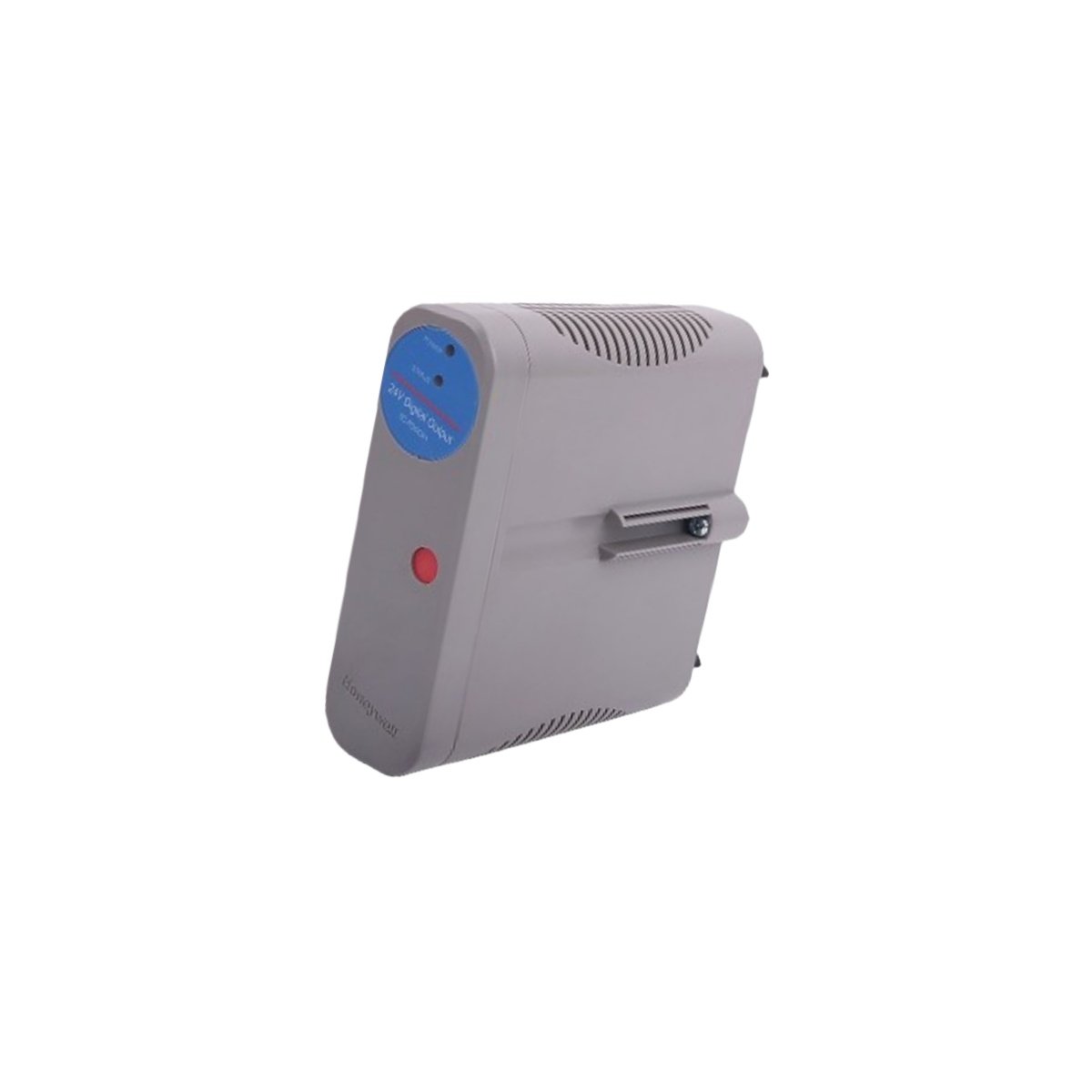

The Honeywell S8-2YREXW functions as a reliable relay output module for industrial control applications. This module provides eight independent Form C relay contacts for switching external loads. Engineers use it to control motors, solenoids, valves, and indicator lights effectively. The S8-2YREXW offers isolated contacts for maximum application flexibility. Each relay channel handles substantial AC and DC loads for versatile use.

Technical Specifications and Physical Characteristics

Precise technical specifications enable proper integration of the Honeywell S8-2YREXW into control panels. The module’s robust design supports demanding industrial switching applications with long service life.

Relay Contact Configuration and Flexibility

The S8-2YREXW provides Form C contacts for each of its eight output channels. Each channel includes Normally Open, Normally Closed, and Common terminals. This configuration allows engineers to select the appropriate contact action for each application. Normally Open contacts suit loads requiring activation upon output energization. Normally Closed contacts work well for safety circuits and failsafe applications. The flexibility eliminates the need for external interposing relays in many cases.

Robust Contact Ratings and Capabilities

Engineers appreciate the substantial contact ratings of the Honeywell S8-2YREXW for industrial loads. Each relay switches up to 2 Amps at 250 Vac for AC applications. DC switching capability reaches 2 Amps at 30 Vdc for solenoid and relay control. The contacts carry 2 Amps continuously without overheating or degradation. Minimum load capability of 10 mA ensures reliable switching of low-power signals. This wide operating range suits both power and signal-level applications effectively.

Isolation and Protection Features

The S8-2YREXW provides 1500 Vrms isolation between coil circuits and field contacts. This isolation protects the control system from external voltage transients and noise. Each channel operates independently without electrical interaction between outputs. Internal flyback diodes suppress coil back-EMF during de-energization. These protection features extend relay life and reduce electrical noise generation. Engineers can connect loads of different voltage types within the same module safely.

Visual Status Indication

Individual LED indicators provide immediate visual feedback for each relay channel. A lit LED shows when the corresponding relay coil is energized. This feature simplifies troubleshooting during system commissioning and maintenance. Operators can verify output operation without additional test equipment. The LEDs remain visible through the module’s transparent housing or front panel. Quick identification of active outputs speeds up diagnostic procedures significantly.

Seamless Integration with Control Systems

The Honeywell S8-2YREXW connects directly to backplane power and communication buses. It occupies a single slot in standard industrial control racks. The detachable terminal block simplifies wiring and module replacement tasks. Similar to protection devices like the RMS TSG TZ C Static Trip unit, this module ensures reliable load control. Engineers can mix relay outputs with other module types in the same system. The standard form factor ensures compatibility with various controller platforms.

Application Versatility in Industrial Environments

The S8-2YREXW suits a wide range of industrial switching applications effectively. Common uses include motor starter control, valve actuation, and alarm annunciation. Form C contacts enable both energize-to-run and failsafe circuit designs. The 2 Amp rating handles most pilot duty industrial loads directly. Engineers appreciate the combination of isolation, indication, and switching capability. This relay module delivers reliable performance for decades of industrial service.
