Commercial burner systems require sophisticated flame supervision. The Honeywell RM7840M1017 delivers microprocessor-based control with communication capabilities. This unit functions as a flame safeguard control from the 7800 Series. Honeywell designed this system for gas, oil, or combination fuel burners.
Technical Specifications & Dimensions
This burner control provides programmable timing and Modbus connectivity. The table below outlines its core technical parameters.
| Parameter | Specification |
|---|---|
| Power Supply | 120V AC, 50/60 Hz |
| Flame Detection Types | Rectification, UV, or infrared |
| Pre-purge Timing | Programmable (15 to 600 seconds) |
| Trial for Ignition | Programmable (2 to 15 seconds) |
| Inter-purge Timing | Programmable (5 to 120 seconds) |
| Post-purge Timing | Programmable (15 to 600 seconds) |
| Communication Protocol | Modbus RTU (RS-485) |
| Flame Failure Response | 4 seconds maximum |
| Lockout Type | Manual reset required |
| Operating Temperature | -40°F to +140°F (-40°C to +60°C) |
| Unit Weight | 0.72 kg (1.59 lbs) |
| Dimensions (WxHxD) | 135 x 110 x 75 mm |
Construction and Interface Layout

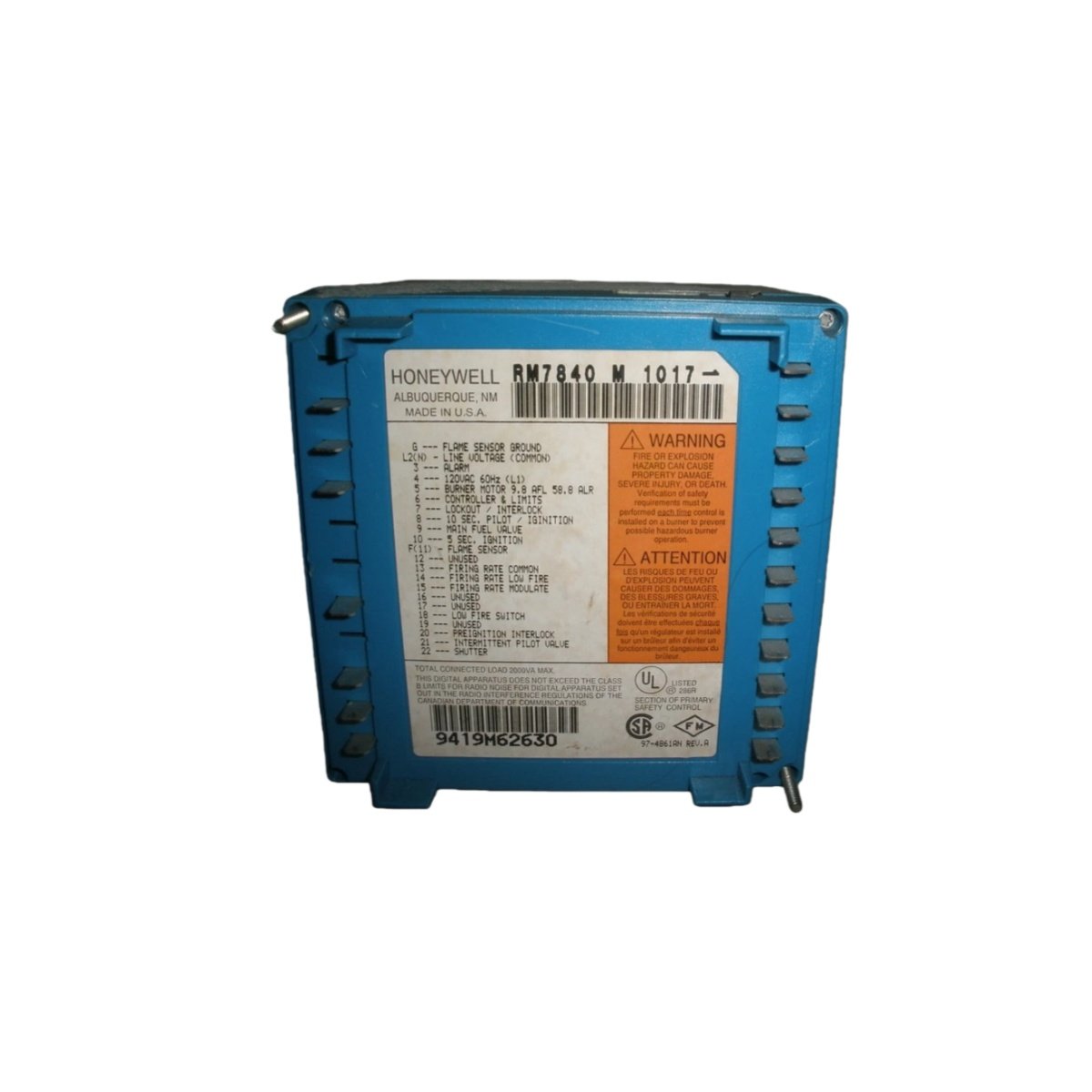

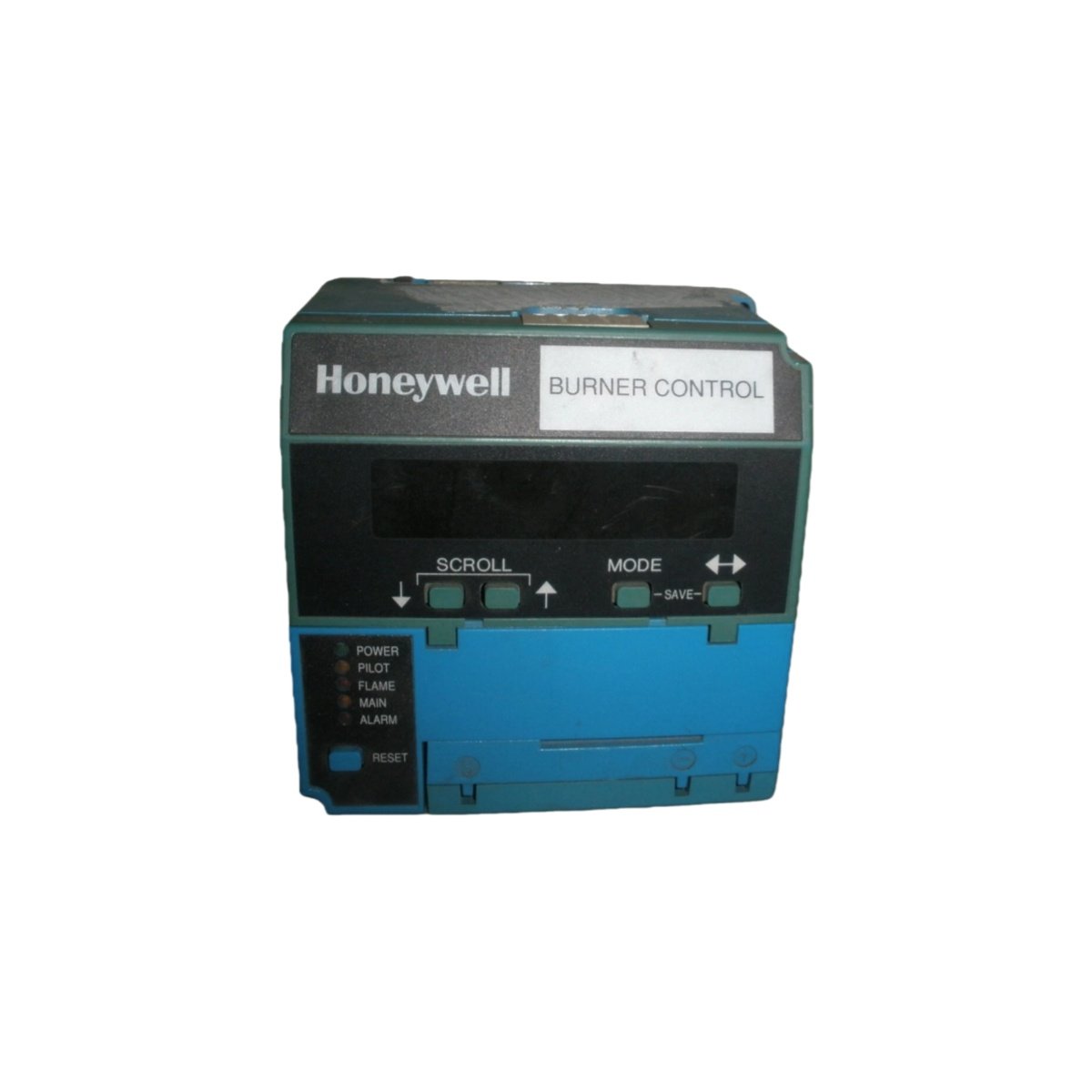

This control features a rugged plastic housing with a digital display. Such a design allows easy monitoring of sequence steps and fault codes. Furthermore, the Honeywell RM7840M1017 provides a front-accessible terminal strip for wiring. You will find 22 screw terminals on this interface. Each terminal accepts wire sizes from 0.2 to 2.5 mm². An RS-485 port enables remote monitoring via Modbus networks.
Energy Storage and Processing Logic
Unlike older electromechanical controls, this unit uses a 16-bit microprocessor. The board includes capacitors for power filtering and hold-up protection. Consequently, the Honeywell RM7840M1017 maintains stable timing during power sags. Non-volatile flash memory stores all configuration parameters permanently. This memory retains settings without any battery backup. The control also features a real-time clock for event logging purposes.
Installation and Mounting Requirements
Installing the Honeywell RM7840M1017 takes only a few minutes of work. The unit mounts directly onto a standard 4×4 inch junction box. It also supports panel mounting using the four corner holes. Always disconnect 120V power before wiring this control. The unit uses passive cooling through ventilation slots. This design eliminates fan noise and moving parts. Allow adequate clearance for network cable connections.
Integration with Burner Management Systems
This burner control works perfectly with commercial and industrial burners. It interfaces with flame rods, UV scanners, and infrared detectors. Operators can read fault codes from the front display or remotely. The Honeywell RM7840M1017 also provides Modbus communication for SCADA integration. Consequently, this system remains an excellent choice for advanced burner retrofits. The unit delivers consistent performance across a -40°F to +140°F temperature range.
Details
| Weight | 0.2 kg |
|---|---|
| Dimensions | 85 × 65 × 30 mm |
