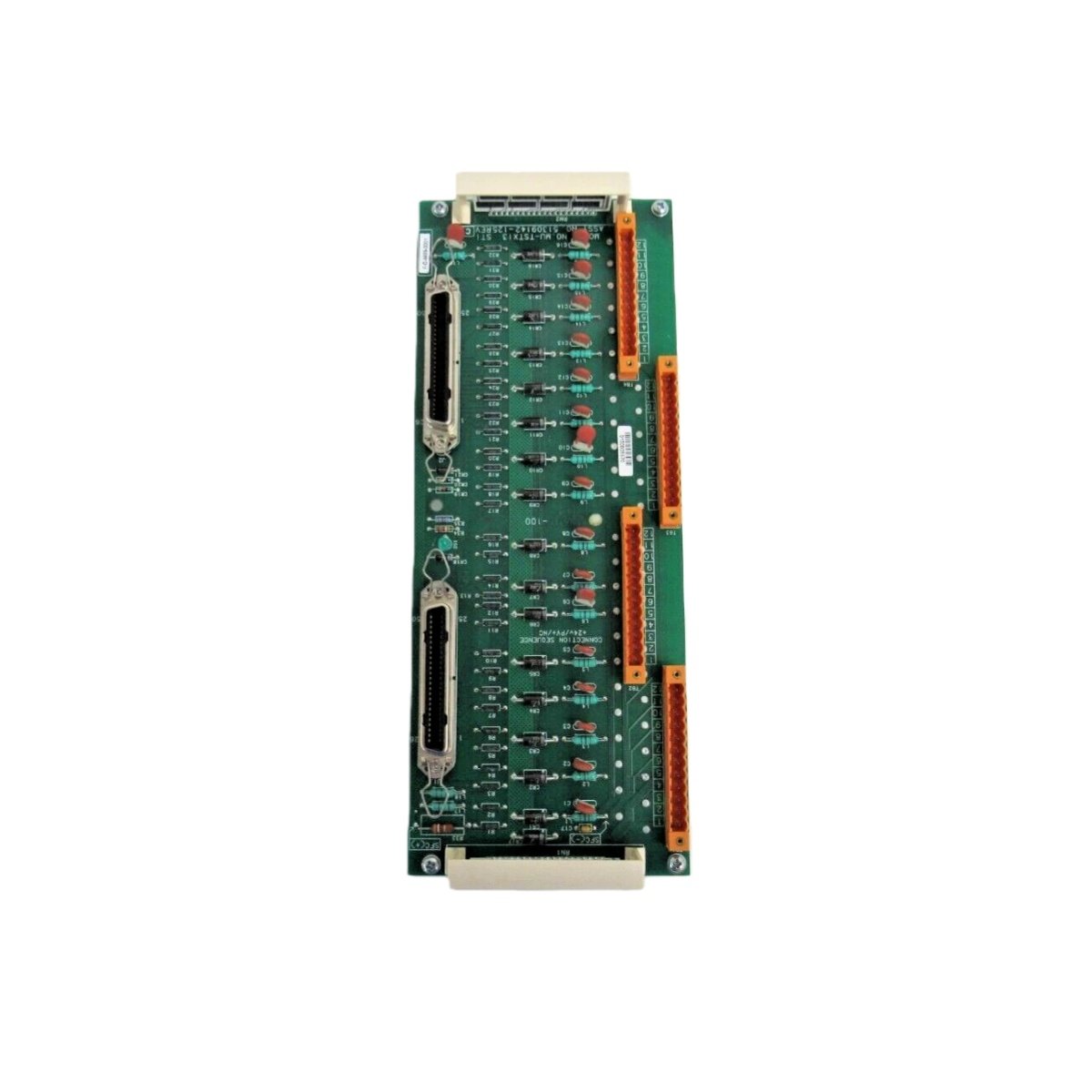

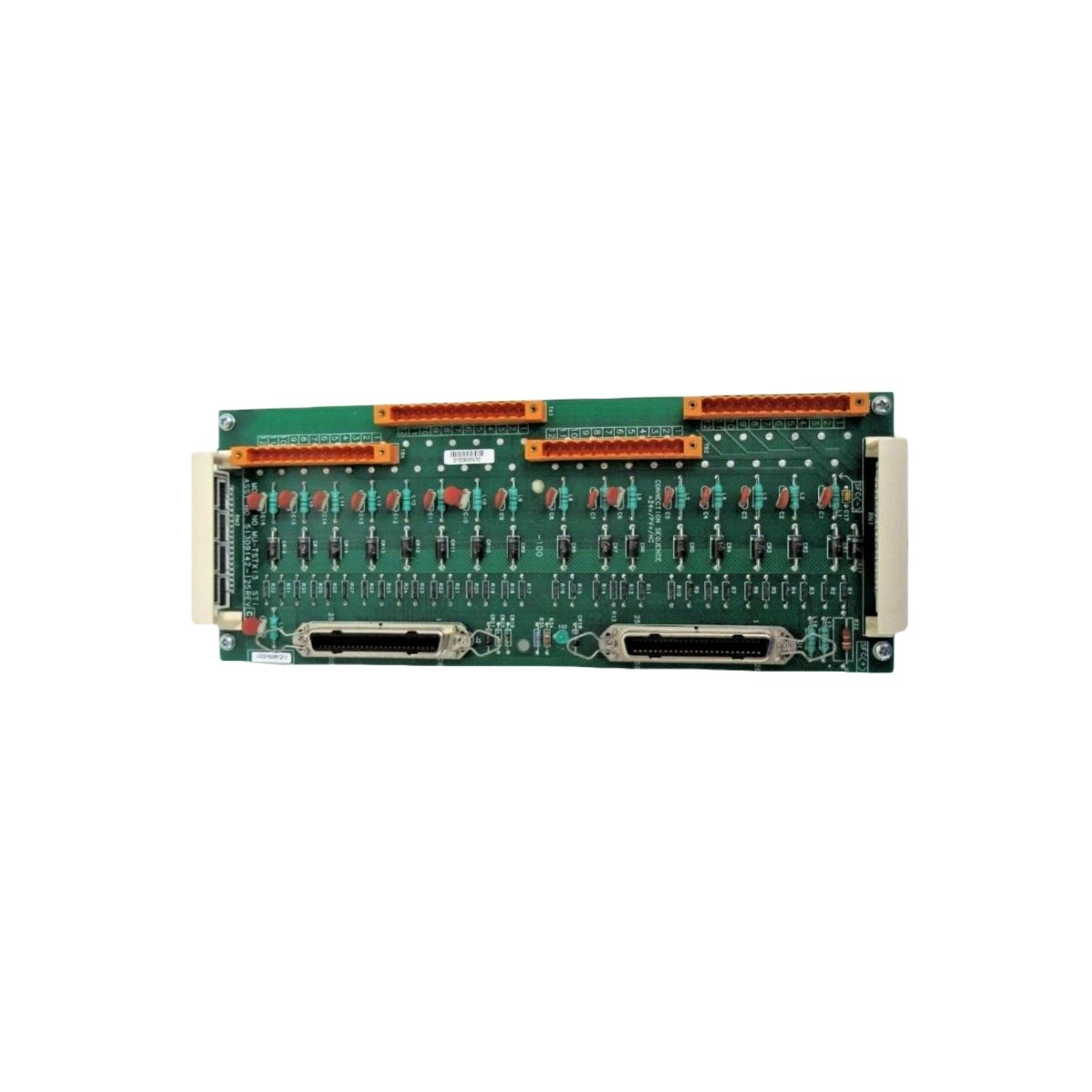

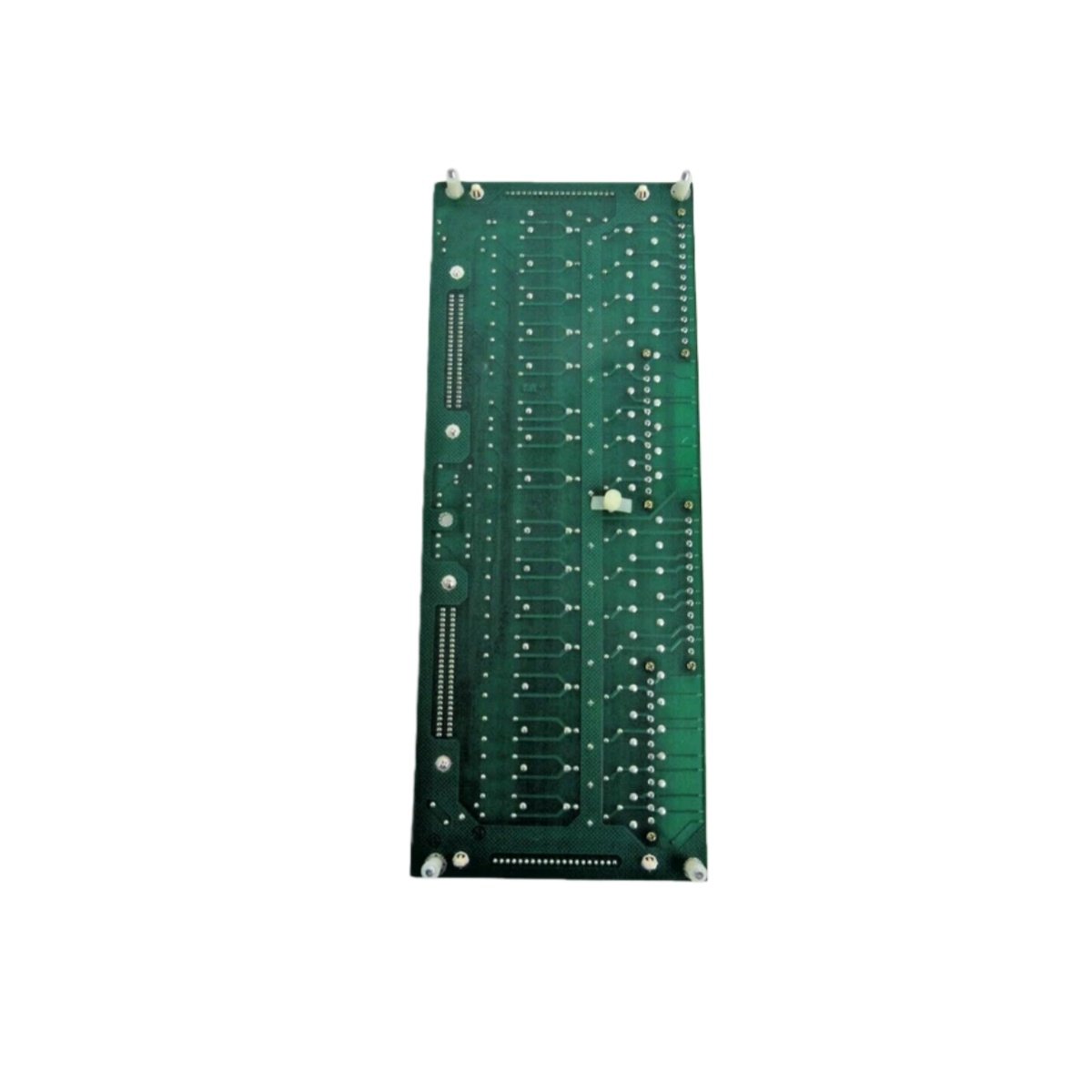

The Honeywell MU-TSTX13 operates as a Smart Transmitter Interface module within the TDC 3000 distributed control system. This module enables direct digital communication with HART and DE protocol smart transmitters throughout the plant. It consequently provides access to multiple variables and diagnostic data beyond the primary process measurement.

Physical Characteristics and Build Quality

Engineers designed this module for installation in TDC 3000 I/O racks with standard form factor dimensions. The unit measures approximately 30 centimeters in height, 3 centimeters in width, and 20 centimeters in depth. Its total weight reaches roughly 1.1 kilograms, reflecting robust construction with shielding components. The metal enclosure ensures reliable operation in industrial control room environments.

Technical Specifications

Multi-Drop Transmitter Capability

The MU-TSTX13 supports multi-drop connections where multiple transmitters share a single wire pair. Each channel accommodates up to 15 HART devices or 30 Honeywell DE transmitters with unique addresses. The module polls each device sequentially to collect primary and secondary variables. This architecture significantly reduces wiring costs in large-scale installations.

HART Protocol Support

HART communication overlays digital signals on the standard 4-20 mA analog current loop. The module reads the analog value for primary control while accessing digital data simultaneously. Secondary variables like sensor temperature or diagnostic information become available through the digital link. Consequently, users gain comprehensive device insights without additional wiring.

Honeywell DE Protocol Support

The module also supports Honeywell’s proprietary DE digital protocol for legacy transmitter integration. DE communication provides fully digital transmission without an analog signal component. Many existing Honeywell installations use DE transmitters for critical measurements. The MU-TSTX13 bridges these devices into modern TDC 3000 control strategies.

Multiple Variable Access

Each smart transmitter provides access to multiple process variables beyond the primary measurement. A typical pressure transmitter might also report sensor temperature and static pressure. The module collects all these values and makes them available to the control system. Therefore, users gain additional process insights without installing extra hardware.

Diagnostic Data Collection

Smart transmitters continuously perform self-diagnostics and report their health status. The module collects these diagnostics and forwards them to system maintenance software. Early warnings of transmitter issues allow predictive maintenance before failures occur. This capability significantly reduces unplanned downtime in continuous processes.

System Architecture

The Honeywell MU-TSTX13 mounts in TDC 3000 I/O racks and connects to field transmitters through termination panels. It communicates with the control processors via the Hiway data highway. Multiple modules can operate in parallel for very large transmitter populations. The system architecture supports mixed analog and digital devices seamlessly.

Configuration and Addressing

You configure each transmitter address through the TDC 3000 engineering workstation software. The module requires unique addresses for each device on a multi-drop segment. Configuration includes update rates, variable selection, and alarm thresholds for each transmitter. All settings store in non-volatile memory for automatic startup.

Application Benefits

This interface module excels in facilities with large numbers of smart transmitters. Refineries, chemical plants, and power generation facilities commonly use this technology. The ability to access multiple variables reduces hardware requirements significantly. Additionally, diagnostic access improves maintenance efficiency and process reliability.
