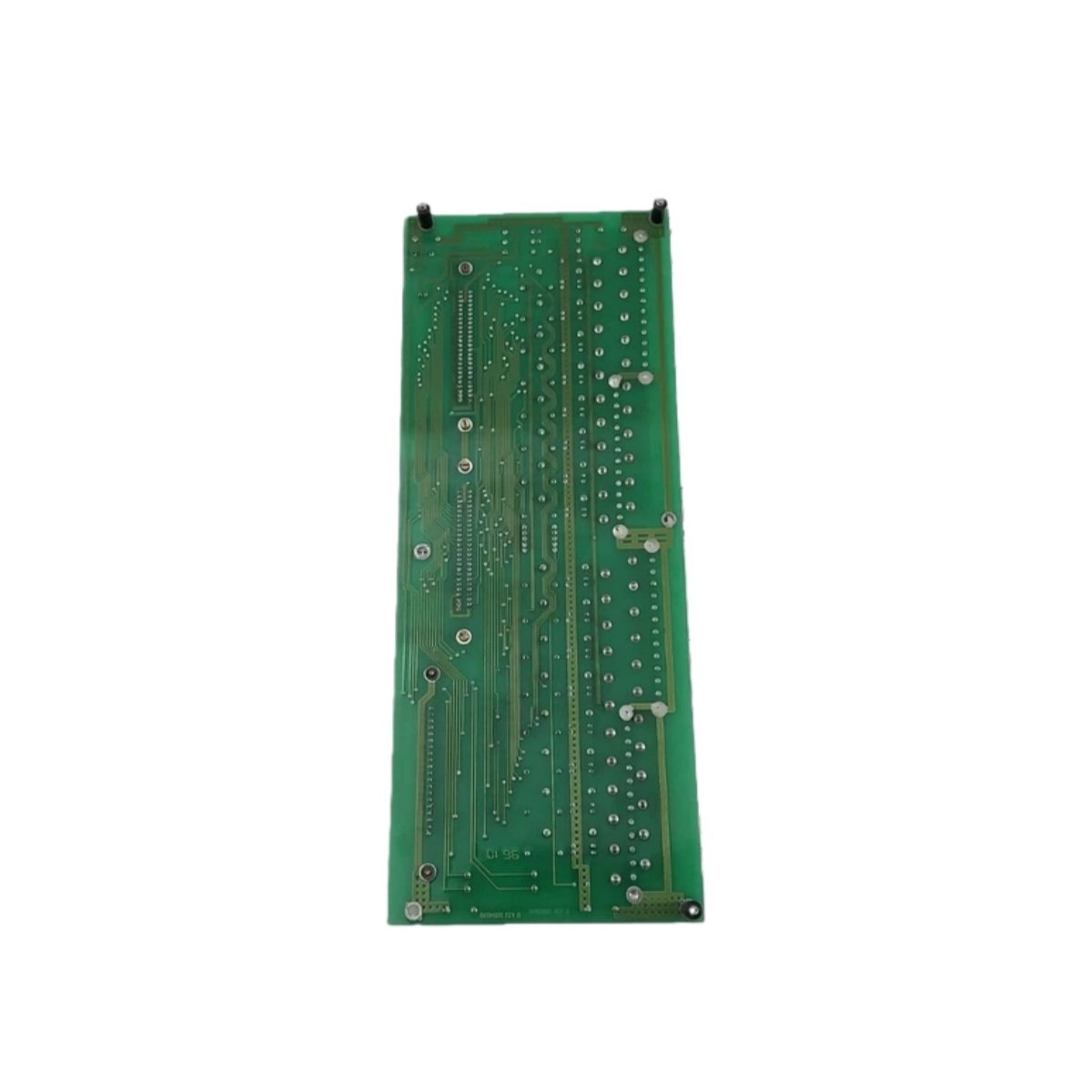

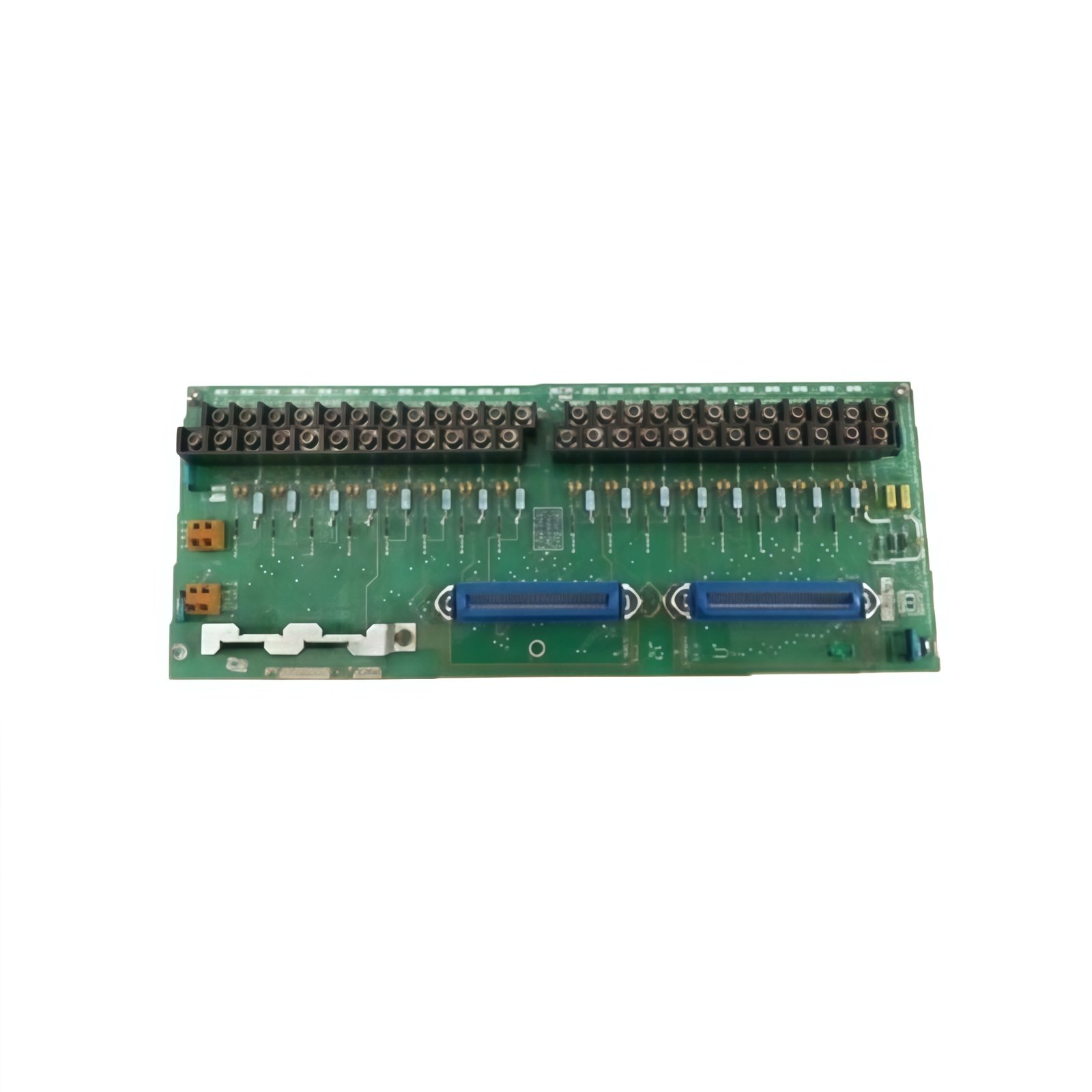

The Honeywell MU-TAIH52 51304337-200 functions as a high-level analog input module for Honeywell’s Experion PKS and Experion LX control systems. This unit accurately acquires and converts analog signals from field transmitters and sensors. Consequently, it provides reliable process variable data for monitoring and control in industrial applications.

Core Technical Specifications

We engineered the Honeywell MU-TAIH52 51304337-200 for high-precision signal acquisition across a wide range of input types. The table below details its essential physical and electronic parameters:

Multi-Signal Input Flexibility

The MU-TAIH52 accepts three common analog signal types: ±10 V, 0-20 V, and 4-20 mA. You can connect a wide variety of field instruments directly without external signal conditioners. Therefore, this module simplifies wiring and reduces the need for additional components in your control cabinet.

High-Resolution 16-Bit Conversion

Each of the 16 input channels features 16-bit analog-to-digital conversion for exceptional signal fidelity. This high resolution captures fine variations in process variables, enabling precise monitoring and control. As a result, the Honeywell MU-TAIH52 51304337-200 delivers the accuracy required for critical process applications.

Exceptional Accuracy Across Temperature Extremes

The module maintains ±0.1% of full-scale accuracy across its entire operating temperature range of -40°C to +85°C. This specification ensures reliable performance in both arctic environments and high-heat industrial settings. Consequently, you can deploy the same module globally without accuracy concerns.

Wide Environmental Tolerance for Global Use

Honeywell designed this analog input module to withstand extreme storage and operating temperatures from -40°C to +85°C. It also functions reliably in humidity levels from 5% to 95% non-condensing. Therefore, the 51304337-200 suits installations in diverse climates, from desert facilities to tropical locations.

Compact Space-Saving Design

With dimensions of just 120 mm x 80 mm x 60 mm, this module occupies minimal space within your control cabinet. Its compact form factor allows for high-density I/O installations in space-constrained environments. Weighing only 0.3 kg, it adds negligible weight while providing 16 channels of analog input.

Seamless Experion System Integration

You can easily install the MU-TAIH52 into Experion PKS or Experion LX I/O racks alongside other modules. It communicates directly with the controllers, presenting high-resolution process data for operator displays and control algorithms. Therefore, it integrates seamlessly into Honeywell’s distributed control architecture.
