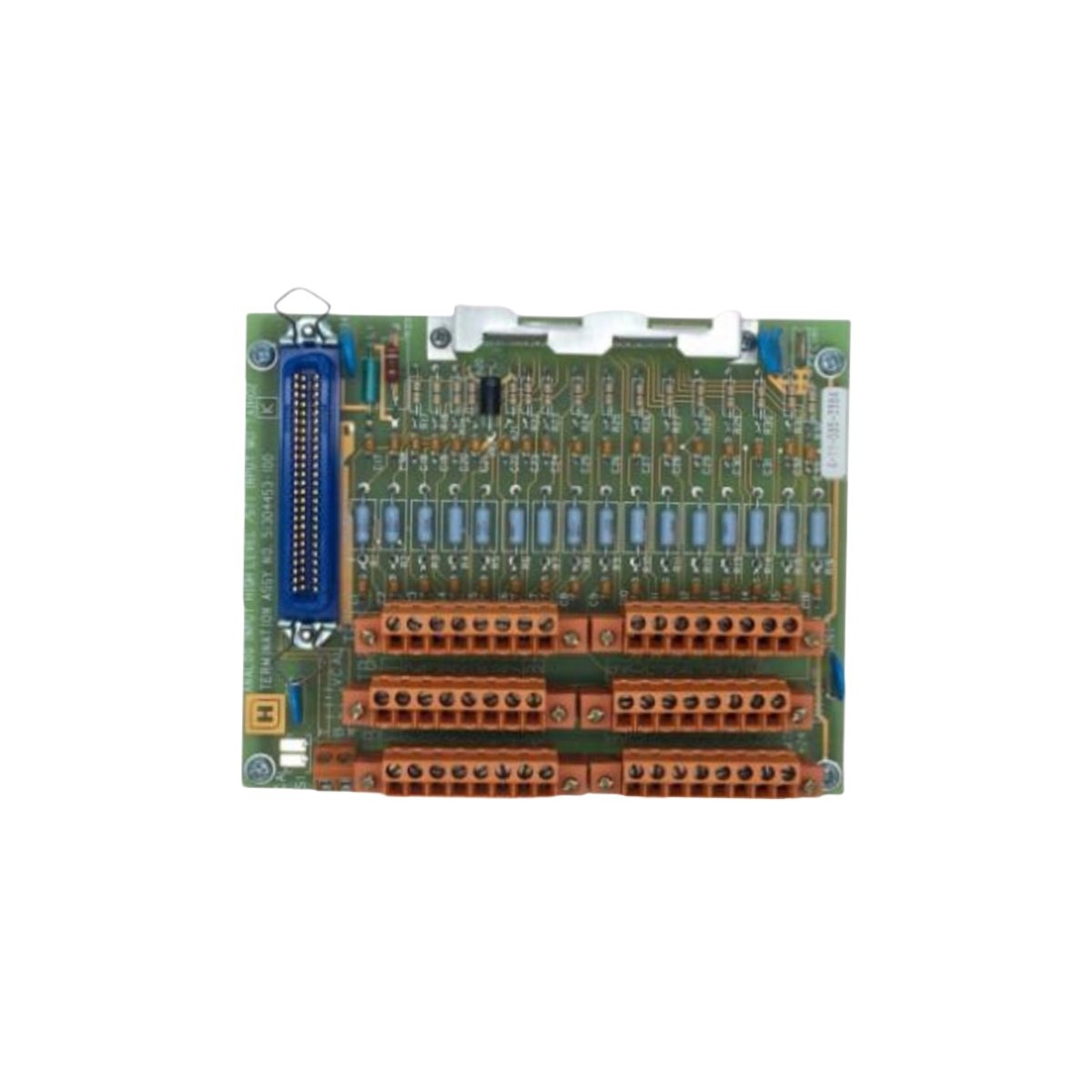

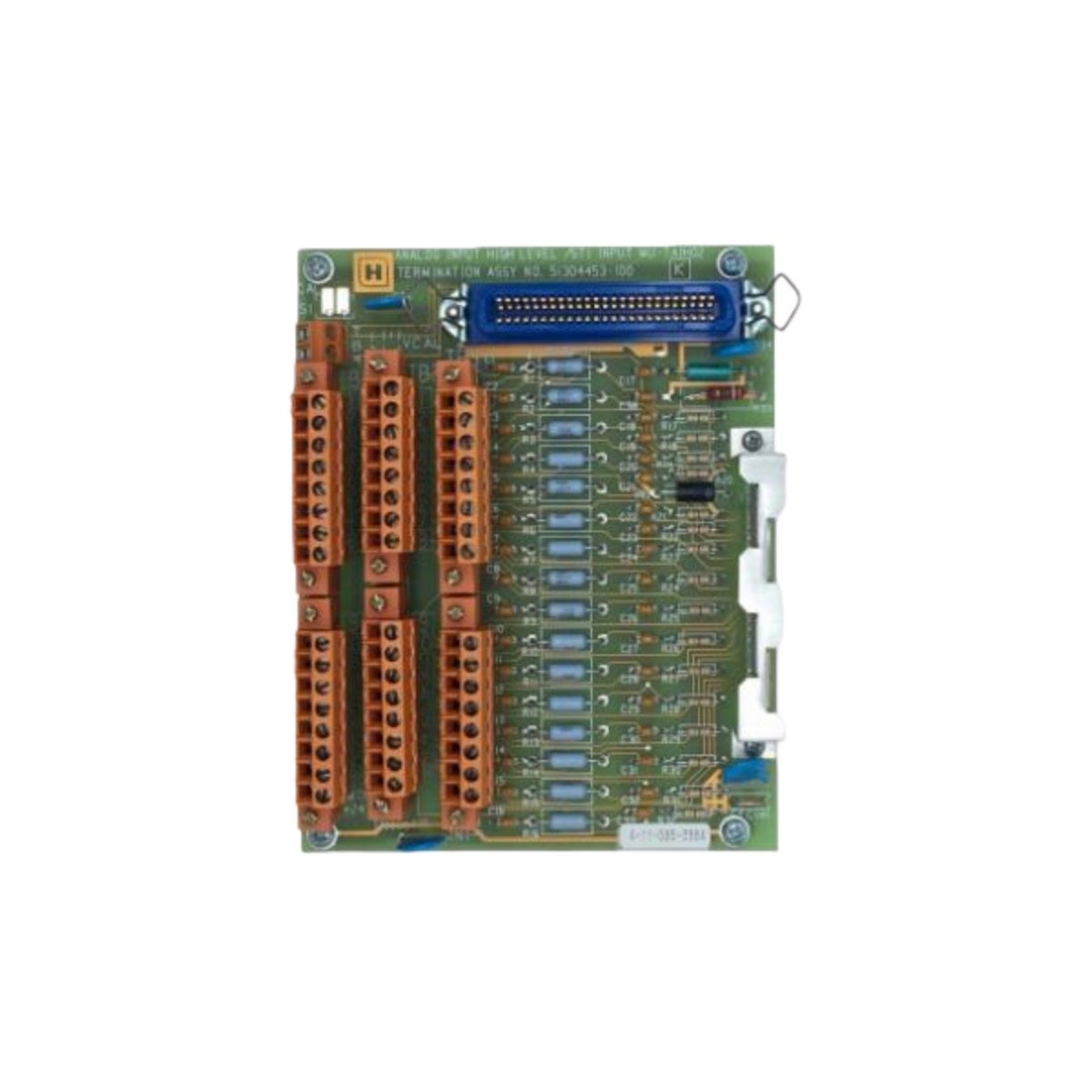

The Honeywell MU-TAIH02 is a high-performance analog input module for process control systems. This module accurately converts analog sensor signals into precise digital data. Furthermore, it ensures reliable operation in demanding industrial environments for critical monitoring loops.
Detailed Technical Specifications and Design
Engineers select this module for its high accuracy and robust signal conditioning capabilities. It integrates seamlessly into compatible Honeywell control system chassis. Let’s examine its detailed technical and physical parameters below.
Primary Technical Specifications:
| Parameter | Specification |
|---|---|
| Manufacturer / Brand | Honeywell |
| Product Model | MU-TAIH02 |
| Product Category | Process Control Analog Input Module |
| Input Channels | 8 channels (typical configuration) |
| Supported Signal Types | 4-20 mA, 0-10V, Thermocouple, RTD (configurable) |
| Analog-to-Digital Resolution | 16-bit |
| Typical Accuracy | ±0.05% of reading |
| Input Impedance | >1 MΩ for voltage inputs |
| Common Mode Rejection | >120 dB @ 50/60 Hz |
| Module Update Rate | Configurable per channel |
| Power Supply | 24 VDC (system bus powered) |
| Operating Temperature | -40°C to +70°C |
| Dimensions (W x H x D) | Refer to Honeywell mounting template |
| Weight | Approximately 0.4 kg (varies by enclosure) |
Application and System Integration
You integrate the MU-TAIH02 to connect temperature, pressure, and flow transmitters to your DCS. Its high-resolution 16-bit ADC captures minute signal variations with excellent fidelity. Consequently, this module provides the data integrity needed for advanced regulatory control and optimization.
The exceptional common-mode rejection protects signals from electrical noise in plant environments. For complete configuration and wiring details, always consult the official Honeywell technical documentation. This module is essential for building a high-accuracy measurement layer in modern process automation.
Details
| Weight | 0.91 kg |
|---|---|
| Dimensions | 110 × 55 × 90 mm |
