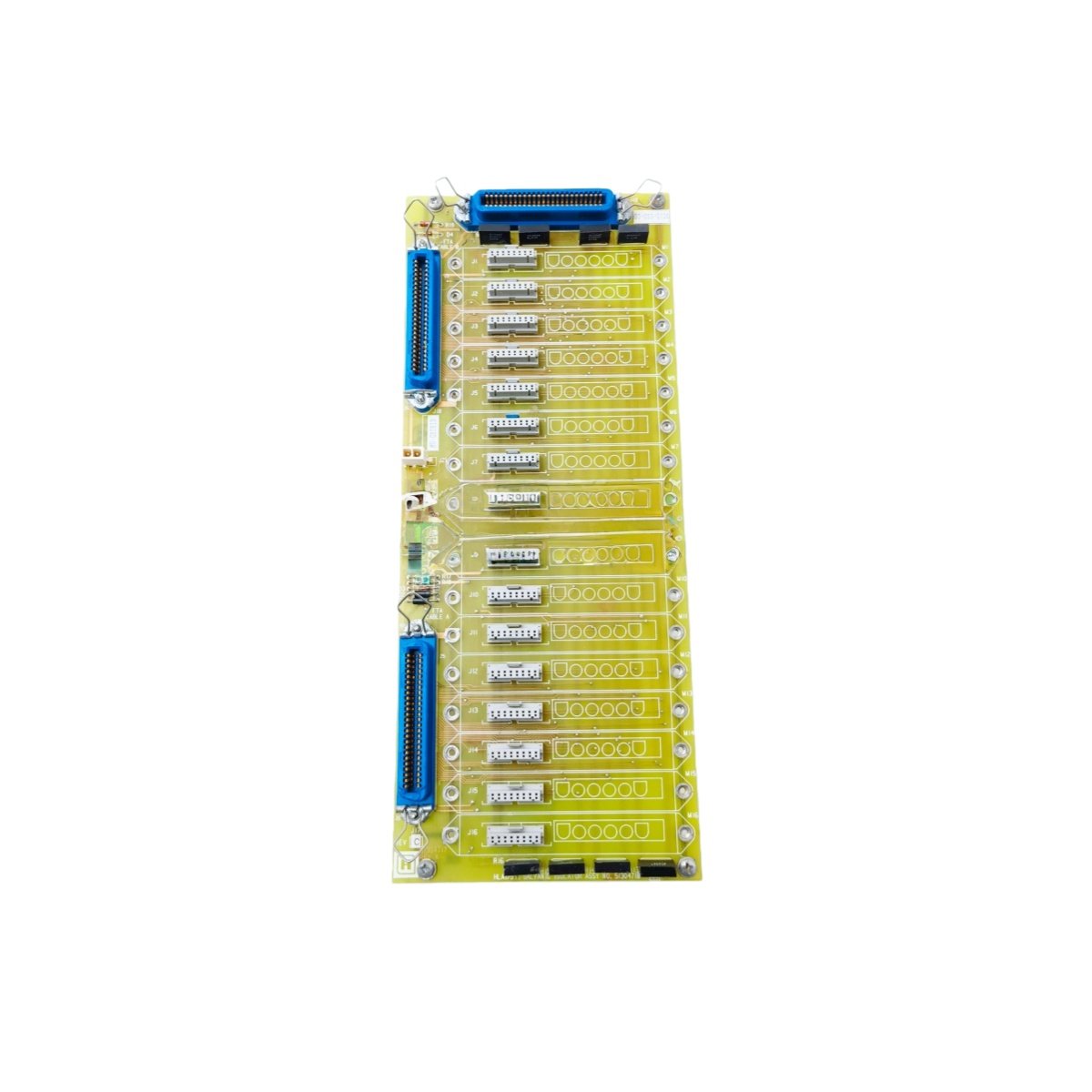

The Honeywell MU-GAIH13 delivers critical signal acquisition for your high-level analog field devices. As a key component, it integrates directly into the robust Honeywell Fault Tolerant Automation (FTA) system. This module converts 4-20mA or 0-10V signals from sensors and transmitters with high precision. Moreover, it provides essential protection for sensitive control systems against electrical disturbances.

Core Technical Specifications and Safety Features

Engineers rely on this module for its 16 channels of galvanically isolated high-level analog input (HLAI). Each channel features secure compression terminals, ensuring reliable connections and ease of maintenance. The compact module adheres to a standard “Size B” form factor, measuring 12 inches (307 mm) for predictable panel integration. Furthermore, it supports full redundancy, guaranteeing continuous operation even during a channel failure.

Detailed Technical Parameter Table

For clarity, the following table outlines the primary specifications for the Honeywell MU-GAIH13.

Application Benefits for Critical Systems

The Honeywell MU-GAIH13 is essential for process control loops where signal integrity is paramount. Its galvanic isolation protects the FTA system from ground loops, surges, and electrical noise. Consequently, it is ideal for use in power generation, oil & gas, and chemical processing environments. The module’s design ensures reliable performance, meeting both operational safety and international compliance standards.
