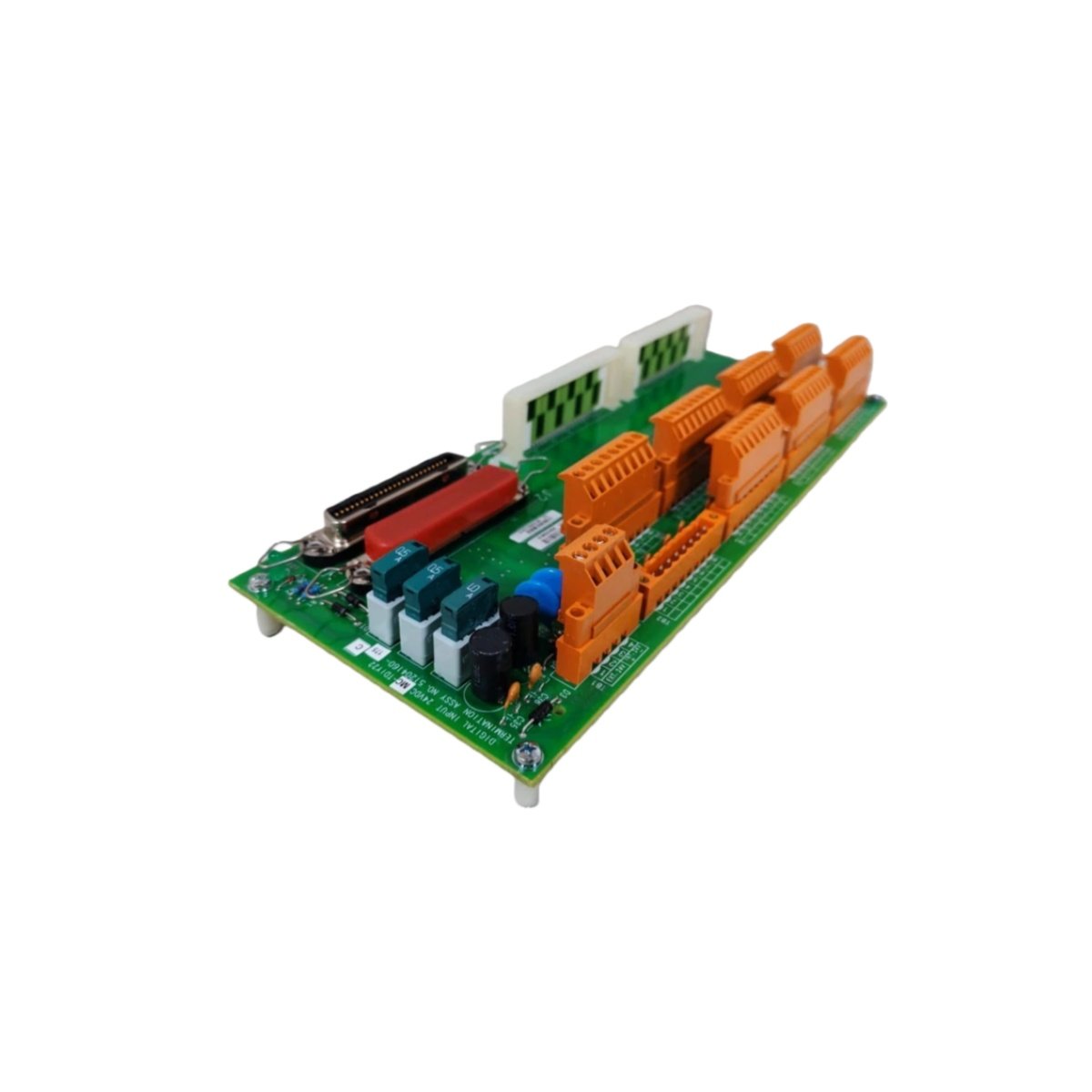

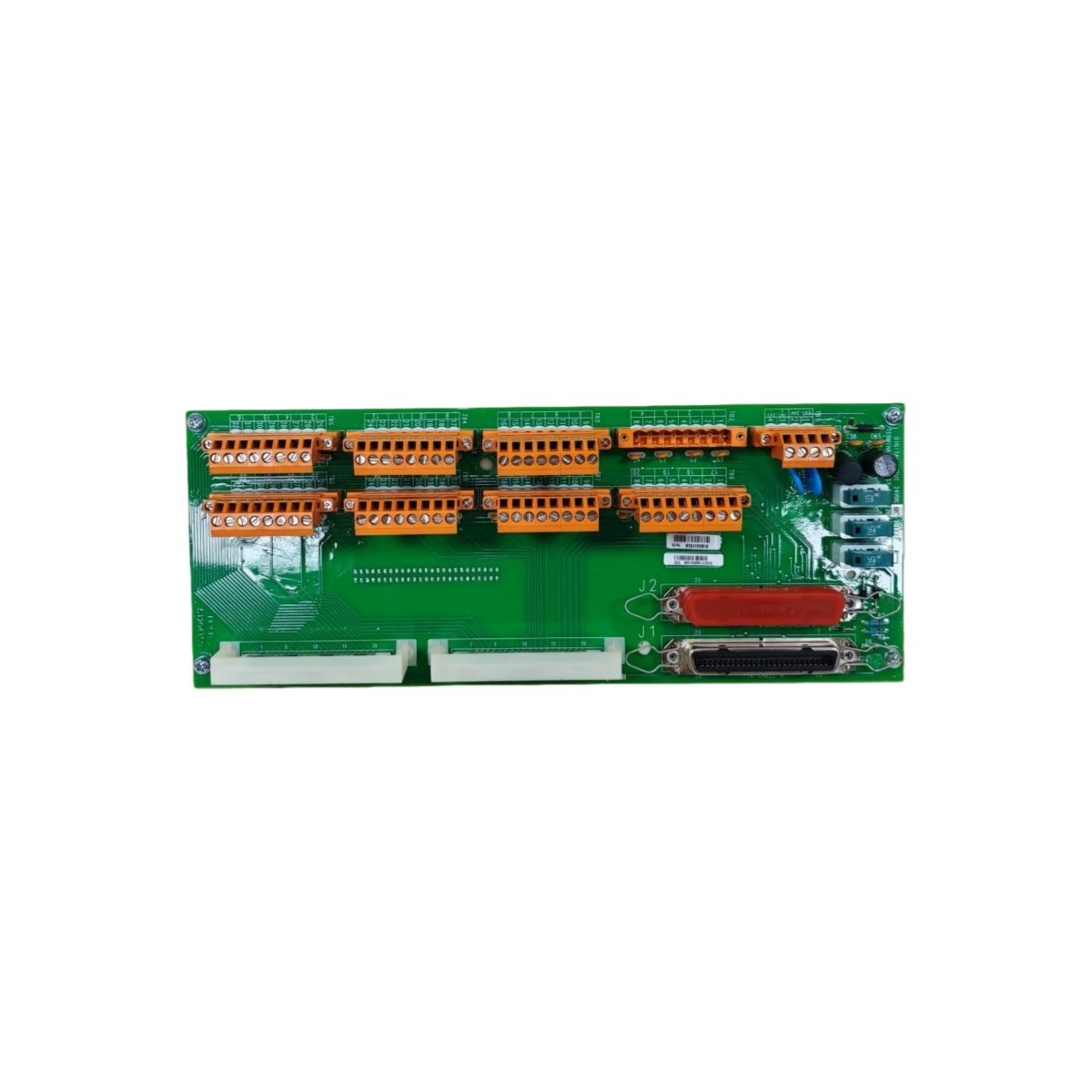

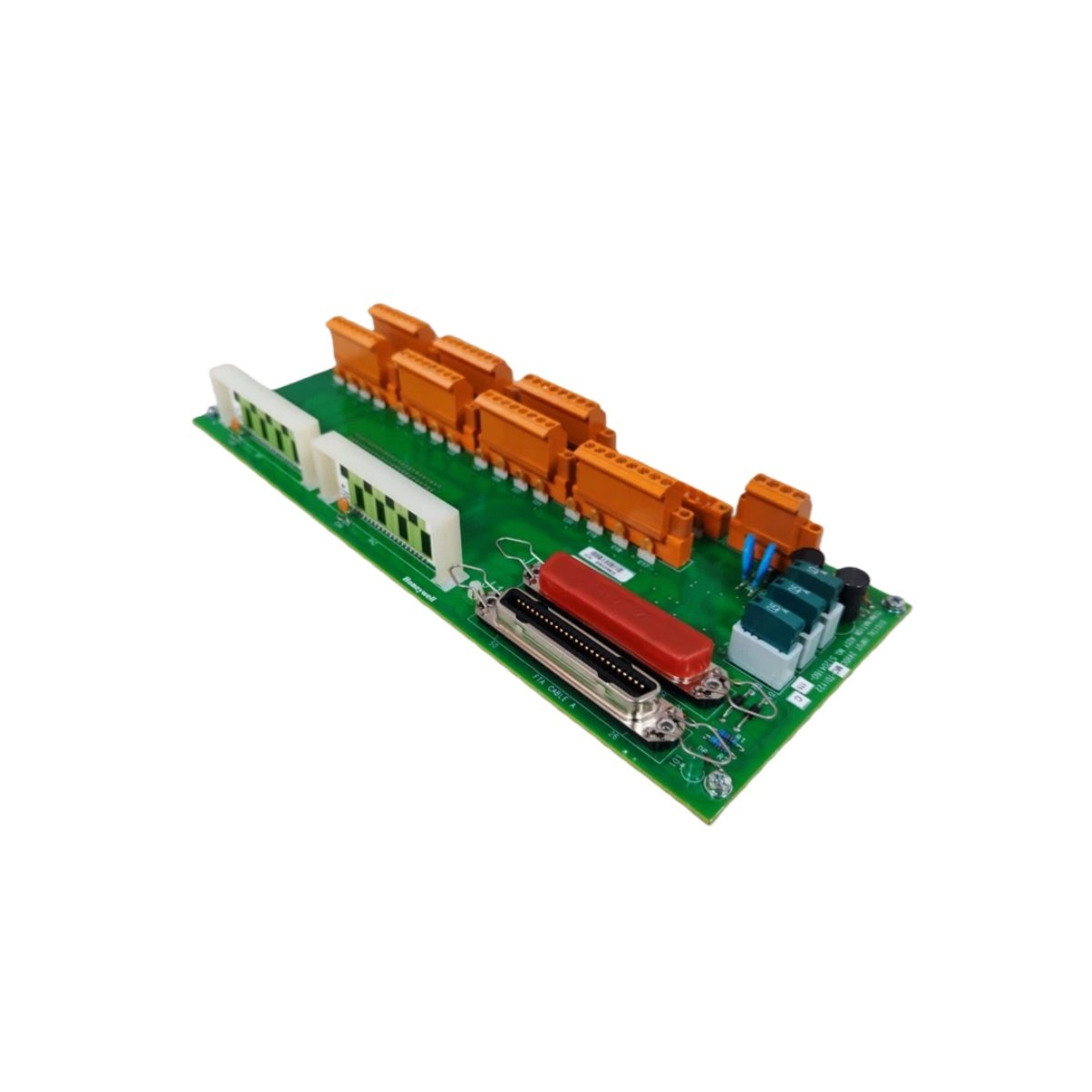

The Honeywell MC-TDIY22 serves as a high-density Digital Input Field Termination Assembly (FTA), engineered for seamless integration with Honeywell’s distributed control systems. This unit provides the critical interface between field wiring and the input/output modules, ensuring reliable signal transmission. Process facilities require this assembly to maintain signal integrity across numerous discrete field devices.

Physical Design and Mechanical Specifications

Honeywell constructed the MC-TDIY22 with a space-efficient footprint, measuring 7.0 inches by 4.5 inches by 2.5 inches. This compact form factor, equivalent to 17.8 centimeters by 11.4 centimeters by 6.4 centimeters, allows for dense mounting within control cabinets. Despite its small size, the assembly weighs approximately 1 kilogram, reflecting its robust construction quality.

The assembly includes clearly labeled termination points for straightforward field wiring connections. Technicians can quickly identify and connect field devices without extensive training. Furthermore, the mechanical design facilitates easy access for maintenance and troubleshooting activities.

Input Channel Configuration and Electrical Ratings

This field termination assembly accommodates thirty-two isolated input channels, each accepting 24 VDC nominal signals. Every channel operates independently, providing flexibility for various field contact types. Consequently, the MC-TDIY22 suits applications monitoring pushbuttons, limit switches, and proximity sensors.

Each input channel supports a load voltage range spanning from -15 to 30 VDC. The assembly can deliver up to 500 milliamperes of current across all channels combined. Specifically, each channel draws approximately 200 milliamperes during normal operation, ensuring adequate power for field devices.

Isolation and Protection Features

The Honeywell MC-TDIY22 incorporates substantial isolation to protect control system electronics from field-side disturbances. It provides 1500 VDC of isolation between field wiring and the system backplane. This isolation prevents ground loops and protects sensitive components from voltage transients.

Therefore, the assembly maintains reliable operation even in electrically noisy industrial environments. The robust isolation withstands common industrial voltage spikes without compromising signal accuracy. This protection extends the lifespan of both the FTA and connected input modules.

Power Requirements and Energy Efficiency

For power considerations, the MC-TDIY22 consumes a maximum of 1.5 watts during full operation. This low power consumption minimizes heat generation within control cabinets. Consequently, facilities can mount multiple assemblies in close proximity without excessive cooling requirements.

The assembly derives its operating power directly from the backplane connection. It requires no external power supply, simplifying installation and reducing component count. This design approach aligns with modern industrial practices favoring reduced energy consumption.

Technical Specifications Summary

The following table provides a comprehensive overview of the MC-TDIY22 technical parameters:

Why Select This Honeywell Termination Assembly

Ultimately, the Honeywell MC-TDIY22 delivers exceptional value for system integrators and plant maintenance teams. Its thirty-two channel capacity reduces the total number of assemblies required for large installations. This efficiency translates directly to lower cabinet space requirements and reduced wiring complexity.

Honeywell’s engineering excellence ensures this FTA provides reliable service in continuous industrial operation. The rugged construction withstands temperature variations, humidity, and vibration common in processing facilities. You can explore compatible system components and additional technical resources through our product listings.
