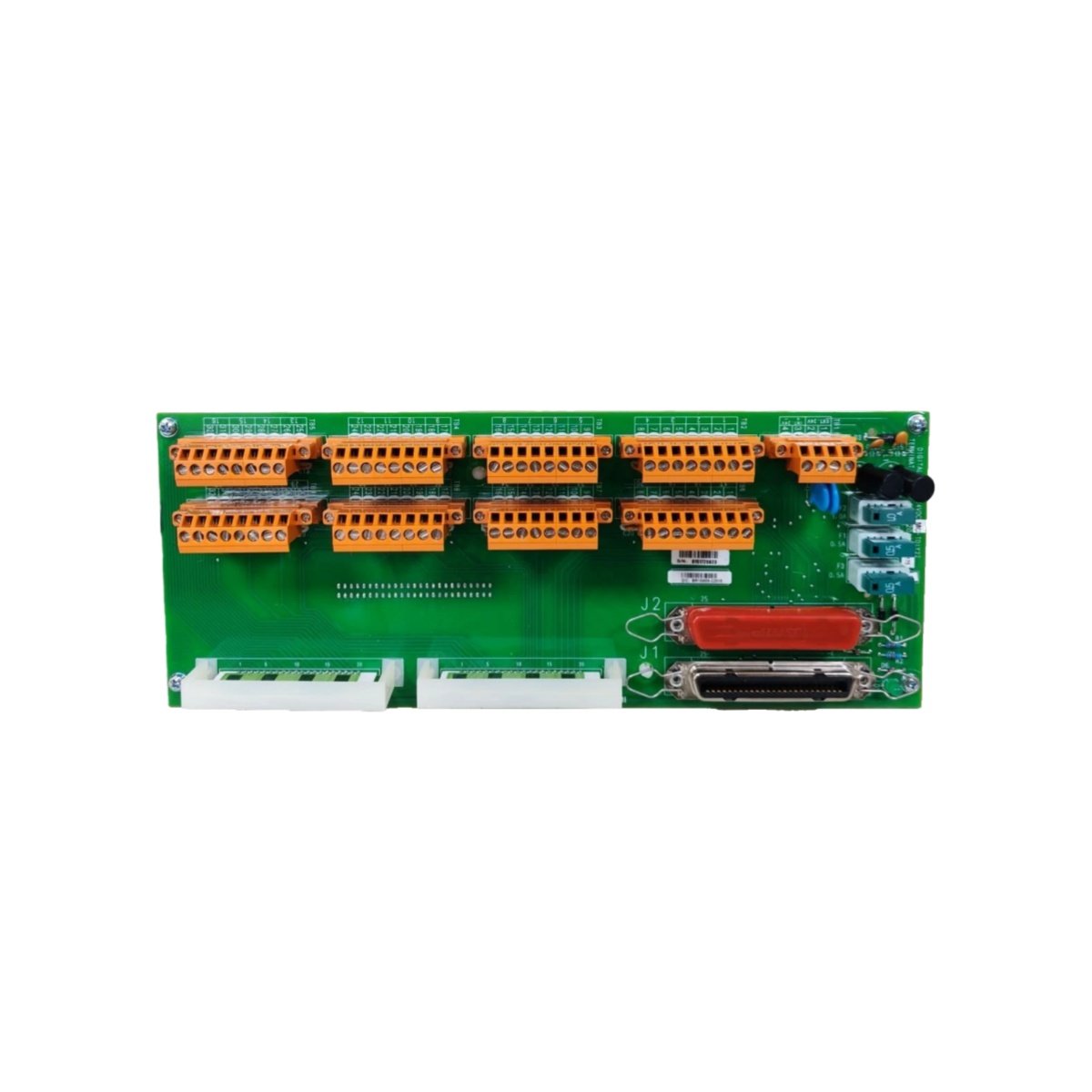

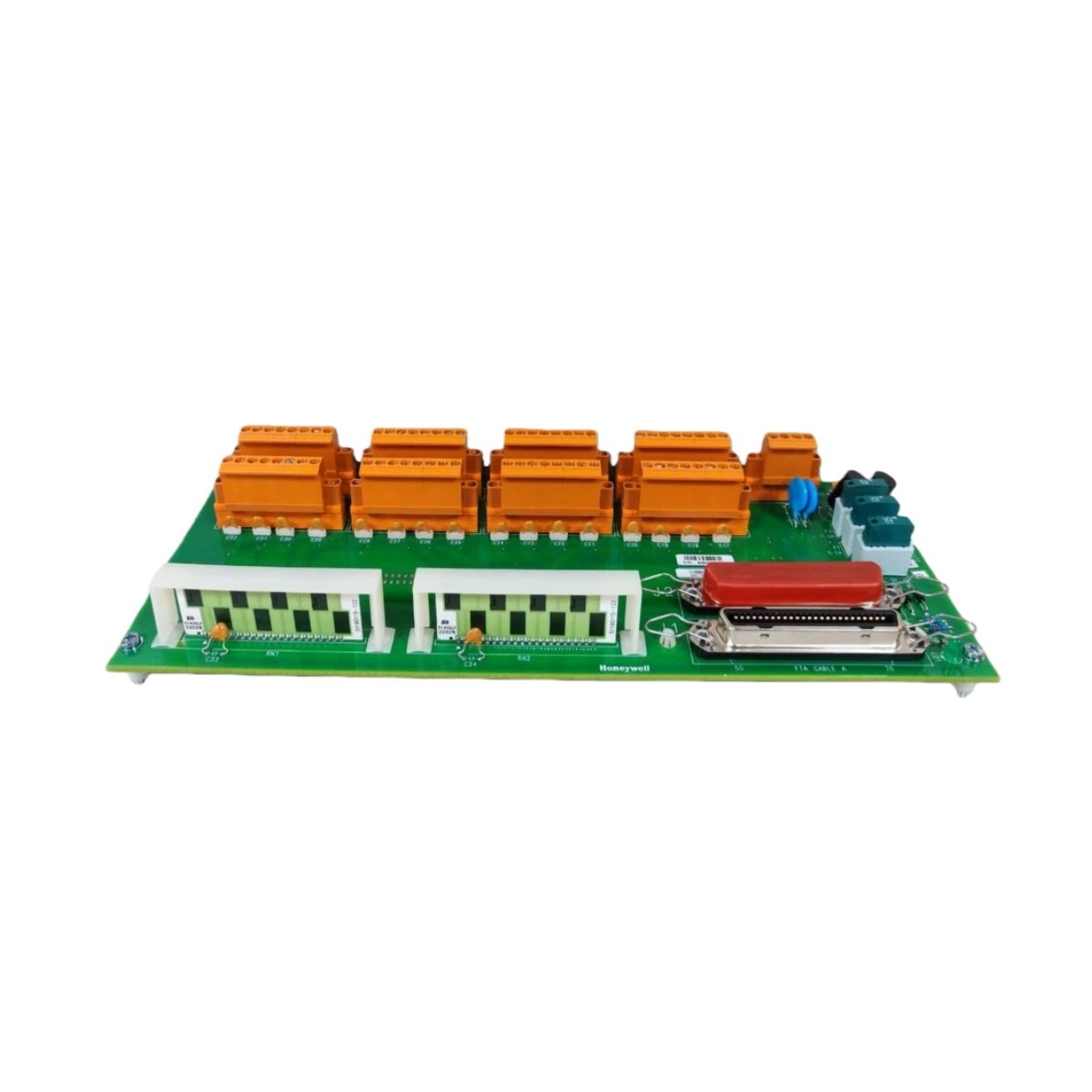

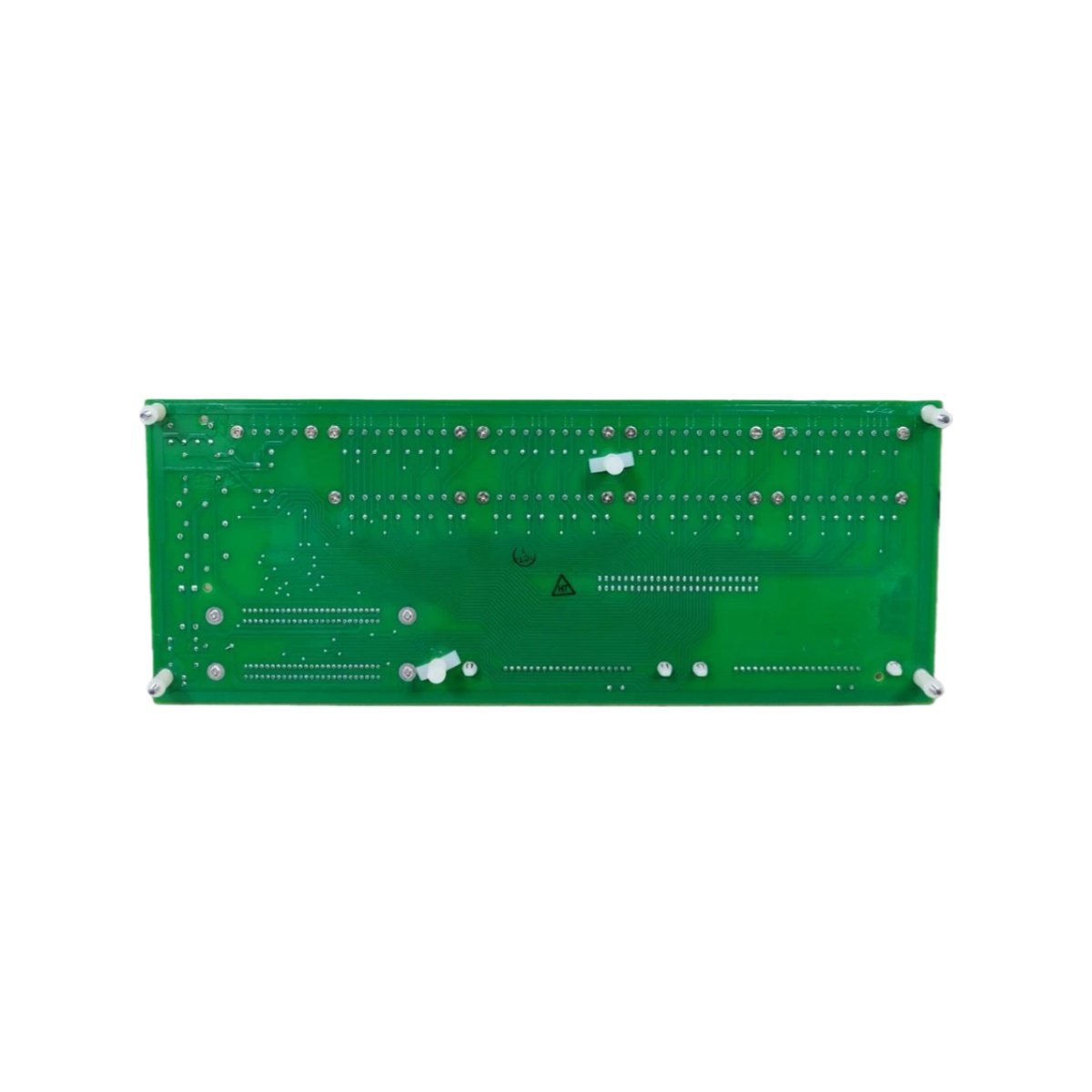

The Honeywell MC-TAIH22 is a powerful Field Termination Assembly for process control. This enhanced FTA provides forty high-level analog input channels. Furthermore, it integrates seamlessly with Honeywell Process Manager I/O systems.
Delivering Precision Signal Acquisition
This unit delivers precise signal acquisition for critical process variables. It accepts either a 2-10 Vdc or a 0-20 mA input signal per channel. Moreover, the module ensures an impressive accuracy of ±0.25% of full scale. Its 12-bit resolution guarantees high-fidelity signal conversion for reliable data.
Designed for Robust System Integration
Designed for robust system integration, the MC-TAIH22 features a 4-20 mA output. This output channel supports a stable impedance of 800 ohms. Additionally, the assembly operates efficiently on a standard 24 Vdc power supply. Its compression terminals and System Termination Interface ensure secure, reliable connectivity.
Complete Technical Specifications
| Feature | Specification |
|---|---|
| Manufacturer & Series | Honeywell Process Manager I/O |
| Model | MC-TAIH22 |
| Product Type | Enhanced Power High-Level Analog Input FTA |
| Number of Inputs | 40 |
| Input Type & Range | High-Level; 2-10 Vdc or 0-20 mA |
| Input Accuracy | ±0.25% of Full Scale |
| Resolution | 12-bit |
| Output Signal | 4-20 mA |
| Output Impedance | 800 Ohms |
| Power Supply | 24 Vdc |
| Dimensions (HxWxD) | 22 cm x 2.7 cm x 14 cm (approx.) |
| Weight | Approximately 0.8 kg |
| Mounting | Standard Rittal Cabinet (Honeywell hardware required) |
| Compliance | CE Mark |
Installation and Application Notes
The Honeywell MC-TAIH22 requires installation in a specified Rittal cabinet. You must use genuine Honeywell or Rittal mounting hardware for safety. Consequently, this ensures optimal performance and meets all manufacturer specifications. Its enhanced power capability reliably supports demanding industrial automation applications.
Details
| Weight | 0.8 kg |
|---|---|
| Dimensions | 220 × 27 × 140 mm |
