Product Description

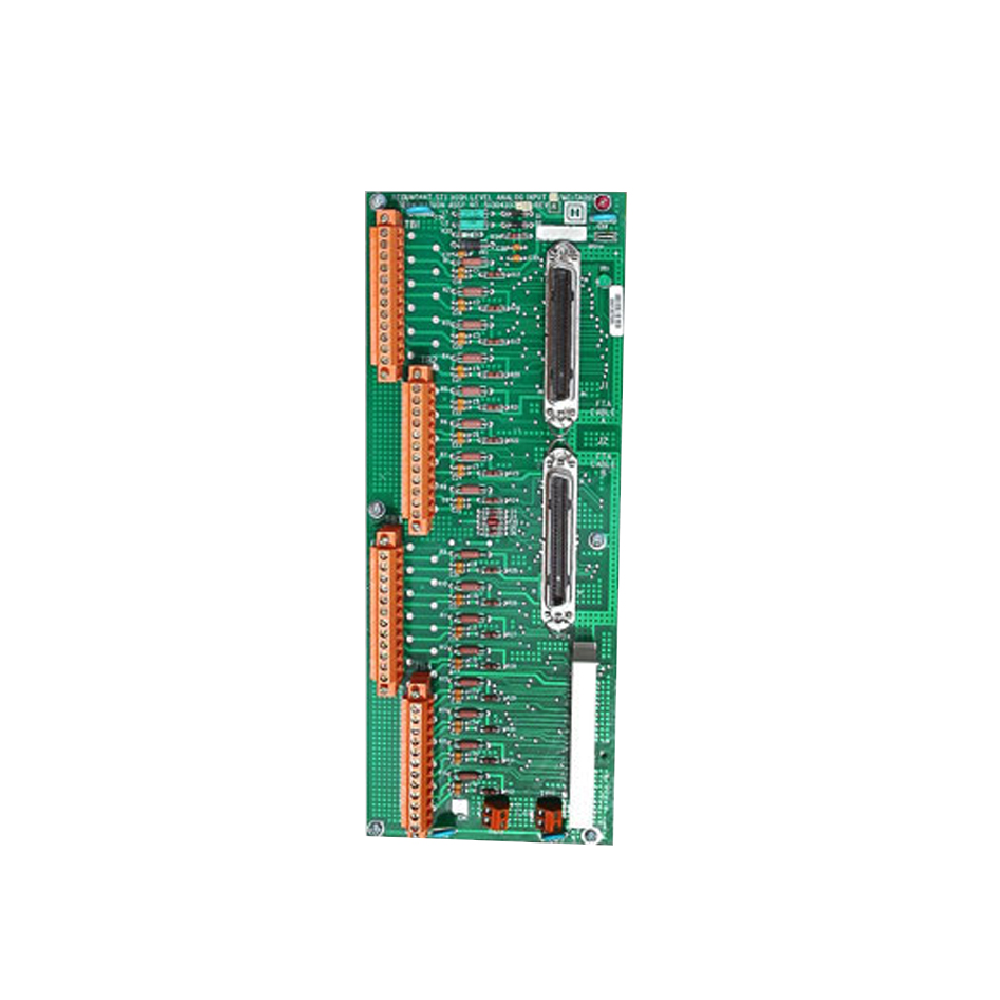

The Honeywell MC-TAIH12 51304337-150 actively provides high-level analog input/STI Field Termination Assembly functions for redundant process control systems. It supports 16 differential analog inputs, ensuring consistent and accurate data acquisition. The module comes in coated (MC-TAIH12) and uncoated (MU-TAIH12) versions, allowing flexible use in standard or harsh industrial environments.
Moreover, its architecture enhances reliability by providing seamless redundancy and continuous signal integrity during failover operations.
Functional Highlights
- Versatile Signal Support: Handles voltage (0–5V, 1–5V) and current (4–20 mA) inputs.
- High Accuracy: 16-bit A/D conversion with 14-bit precision utilized for stable readings.
- Strong Noise Immunity: 70 dB common-mode rejection from DC to 60 Hz.
- Fast Sampling: Input scan rate reaches 4 samples per second per channel.
- Surge Protection: Complies actively with ANSI/IEEE C37.90.1-1978 standards.
In addition, its redundant failover design ensures no missed data cycles, maintaining ±2% accuracy at 0V common mode.
Technical Data
| Parameter | Specification |
|---|---|
| Input Channels | 16 Differential Inputs |
| Input Ranges | 0–5V, 1–5V, 0.4–2V, 4–20mA (via 250Ω resistor) |
| A/D Converter | 16-bit, 14-bit used |
| Accuracy | ±0.075% FS @ 23.5°C, ±0.15% FS (0–50°C) |
| Common Mode Rejection | 70 dB (DC–60 Hz) |
| Crosstalk | 60 dB (DC–60 Hz) |
| Input Impedance | >10 MΩ (powered) |
| Common Mode Range | -6V to +5V peak |
| Surge Withstand | ANSI/IEEE C37.90.1-1978 |
| Power Limiting | 145Ω resistor current limit (Class 1, Div 2) |
Furthermore, engineers can integrate this module with Honeywell’s Experion and TPS systems without complex rewiring.
