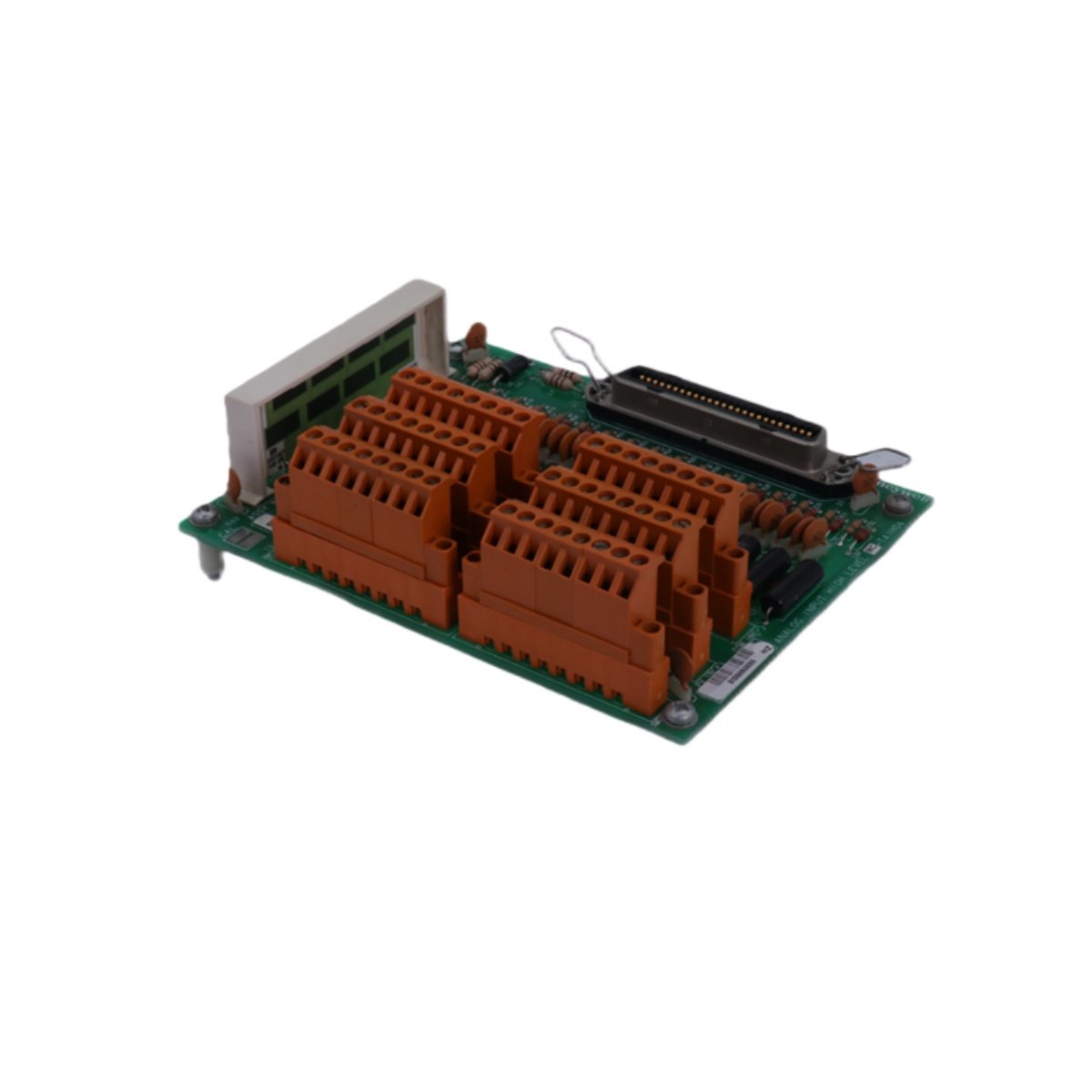

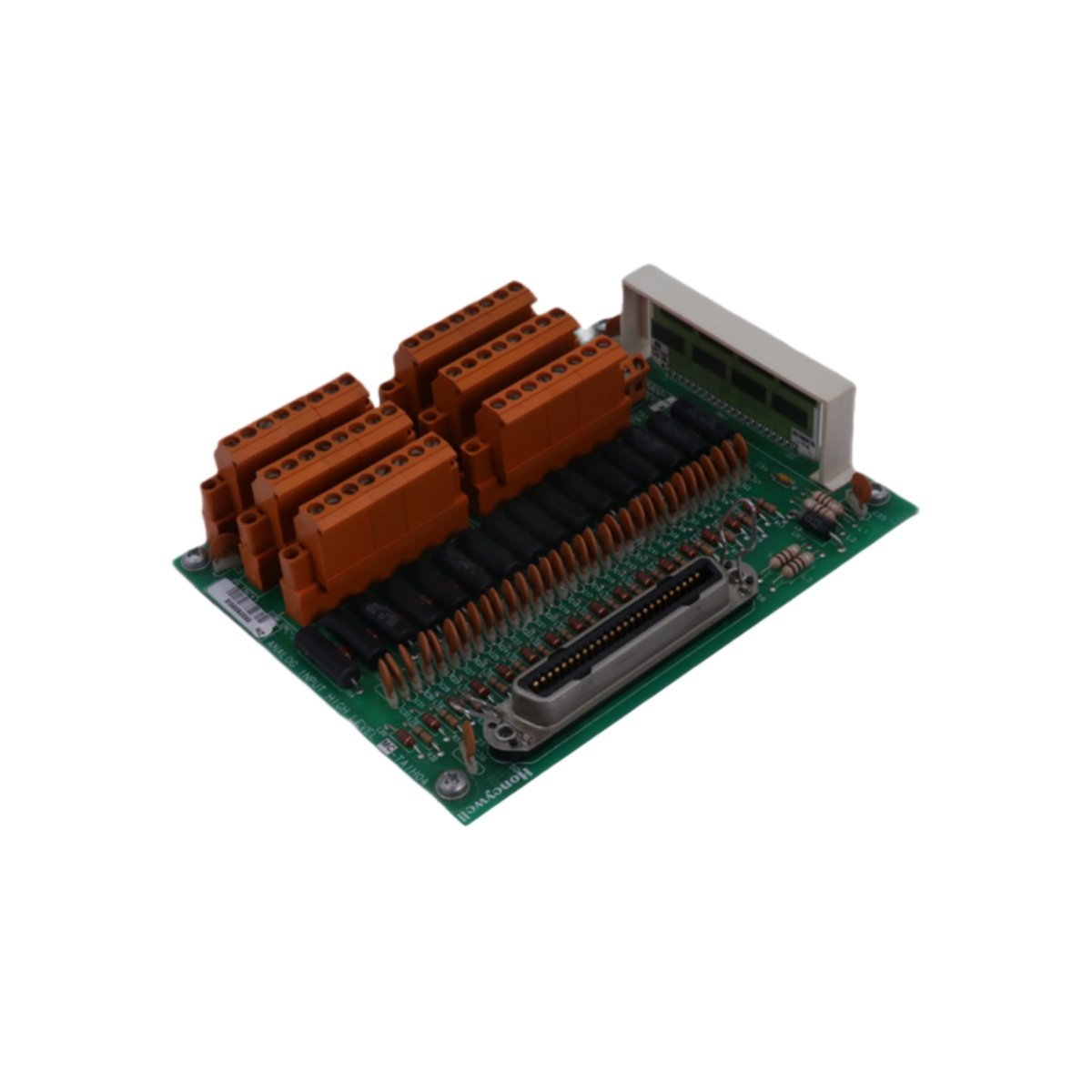

The Honeywell MC-TAIH04 is a versatile high-level analog input module. It accurately acquires data from a wide array of process instruments and sensors. This module serves as a critical component within the Honeywell TotalPlant Solution (TPS) system. It ensures reliable process control by converting field signals into precise digital data.
Core Technical Specifications
Engineers value this module for its high channel density and signal flexibility. The MC-TAIH04 provides sixteen isolated input channels for comprehensive monitoring. It supports standard analog current and voltage signals, along with HART-enabled communication. The module operates on a standard industrial voltage range for seamless integration.
Here are the detailed technical parameters for the Honeywell MC-TAIH04:
| Parameter | Specification |
|---|---|
| Manufacturer | Honeywell |
| Model Number | MC-TAIH04 |
| Product Type | High-Level Analog Input Module |
| Compatible System | TotalPlant Solution (TPS) |
| Number of Input Channels | 16 |
| Supported Input Types | Analog Current (e.g., 4-20mA), Analog Voltage, HART-enabled signals |
| Operating Voltage | Standard Industrial Range (e.g., 24 VDC) |
| Module Dimensions (L x H x D) | 12.7 cm x 4.5 cm x 15.7 cm |
| Module Weight | 0.8 kg |
| Typical Isolation | Channel-to-channel and channel-to-system |
| Input Impedance | 250 Ω for current signals (typical) |
Design Features and System Integration
This compact module offers high-density signal acquisition in a robust industrial package. Its support for HART protocol allows for advanced device diagnostics and configuration. Consequently, the MC-TAIH04 is ideal for monitoring pressures, temperatures, and flows in complex process plants. The module connects directly to TPS controllers, forming a unified and reliable control architecture.
Additionally, the channel isolation minimizes noise interference and protects system integrity. The standard industrial form factor ensures easy installation and replacement within system racks. For optimal performance, always use shielded cables and follow Honeywell’s TPS installation guidelines for grounding and wiring.
Details
| Weight | 0.8 kg |
|---|---|
| Dimensions | 127 × 45 × 157 mm |
