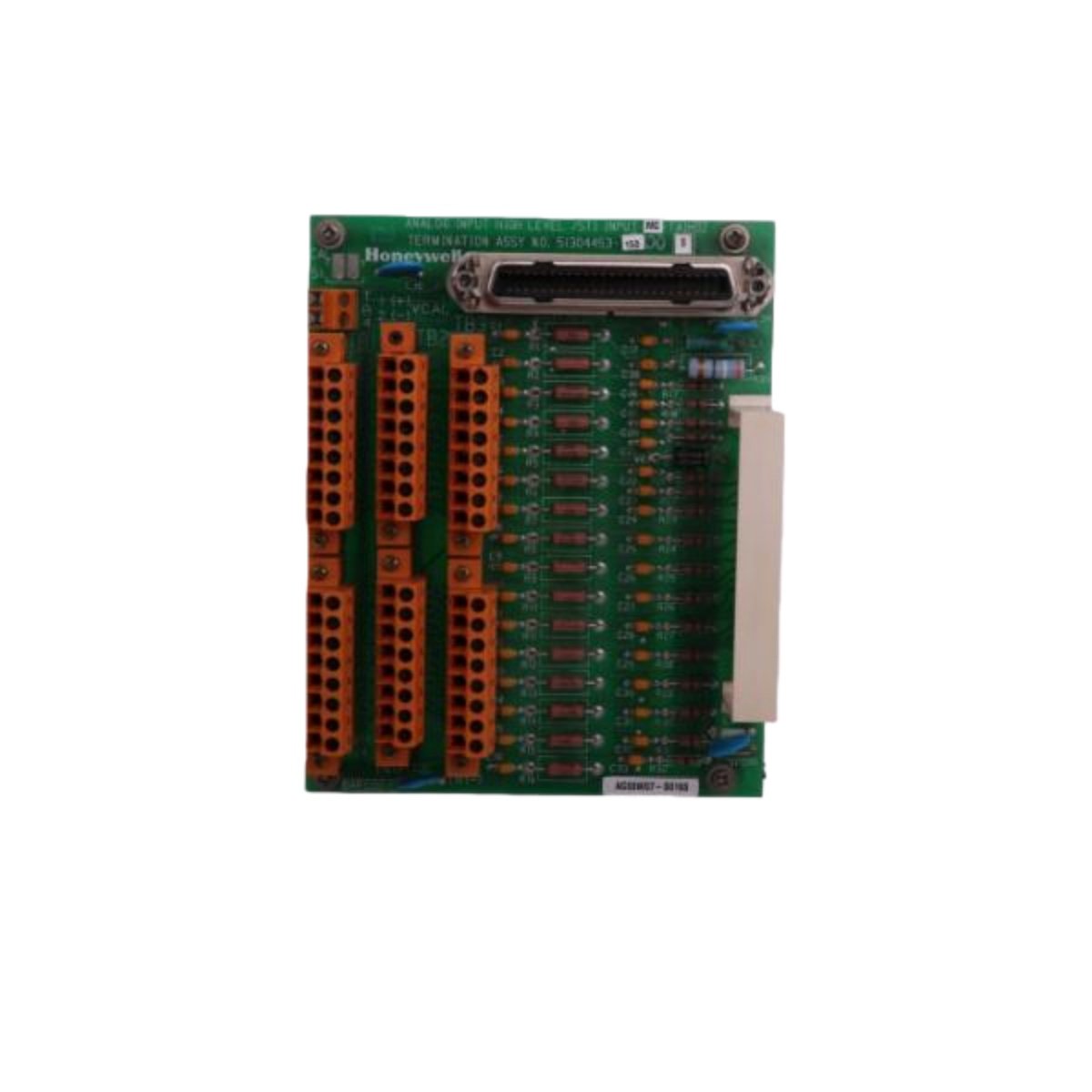

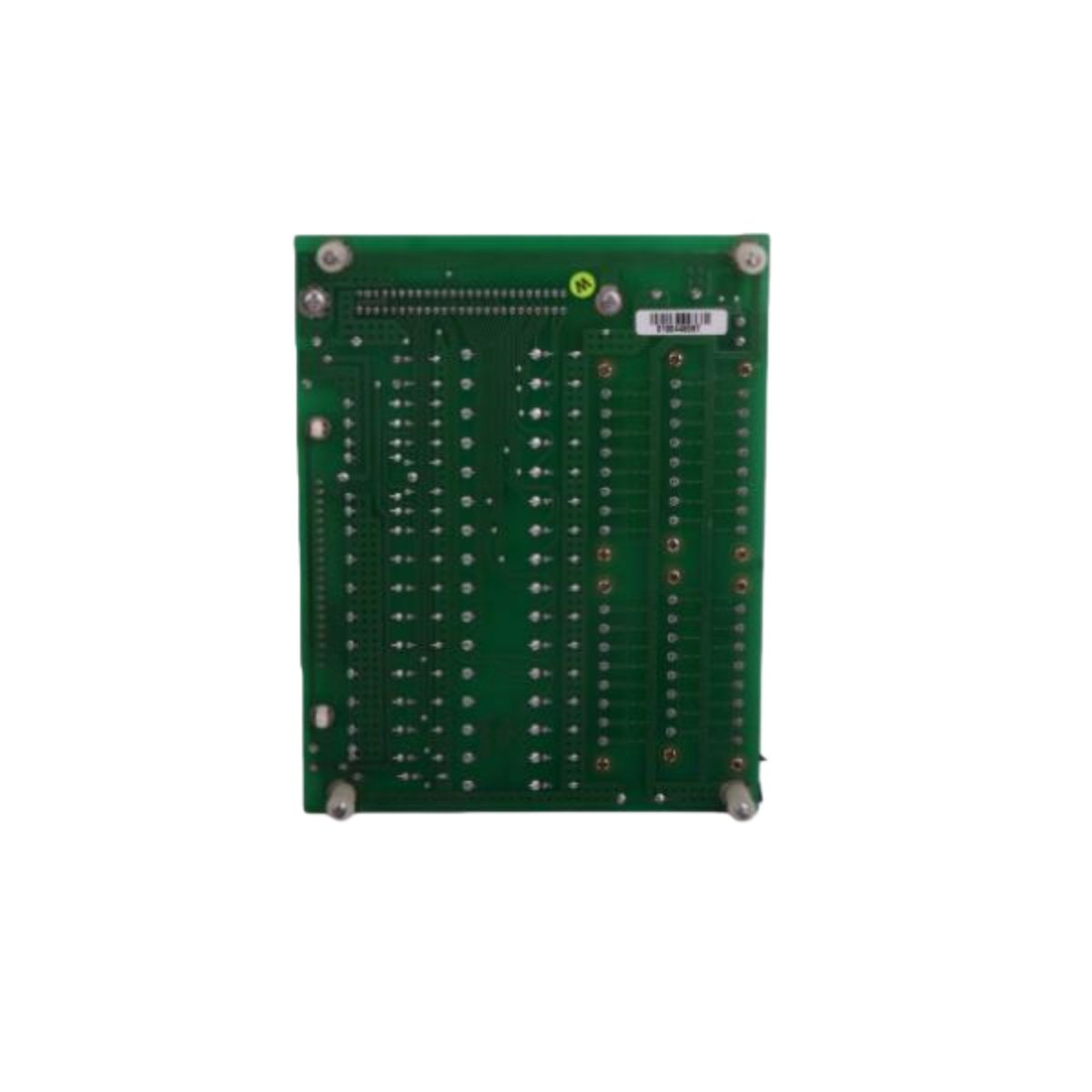

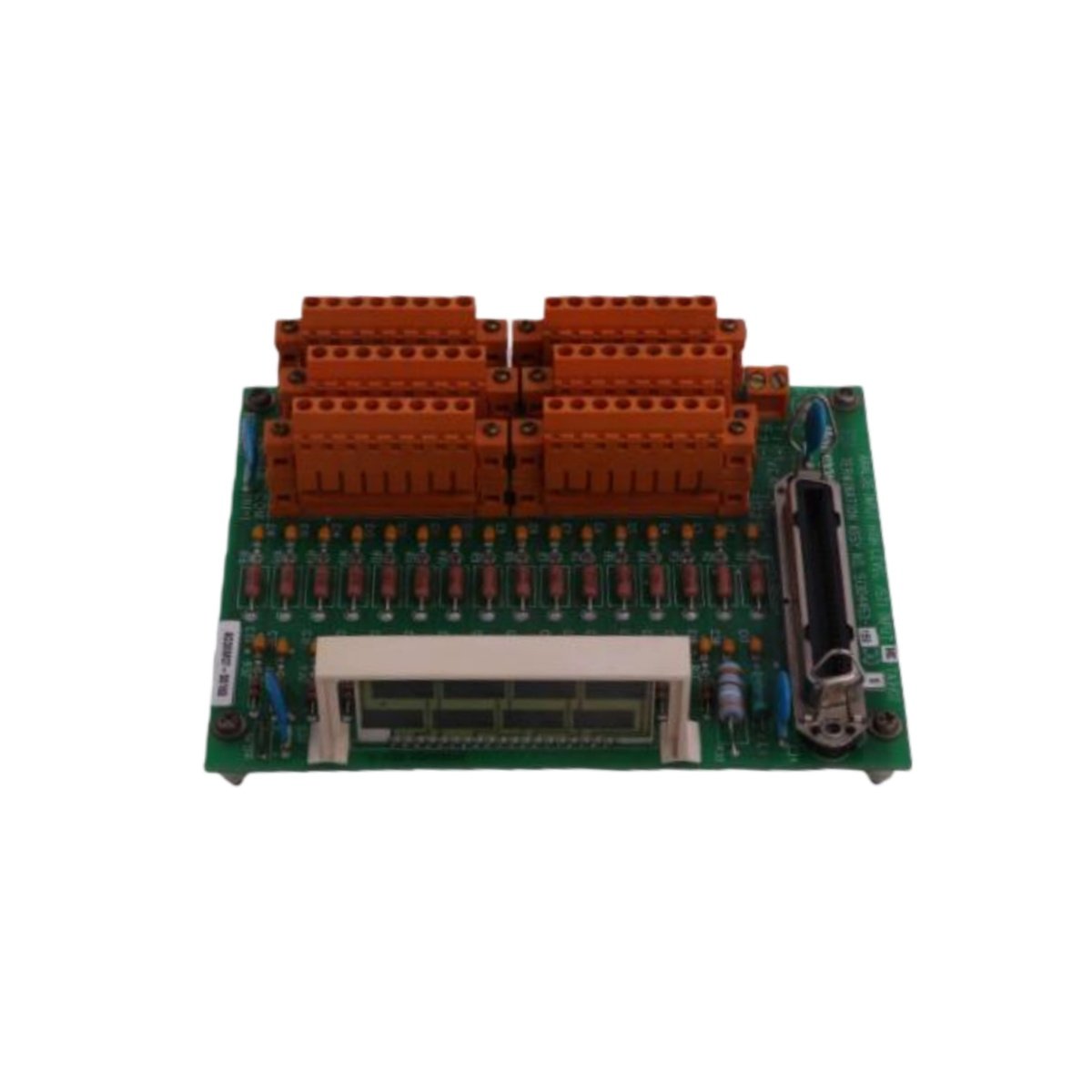

The Honeywell MC-TAIH02 serves as a High Level Analog Input and STI Field Termination Assembly module for TDC 3000 systems. This unit interfaces analog field signals with the control system while providing termination and signal conditioning. You can rely on this module for accurate data acquisition in critical process applications.
Technical Specifications
| Specification | Detail |
|---|---|
| Product Type | High Level Analog Input/STI FTA Module |
| Compatible System | Honeywell TDC 3000 |
| Input Channels | 16 single-ended or 8 differential |
| Input Signal Types | 4-20 mA, 0-20 mA, 0-5 V, 1-5 V, ±10 V |
| Resolution | 16-bit ADC per channel |
| Accuracy | ±0.05% of span at 25°C |
| Input Impedance | >10 MΩ (voltage), 250 Ω (current) |
| Common Mode Rejection | >120 dB at 50/60 Hz |
| Normal Mode Rejection | >60 dB at 50/60 Hz |
| Isolation Voltage | 1500 V RMS channel-to-ground |
| Update Rate | 10 ms per channel |
| Field Termination | Removable terminal blocks, 14-22 AWG |
| Power Supply | 24 VDC from backplane |
| Power Consumption | 5 W typical |
| Dimensions (H x W x D) | 260 mm x 50 mm x 210 mm |
| Weight | 1.3 kg (2.87 lbs) |
| Mounting | Direct rack mount |
| Connectors | 50-pin ribbon cable to I/O processor |
| LED Indication | Power, communication, channel fault |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% non-condensing |
| Approvals | CE, UL, CSA, FM |
High-Integrity Analog Input Processing
The MC-TAIH02 features 16-bit ADC per channel delivering ±0.05% accuracy for precise measurement. Each channel independently converts analog signals to digital values for control system use. You therefore receive reliable process data for regulatory control and optimization.
You can configure inputs for 16 single-ended or 8 differential operation through software settings. Differential mode provides superior noise rejection for signals traveling long distances. Single-ended mode maximizes channel count for local measurements.
Comprehensive Signal Conditioning
We equipped this module with exceptional >120 dB common mode rejection at 50/60 Hz. This performance eliminates interference from AC power lines and nearby electrical equipment. >60 dB normal mode rejection filters out series-mode noise on input signals.
1500 V RMS isolation between field wiring and logic circuitry protects the control system from voltage transients. This isolation prevents ground loops and ensures safe operation during fault conditions.
Flexible Field Termination
The Honeywell MC-TAIH02 includes removable terminal blocks accepting 14-22 AWG field wiring. You can pre-wire these blocks before module installation, reducing assembly time and wiring errors. Clear terminal labeling ensures error-free connections.
The module accepts 4-20 mA, 0-20 mA, 0-5 V, 1-5 V, and ±10 V signals through simple configuration. This flexibility allows connection to various transmitters and sensors without external signal conditioners.
Seamless TDC 3000 Integration
This FTA module connects directly to Honeywell TDC 3000 I/O processors via 50-pin ribbon cable. The module communicates process data to the controller for use in control strategies and operator displays. LED indicators display power status, communication activity, and channel fault conditions.
The 10 ms update rate ensures timely delivery of process measurements for critical control loops. For similar industrial automation components, examine the RMS TSG TZ C Static Trip protection device available through equipment suppliers.
Mechanical Construction
Measuring 260 mm x 50 mm x 210 mm and weighing 1.3 kg, the MC-TAIH02 occupies a single slot in TDC 3000 racks. The rugged construction withstands vibration and industrial environments. 0°C to +60°C operating range suits most process applications with 5% to 95% humidity tolerance.
Details
| Weight | 0.2 kg |
|---|---|
| Dimensions | 85 × 65 × 30 mm |
