Overview

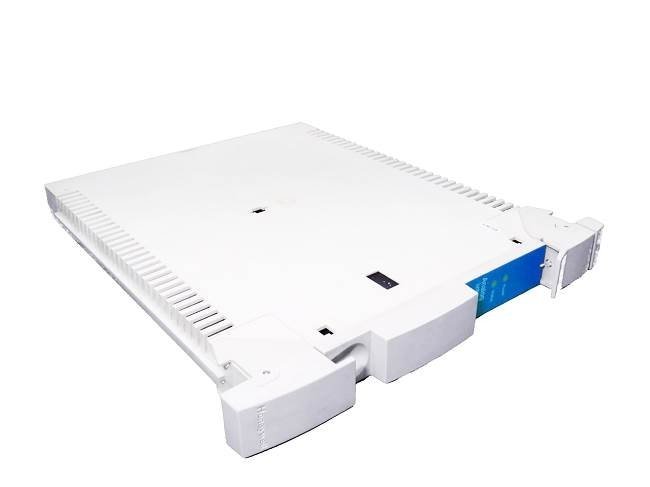

The Honeywell MC-PDIS12 Digital Input Processor Module is a critical component designed for Honeywell’s TPS Process Manager (PM) and Enhanced Process Manager (EPM) systems. It provides reliable digital input signal processing and supports Sequence of Events (SOE) monitoring, ensuring the accurate capture of input data essential for efficient industrial control.
Key Features and Specifications
- Input Channels: 32 digital inputs for robust data processing.
- Input Power Range:
- 24 VDC FTA: 20-30 VDC
- 120 VAC FTA: 90-132 VAC rms
- 125 VDC FTA: 20-30 VDC
- 240 VAC FTA: 180-264 VAC rms
- Performance:
- DC Input Frequency: Up to 15 Hz for 24 VDC FTAs.
- AC Input Frequency: 47-63 Hz for AC FTAs.
- Absolute Delay: 2.0 ms maximum for 24 VDC, 25 ms for 120/240 VAC inputs.
- Isolation and Protection:
- Galvanic Isolation: 1500 Vac rms or ±1500 Vdc field to processor.
- Isolation Technique: Optical isolation for improved signal integrity.
- Surge Withstand: Compliant with ANSI/IEEE C37.90.1-1978 for surge protection.
Functional Highlights
- Redundancy: Ensures no missed or delayed input scan cycles during failover or system swap, providing uninterrupted operation.
- Input Sensing: Features low minimum current sensing capabilities, with high ON and low OFF drop-out voltages for reliable signal detection.
- FTAs: Supports both packaged FTAs with optical isolation and cost-effective models without isolation, catering to a wide range of application needs.
Technical Data
| Parameter | Specification |
|---|---|
| Model Number | MC-PDIS12 (51402625-175) |
| Input Channels | 32 digital inputs |
| Voltage Range (FTA) | 20-30 VDC, 90-132 VAC rms, 180-264 VAC rms |
| Isolation | Galvanic isolation, 1500 Vac rms |
| Performance (Frequency Range) | 47-63 Hz (AC inputs) |
| Surge Withstand Capability | ANSI/IEEE C37.90.1-1978 compliance |
Typical Applications
The MC-PDIS12 module is designed to meet the demands of complex industrial automation environments, particularly in applications where precise digital input monitoring is critical. Ideal for use in process control systems, safety monitoring, and sequence of events tracking, it ensures the continuous and accurate flow of data for reliable operation in industries such as manufacturing, energy, and chemical processing.
FAQ
Q1: Is the Honeywell MC-PDIS12 module new and original?
Yes, the MC-PDIS12 is 100% new, original, and sourced directly from Honeywell.
Q2: How long will it take to ship the MC-PDIS12 module?
The MC-PDIS12 module is in stock and typically ships within 3 days to 2 weeks, depending on order size. DHL is our primary shipping method.
Q3: Can the MC-PDIS12 module be used with both 24 VDC and AC FTAs?
Yes, the MC-PDIS12 module supports both 24 VDC and AC FTAs, offering flexibility for various input configurations.
Details
| Weight | 0.64 kg |
|---|
