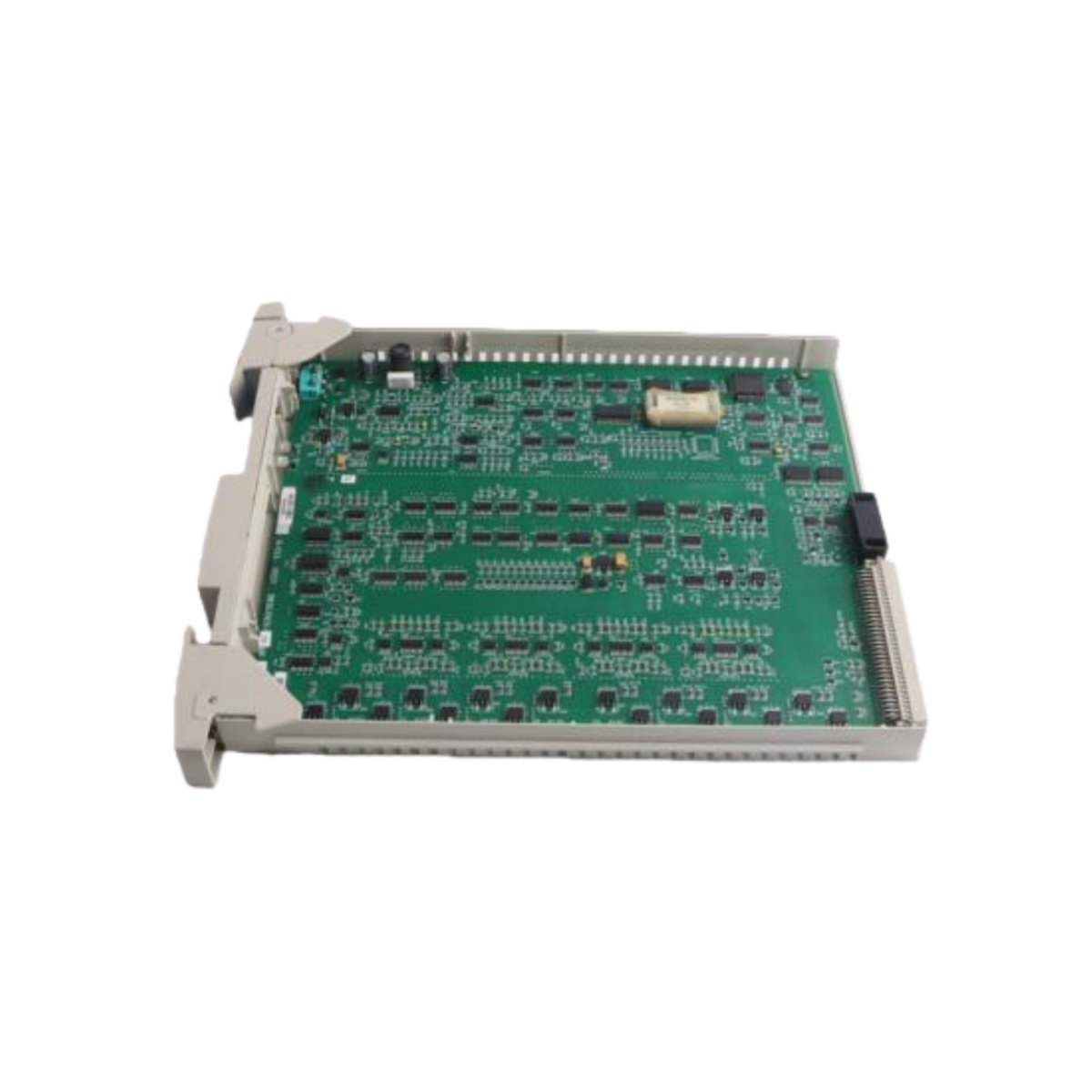

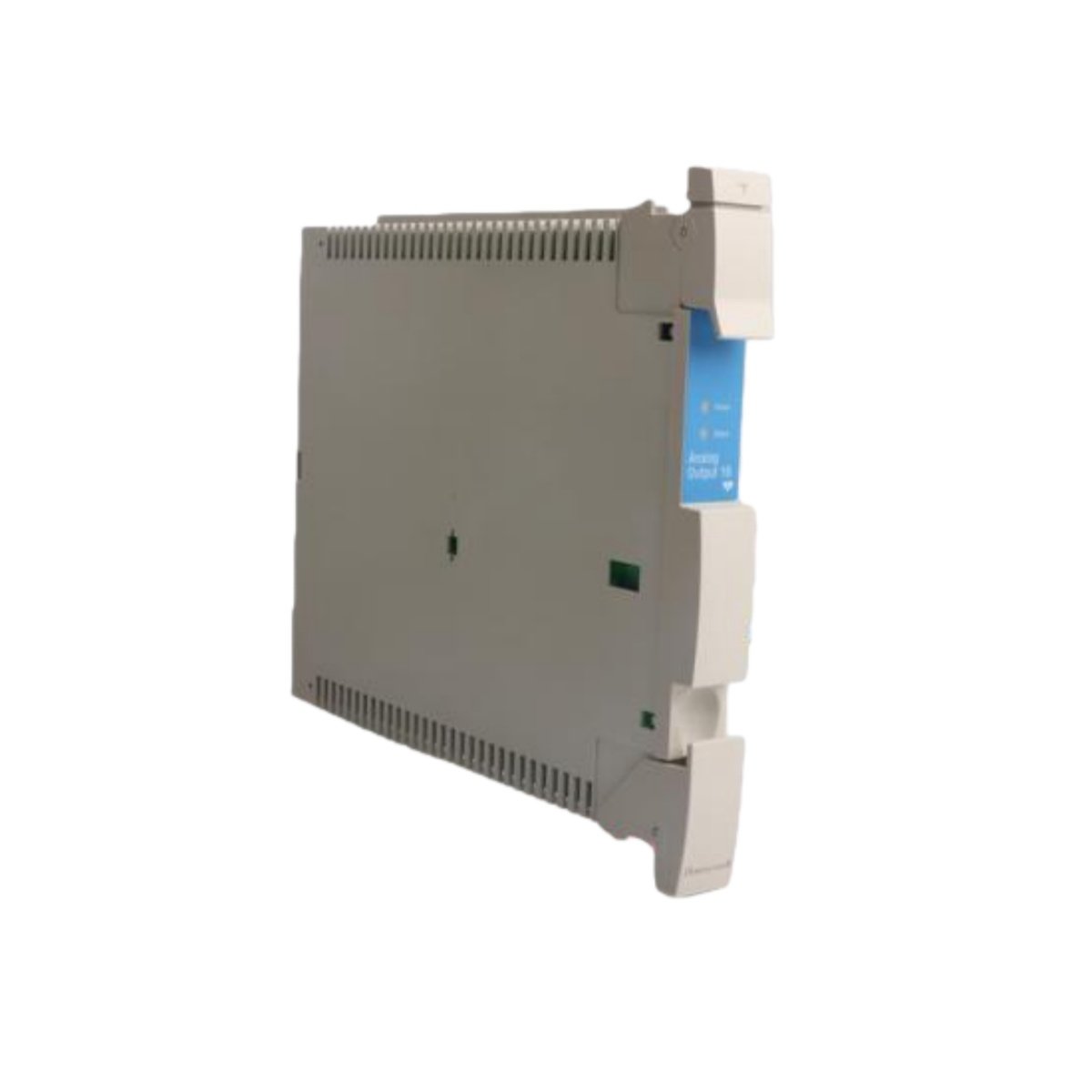

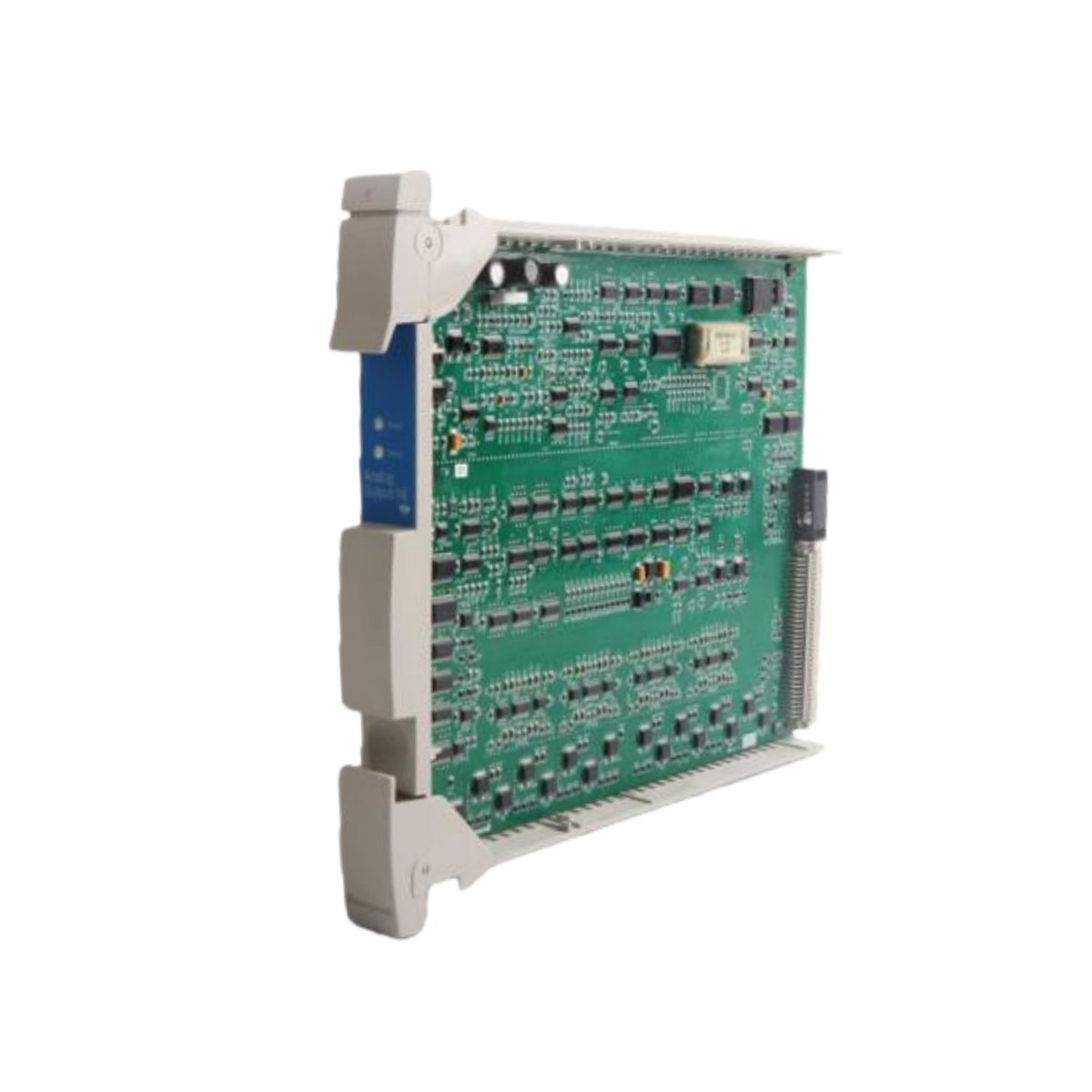

The Honeywell MC-PAOY22 delivers precise analog control for demanding industrial processes. This 16-channel module is a core component of the TDC 3000 Distributed Control System. Furthermore, it provides reliable 4-20 mA current signals to control valves and actuators.
High-Density Output Performance
Each of the 16 channels offers fully isolated 4-20 mA output for maximum signal integrity. The module also supports optional voltage output ranges from 0-10V or -10V to +10V. Consequently, this versatility meets a wide array of field instrument requirements.
Robust Design and Intelligent Management
An onboard processor handles efficient signal management and diagnostics autonomously. A protective coating shields the electronics from harsh environmental contaminants. Moreover, the module operates reliably across an extreme temperature range from -40°C to 85°C.
For detailed integration data, review the complete technical specifications provided below.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer & Model | Honeywell MC-PAOY22 |
| System Platform | TDC 3000 Distributed Control System (DCS) |
| Module Type | Analog Output Module |
| Number of Channels | 16 |
| Channel Isolation | Yes |
| Primary Output Type | 4 – 20 mA |
| Optional Output Ranges | 0 – 10 V, -10 V to +10 V |
| Output Resolution | 12-bit |
| Output Accuracy | ±0.1% of Full Scale |
| Onboard Processor | Yes |
| Protective Coating | Yes (Environmental Protection) |
| Operating Temperature | -40°C to 85°C |
| Operating Humidity | 5% to 95% RH (Non-Condensing) |
| Dimensions (H x W x D) | 200 mm x 110 mm x 31 mm |
| Weight | 0.6 kg (1.3 lbs) |
Built for Industrial Reliability
The Honeywell module’s compact design measures 200mm x 110mm x 31mm for efficient rack space usage. Its wide operating humidity range from 5% to 95% RH ensures performance in challenging conditions. Finally, this module is a trusted solution for maintaining precise process control in your TDC 3000 system.
Details
| Weight | 0.6 kg |
|---|---|
| Dimensions | 200 × 110 × 31 mm |
