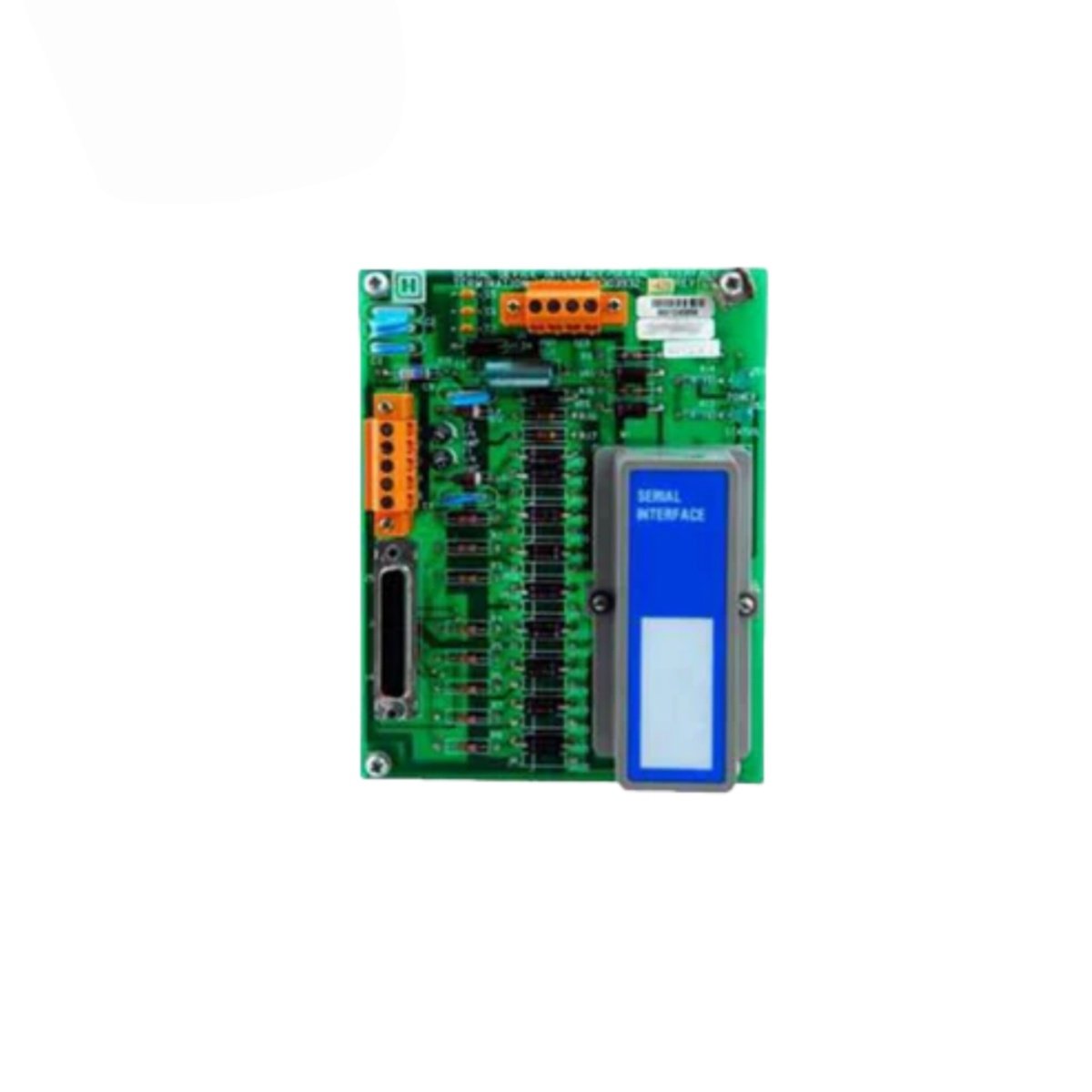

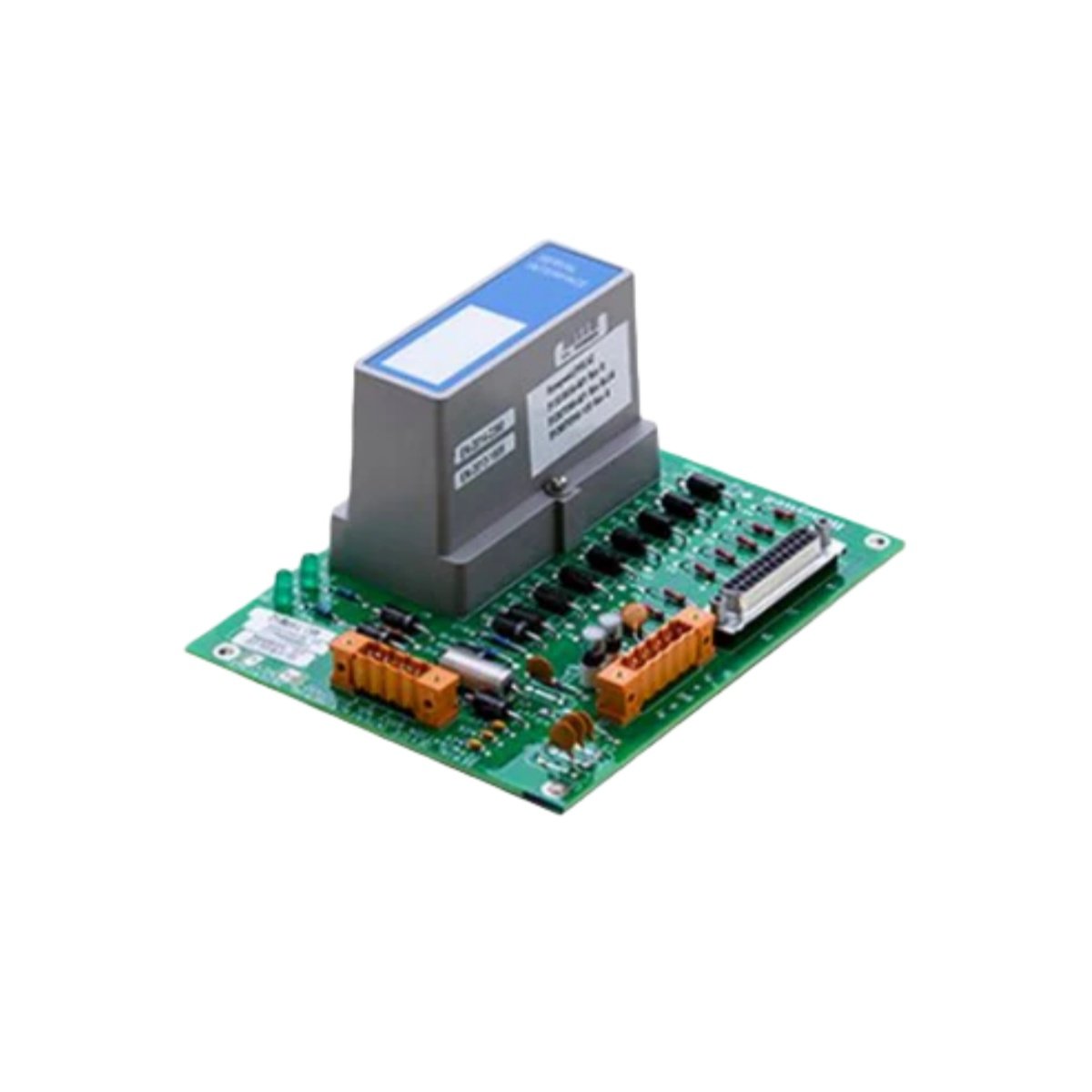

The Honeywell MC-GAIH14 is a versatile analog input module for the Experion PKS C300 system. This module accurately digitizes signals from various field sensors and transmitters. Consequently, it provides reliable data for precise monitoring and control in process automation.
Core Technical Specifications and Design
This high-density module offers sixteen configurable channels in a compact form factor. It ensures stable operation across a wide industrial temperature range. Let’s review its detailed technical and physical specifications.
Detailed Technical Specifications:
| Parameter | Specification |
|---|---|
| Manufacturer / Brand | Honeywell |
| Product Model | MC-GAIH14 |
| Product Category | Process Control Analog Input Module |
| Input Channels | 16 channels |
| Supported Input Types | 4-20 mA, 0-20 mA, Voltage (configurable) |
| Analog-to-Digital Resolution | 12-bit |
| Typical Accuracy | ±0.1% of reading |
| Module Power Supply | 24 VDC |
| Operating Temperature | -40°C to +85°C |
| Dimensions (H x W x D) | 3.0 cm x 31.3 cm x 27.8 cm |
| Weight | 0.73 kg (1.61 lbs) |
Application and System Integration
You install the MC-GAIH14 into a designated slot within a C300 Input/Output (I/O) module carrier. It connects directly to current or voltage signals from pressure, level, and flow instruments. Therefore, this module serves as a critical interface between your field devices and the Experion PKS controller.
For optimal performance, always configure the input type and range within the Control Builder software. Consult the official Honeywell installation manual for complete wiring and grounding guidelines. This module is essential for building a robust and accurate data acquisition layer in your plant.
Details
| Weight | 0.91 kg |
|---|---|
| Dimensions | 110 × 55 × 90 mm |
