Product Overview

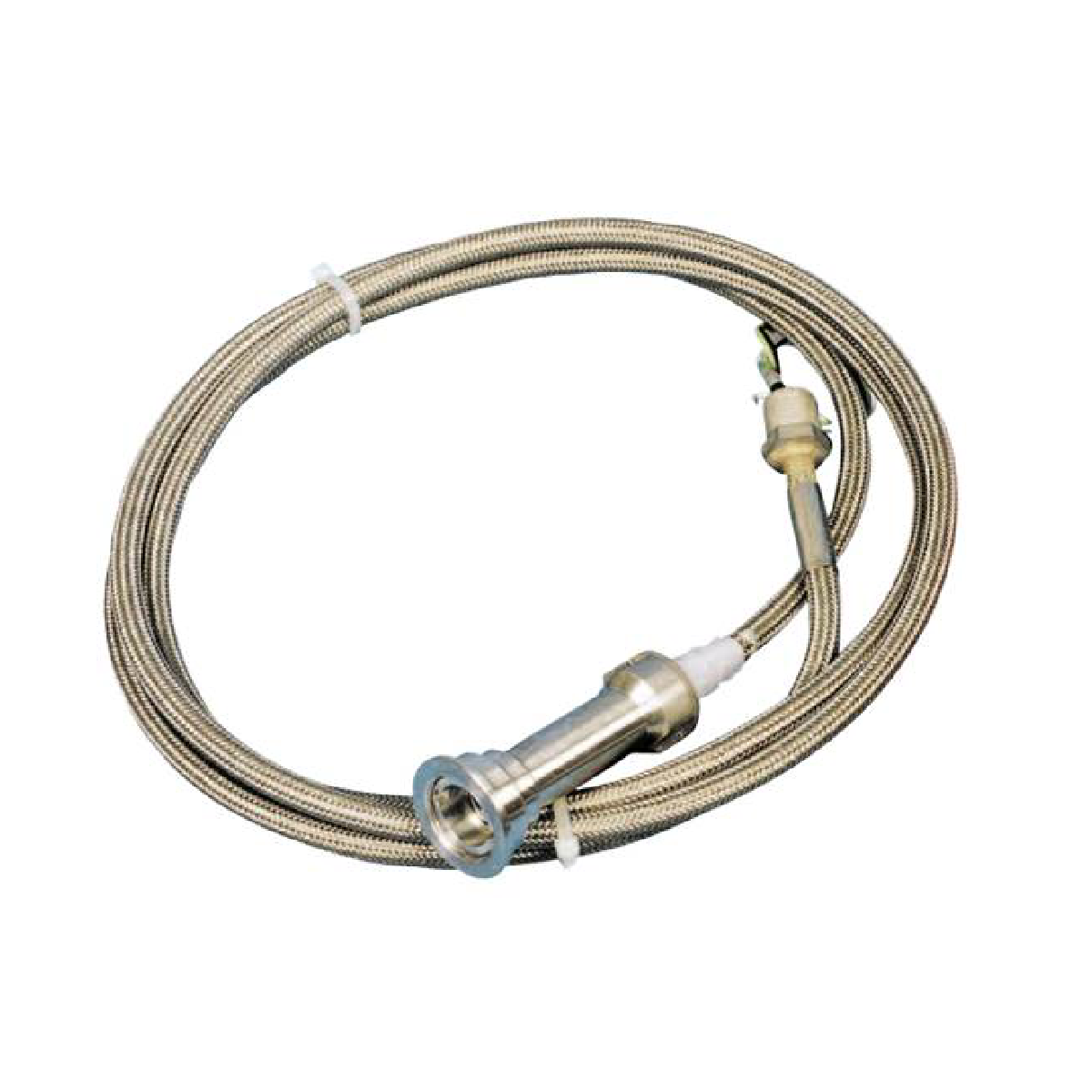

The Honeywell LG1093AC01 is an LG Flame Detector designed for gas turbine flame monitoring.
It detects UV radiation emitted by hydrocarbon flames and provides a reliable flame/no-flame signal.
This system has proven performance on GE gas turbines and licensee turbines for over 35 years.

Key Features

• Sensor Technology: Geiger Mueller-type phototube.
• Detection Range: UV spectrum 180–260 nm.
• Solar Blind: Immune to sunlight interference.
• Radiation Tolerant: Handles black body radiation effectively.
• High Reliability: 10,000h MTBF; over one billion operating hours in the field.
• Fast Response: Flame detection typically in 0.1 sec, flame loss max 0.2 sec.
• Long Distance Operation: Up to 330 m (1000 ft) from sensor to amplifier.

Applications

• Gas turbines for power generation.
• Industrial compressors requiring reliable flame monitoring.
• Systems using Honeywell EG1033 amplifier modules.

Technical Specifications

Hardware Outputs (via EG1033 Amplifiers)

• EG1033AA: Transistor open collector.
• EG1033AB / AC: Relay contacts (SPDT).

Amplifier Compatibility

• 28 VDC, 20–35 VDC, 115 VAC.

Environmental & Compliance

• Temperature Range: -40°C to +176°C.
• CE Mark: EMC 89/336/EEC, LVD 73/23/EEC.
• ATEX: 94/9/EC (EEx d IIA T3 or EEx d IIC T3, Zone 1 & 2).
• Factory Mutual Approval: Class I, Div 1 & 2, Groups B, C, D.

Physical Specifications

• Outer Diameter: 1.73″ (44 mm).
• Flange Width: 0.14″ (3.6 mm).
• Viewing Window Rating: 428 mbar (6.3 psi).
• Cable Length: 9 ft (2.7 m).
• Supply Voltage: Not required.
• Weight: 0.91 kg.

Important Notes

• Pre-selection Required for Low-NOx Turbines: Honeywell LG1093 may not operate properly on GE/NP DLE turbines without pre-selected units.
• Designed for high-sensitivity, fast flame detection in industrial turbine applications.

This detector provides reliable, long-lasting UV flame monitoring suitable for harsh turbine and industrial environments.
