Product Overview

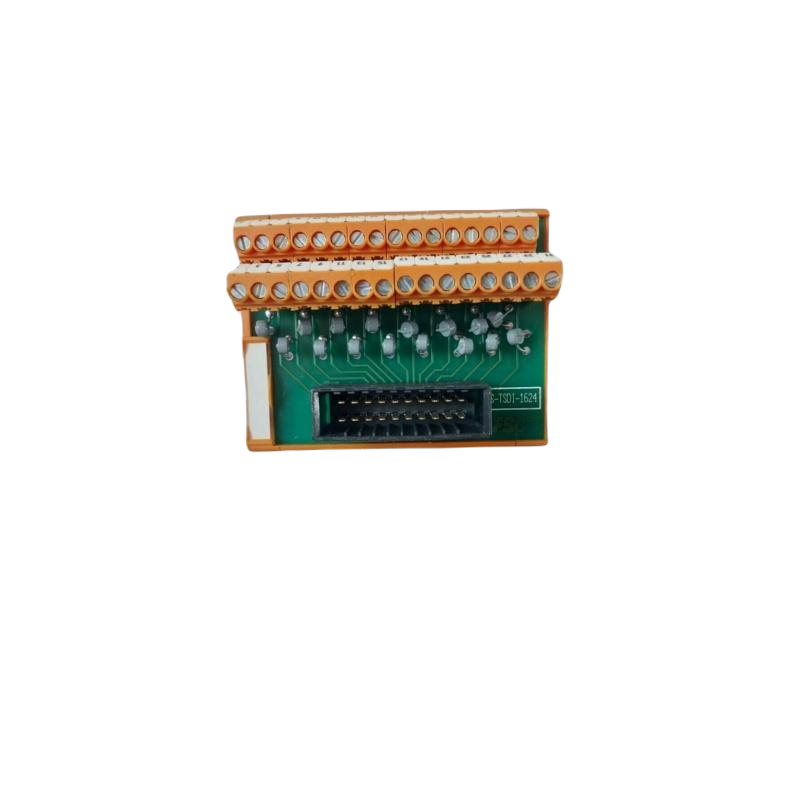

The FS-TSDI-1624 from Honeywell is a Safe Digital Input field termination assembly module. It interfaces the system interconnection cable (SICC-0001/Lx) with external field wiring through screw terminals. Designed for Class I, Division 2 hazardous locations, the module connects to redundant SDI-1624 modules to ensure reliable signal processing. Its PTC resistor protects each input channel from short-circuits, maintaining system integrity.
Technical Specifications
| Parameter | Details |
|---|---|
| Product ID | FS-TSDI-1624 |
| Brand | Honeywell |
| Category | Safe Digital Input FTA Module |
| Type Numbers | FS-TSDI-1624, FC-TSDI-1624 |
| Approvals | CE, TUV, UL, CSA, FM² |
| Number of Input Channels | 16 |
| Input Voltage | 24 Vdc, -15% to +30% |
| Input Current | ≤ 15 mA at 24 Vdc (redundant SDI-1624 modules) |
| PTC Resistance | 260 Ω ± 25% at 25°C |
| PTC (Steady) Current | 45 mA ± 35% at 24 Vdc |
| Module Dimensions | 90 x 70 x 58 mm (L x W x H) |
| DIN EN Rails | TS32/TS35 x 7.5 |
| Used Rail Length | 91 mm |
| Screw Terminals | Max Wire 2.5 mm², Strip Length 7 mm, Torque 0.5 Nm |
| Hydrogen Group A & B | Max Closed Loop 10 Ω, Min Open Loop 15 kΩ, Max Supply 28.8 Vdc, Max Inductance 3 mH, Max Capacitance 0.3 μF |
| Hydrogen Group C & D | Max Inductance 10 mH, Max Capacitance 6 μF |
| Coating | FS: Non-conformal, FC: Conformal |
| FM Approval | Pending (contact Honeywell for updates) |
Key Features
- Short-circuit protection using a PTC resistor between +24V output and input channels
- DIN rail mounting compatible with TS32/TS35 rails for easy installation
- 16 input channels accept 24 Vdc signals from hazardous location circuits
- Compatible with redundant SDI-1624 modules for reliable operation
- Screw terminals support up to 2.5 mm² wire and 0.5 Nm torque
- Available in non-conformal (FS) or conformal-coated (FC) versions
Related Parts & Services
- Honeywell SDI-1624 Safe Digital Input Modules
- Field Termination Assemblies for Industrial Automation
- Hazardous Area Control System Accessories
