Ensuring Advanced System Protection for Industrial Control

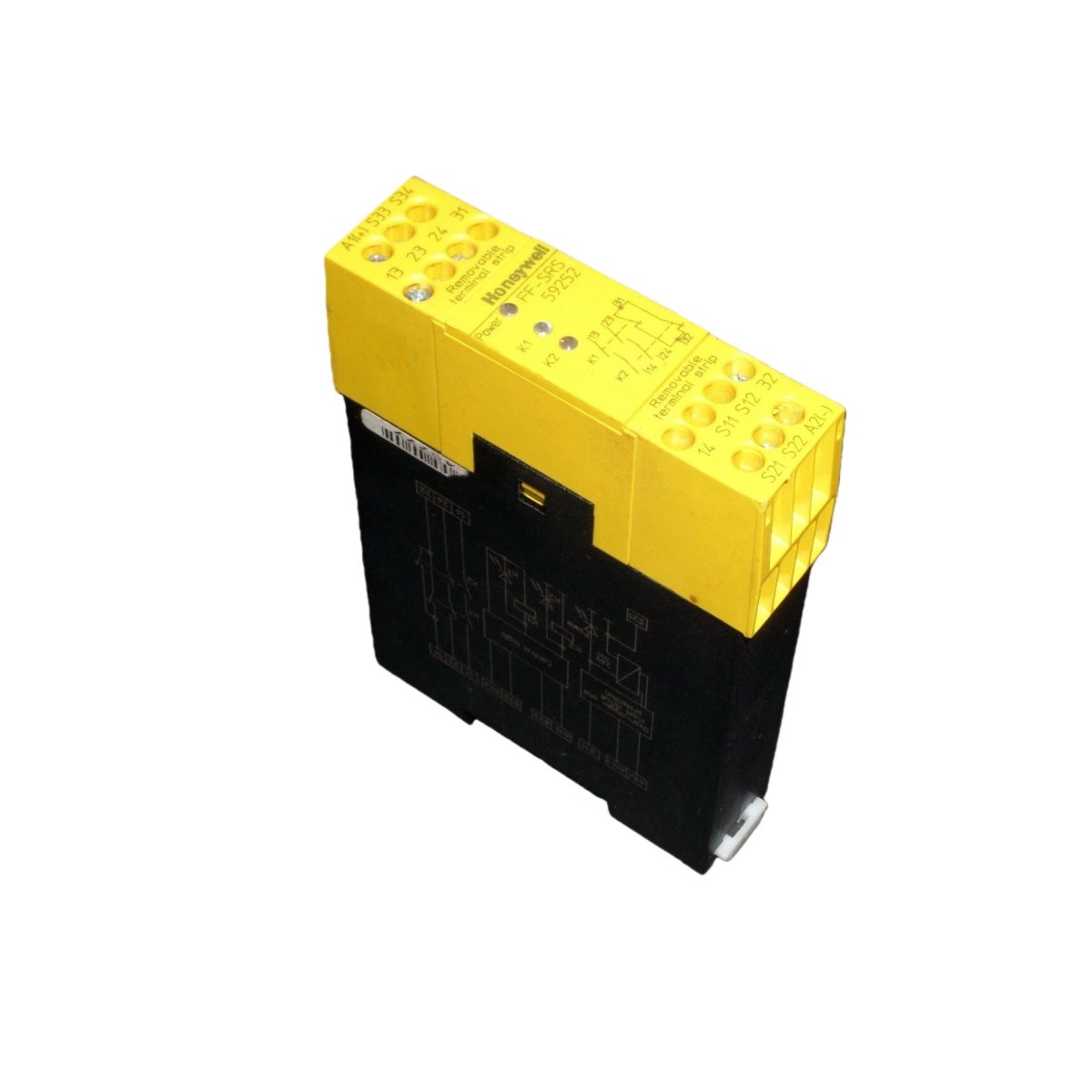

The Honeywell FF-SRS59252 delivers high-performance safety relay functionality. This module provides advanced protection for critical industrial equipment and control systems. It guarantees reliable operation and system integrity through robust safety design. Consequently, it is a key component for establishing safety circuits in various industrial environments.
Technical Specifications and Physical Profile
This safety relay module from Honeywell operates on a standard industrial voltage. Its compact design incorporates multiple contact configurations for flexible wiring. Furthermore, the module’s specifications ensure dependable performance across a defined temperature range.
Detailed Technical Parameters
| Parameter | Specification |
|---|---|
| Manufacturer | Honeywell |
| Model Number | FF-SRS59252 |
| Product Type | Safety Relay Module |
| Primary Function | Safety Circuit Interfacing and Monitoring |
| Rated Operational Voltage | 24 V DC |
| Contact Configuration | 2 Normally Open (NO) + 2 Normally Closed (NC) |
| Contact Material | Silver Alloy (Standard for relay contacts) |
| Contact Current Rating | Typically 6A (Resistive Load, verify with datasheet) |
| Coil Power Consumption | Approximately 2.5 Watts |
| Operating Temperature Range | -25°C to +55°C |
| Storage Temperature Range | -40°C to +85°C |
| Module Dimensions (H x W x D) | 10.8 cm x 7.6 cm x 3.2 cm |
| Module Weight | 0.49 lbs (Approximately 0.22 kg) |
| Mounting Method | Standard 35 mm DIN Rail |
| Terminal Type | Screw Clamp Terminals |
| Isolation | Reinforced isolation between coil and contacts |
| Status Indication | LED Indicators for Power and Relay State |
| Safety Standards | Designed to meet relevant IEC/EN safety categories |
| Module Count in System | 1 Unit (Can be used in series/parallel for complex circuits) |
Key Features and Safety Application
The FF-SRS59252 monitors safety devices like emergency stops and light curtains. Its forced-guided contacts help prevent dangerous failure modes within the safety circuit. The module also provides redundant and monitored output paths for increased reliability. Moreover, its clear status indication allows for quick troubleshooting by maintenance personnel. This makes it suitable for machine safety applications in manufacturing and process industries.
Installation and System Integration
Installation requires mounting the module on a DIN rail within the control panel. Wiring connects the safety sensors to the input terminals and the controlled device to the outputs. The FF-SRS59252 typically integrates into a larger safety relay or PLC-based safety system. Proper configuration and testing are essential to validate the complete safety function. Always consult the official Honeywell manual for specific application wiring diagrams.
Reliability and Design Assurance
Honeywell designs the FF-SRS59252 for long-term, maintenance-free operation in industrial settings. Its components are selected for electrical endurance and mechanical durability. The module’s design focuses on fail-safe operation to protect personnel and machinery. Furthermore, using this certified safety component helps engineers meet necessary machinery safety regulations.
Details
| Weight | 0.68 kg |
|---|---|
| Dimensions | 145 × 100 × 40 mm |
