Overview

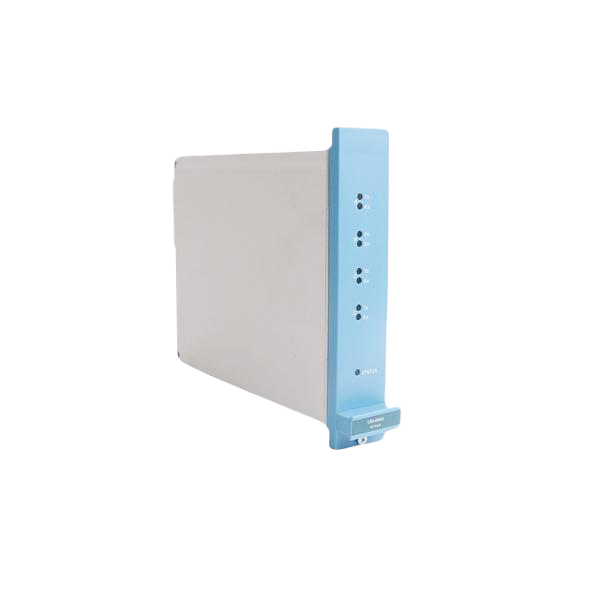

The Honeywell FE-USI-0002 Universal Safety Interface Module is being withdrawn from the Safety Manager product line and will be replaced by the FX-USI-0002 module. The withdrawal of the FE-USI-0002 module is due to the obsolescence of certain components. The replacement module, FX-USI-0002, offers improved compatibility and functionality.
Product Summary: Withdrawn Modules
| SAP Material Number | Revision | Description |
|---|---|---|
| FE-USI-0002 | 10 | Universal Safety Interface MMEM CC, EUCN |
Note: The FE-USI-0002 is no longer available for sale. It can still be ordered until stock is depleted. Afterward, future orders will be fulfilled with the FX-USI-0002 module.
Alternatives for Withdrawn Modules
| SAP Material Number | Revision | Description |
|---|---|---|
| FX-USI-0002 | 10 | Universal Safety Interface MMEM CC, EUCN |
The FX-USI-0002 is pin-to-pin compatible with the FE-USI-0002, FC-USI-0002, and FC-USI-0001 modules.
Important: The FX-USI-0002 module is not supported by Safety Manager systems running on software versions earlier than R140. We recommend upgrading to the latest software release for compatibility. If upgrading is not possible, ensure you have enough spare parts for the FE-USI-0002, FC-USI-0002, and FC-USI-0001 modules.
Compatibility Limitations
The FE-USI-0002 module may lose its EUCN certificate if used in Safety Manager systems running software versions earlier than R130.1. This can cause communication and diagnostic issues. Do not use FE-USI-0002 in systems with releases earlier than R130.1.
Specifications for FX-USI-0002
| Feature | Specification |
|---|---|
| General Type Number | FX-USI-0002 |
| Operating Temperature | -5°C to +70°C (+23°F to +158°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Relative Humidity | 10% – 95% (non-condensing) |
| Approvals | CE, TUV, UL, CSA, FM |
| Supply Voltage | 5 V DC ± 5% |
| Supply Current | Max 1.2A |
| Dimensions | 176 × 35.2 × 212 mm (6.93 × 1.4 × 8.35 in) |
| Weight | 0.7 kg |
Note: Both FE-USI-0002 and FX-USI-0002 support the EUCN protocol. The FX-USI-0002 module is fully compatible with Safety Manager R140 and higher versions.
FAQ
1. What is the replacement for the FE-USI-0002 module?
The FX-USI-0002 module will replace the FE-USI-0002. It is pin-to-pin and functionally compatible with the FE-USI-0002 and other related modules.
2. Can I use the FE-USI-0002 in older Safety Manager releases?
No, the FE-USI-0002 is not compatible with Safety Manager versions earlier than R130.1. Using it in older versions may cause communication issues.
3. Is the FX-USI-0002 module compatible with previous models?
Yes, the FX-USI-0002 is fully compatible with FC-USI-0001, FC-USI-0002, and FE-USI-0002 in Safety Manager R140 and later.
4. What is the warranty and return policy for the FX-USI-0002?
The FX-USI-0002 is brand new and factory-sealed. We offer a 30-day return policy for any quality issues.
5. How long will it take to ship the FX-USI-0002?
Shipping typically takes 3–14 days, depending on order size. We ship via trusted couriers like DHL.
Details
| Weight | 0.7 kg |
|---|---|
| Dimensions | 4470 × 894 × 5385 mm |
