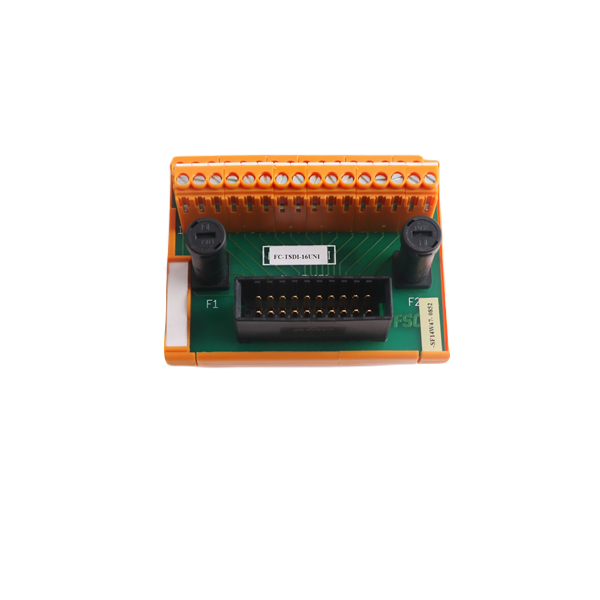

The Honeywell FC-TSDI-16UNI is a reliable fail-safe digital input module designed for industrial control systems that demand high safety and consistent performance. Engineered to function in harsh and hazardous environments, this module ensures stable signal acquisition and dependable system operation.

Technical Data

General Information

• Type Numbers: FS-TSDI-16UNI, FC-TSDI-16UNI
• Certifications: CE, TÜV, UL, CSA, FM

Power Specifications

• Number of Channels: 16 (split into two groups of 8 channels)
• Maximum Voltage: 50 V DC (IEC 61010-1, 1990, overvoltage category 3)
• Maximum Voltage: 150 V DC (IEC 61010-1, 1990, overvoltage category 2)
• Note: The actual maximum voltage depends on the connected input module.

Physical Dimensions

• Module Dimensions: 90 × 70 × 60 mm (3.54 × 2.76 × 2.36 in)
• DIN EN Rails: TS32 / TS35 × 7.5
• Used Rail Length: 91 mm (3.58 in)

Fuse Specifications

• Fuse Rating: 250 mA
• Fuse Size: 5 × 20 mm
• Voltage Rating (AC): 400 V
• Voltage Rating (DC): 400 V
• Manufacturer: SOC
• Manufacturer PN: SHV12 250 mA
• Max Output Current per Fuse: 175 mA

Termination Specifications

• Terminal Type: Screw terminals
• Max Wire Diameter: 2.5 mm² (AWG 14)
• Strip Length: 7 mm (0.28 in)
• Tightening Torque: 0.5 Nm (0.37 ft.-lb.)
