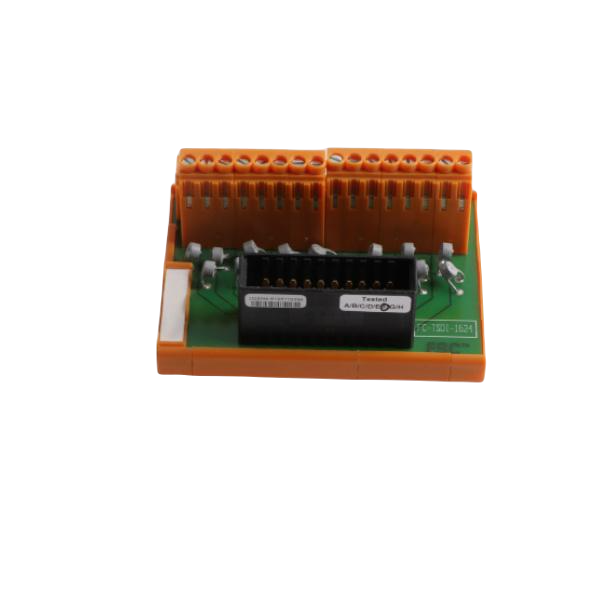

The Honeywell FC-TSDI-1624 is a Safe Digital Input Field Termination Assembly (FTA) engineered for hazardous locations and demanding industrial applications. It serves as an interface between the system interconnection cable (SICC-0001/Lx) and external field wiring, ensuring secure, stable, and reliable transmission of digital input signals.

Key Features

• Provides a safe and efficient interface between SICC cables and external field wiring via screw terminals.
• Designed for Class I, Division 2 Hazardous Locations environments.
• Equipped with PTC resistor protection to prevent loss of all 16 channels in case of a short circuit.
• DIN rail snap-in design allows quick installation and easy maintenance.
• Supports redundant SDI-1624 modules for enhanced load balancing and system reliability.

Technical Specifications

General

• Type Numbers: FS-TSDI-1624, FC-TSDI-1624
• Approvals: CE, TÜV, UL, CSA, FM
• Operating Environment: Class 1, Division 2 Hazardous Locations

Input Specifications

• Number of Input Channels: 16
• Input Voltage: 24 V DC (±15% to +30%)
• Input Current: ≤15 mA at 24 V DC (with redundant SDI-1624 modules)
• PTC Resistance: 260 Ω ±25% at 25°C
• PTC Steady Current: Typical 45 mA ±35% at 24 V DC

Physical Specifications

• Module Dimensions: 90 × 70 × 58 mm (L × W × H)
• DIN Rail Type: TS32 / TS35 × 7.5
• Used Rail Length: 91 mm

Termination Specifications

• Terminal Type: Screw terminals
• Max. Wire Diameter: 2.5 mm² (AWG 14)
• Strip Length: 7 mm
• Tightening Torque: 0.5 Nm

Field Signal Specifications (Non-Incentive Field Circuits, Class 1 Division 2)

• Max. Closed Loop Resistance: 10 Ω
• Min. Open Loop Resistance: 15 kΩ

Hydrogen Specifications (Group A & B)

• Max. Supply Voltage: 28.8 V DC
• Max. Loop Inductance: 3 mH
• Max. Loop Capacitance: 0.3 µF

Hydrogen Specifications (Group C & D)

• Max. Loop Inductance: 10 mH
• Max. Loop Capacitance: 6 µF
