Functionality

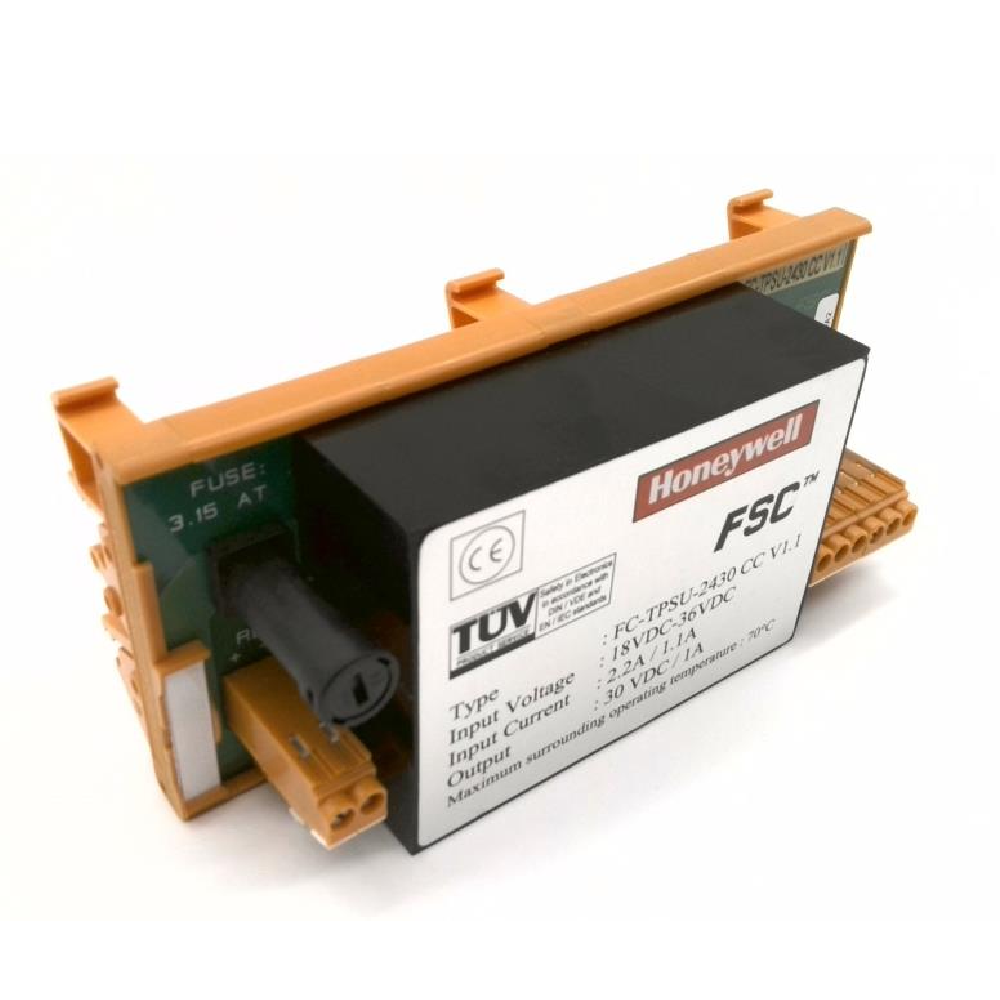

The FC-TPSU-2430 is a DC/DC converter module that provides an isolated 30 V DC / 1 A output. It powers field termination assemblies (FTAs) such as the TSAI-1620m and TSHART-1620m. The module includes voltage monitoring features with local LED indications and alarm functions, triggered by a read-back relay contact, ensuring real-time feedback on output status.
Key Features
- Voltage Monitoring
- Local LED indicates output voltage status.
- Read-back relay contact closes when output voltage is within the acceptable range.
- Galvanic Isolation
- Isolates input, output, and relay contact connections to enhance safety and system integrity.
- Robust Design
- Short-circuit proof output with overvoltage protection.
- High efficiency (>75%) with natural convection cooling.
- Safety Compliance
- Certified for SIL3 applications.
- Meets various safety standards: CE, TUV, UL, CSA, and FM.
- Mounting Options
- Compatible with DIN rail mounting (TS32/TS35).
- Can be installed horizontally or vertically.
Connections
Input Terminals
| Terminal | Function |
|---|---|
| 1 | Read-back contact |
| 2 | Read-back contact |
| 3 | 24 V DC IN (+) |
| 4 | 24 V DC IN (–) |
Output Terminals
| Terminal | Function |
|---|---|
| 1A, 2A, … 6A | 30 V DC OUT |
| 1B, 2B, … 6B | 0 V DC OUT or Ground1 |
Note: The “0 V DC OUT” must be connected to ground or a dedicated Earth Leakage Detector (ELD) to ensure proper system behavior in case of a short to earth.
Specifications
General
| Parameter | Specification |
|---|---|
| Type Numbers | FS-TPSU-2430, FC-TPSU-2430 |
| Safety Class | SIL3 |
| MTBF | Approximately 400,000 hours |
Electrical
| Parameter | Specification |
|---|---|
| Input Voltage | Nominal: 24 V DC; Range: 18–36 V DC |
| Inrush Current | ≤ 4 A |
| Output Voltage | 30 V DC ± 0.25 V |
| Output Current | 1 A (short-circuit proof) |
| Ripple (0–30 MHz) | < 0.1 V RMS |
| Short-Circuit Current | < 3.3 A |
| Overvoltage Protection | 33 V |
| Efficiency | > 75% |
Environmental
| Parameter | Specification |
|---|---|
| Operating Temperature | -5°C to +70°C (23°F to 158°F) |
| Storage Temperature | -40°C to +85°C (-40°F to 185°F) |
| Altitude | ≤ 2000 m |
| Cooling | Natural convection |
Physical
| Parameter | Specification |
|---|---|
| Dimensions | 150 × 70 × 62.3 mm (5.91 × 2.76 × 2.45 in) |
| Fuse Rating | 3.15 A (Schurter PN: 0001.2509) |
Alarm Functions
- Overvoltage Protection
- Dual, two-fault-tolerant design.
- Requires removal of 24 V DC power to reset.
- Undervoltage Detection
- LED turns ON if output voltage is within the acceptable range.
- Relay contact closes at 27.5 V DC (typical).
Details
| Weight | 0.14 kg |
|---|
