Overview

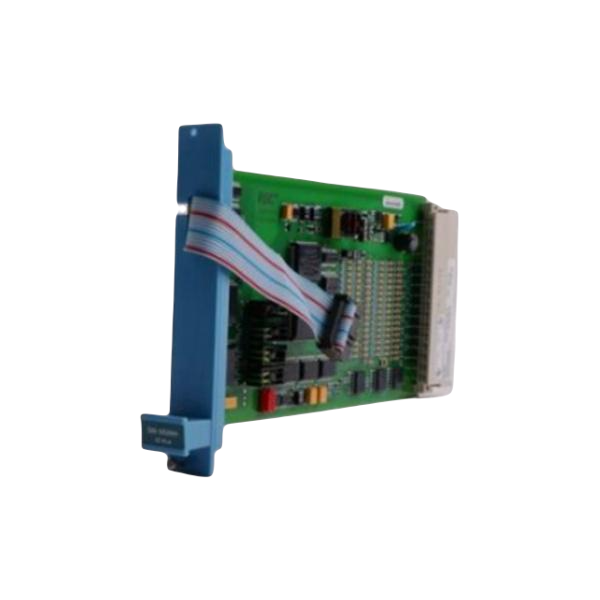

The HONEYWELL FC-SDIL-1608 Digital Input Module offers a reliable solution for managing 16 channels of loop-monitored signals or proximity switch-derived status signals. Conforming to DIN (NAMUR) standards, this module ensures accuracy in monitoring and controls. It also features earth fault detection for increased safety.
Technical Specifications
| Parameter | Value |
|---|---|
| Type Number | FC-SDIL-1608 |
| Power Requirements | 5 V DC: 160 mA; 24 V DC: 110 mA |
| Number of Input Channels | 16 |
| Input Type | According to DIN (NAMUR) |
| Switch Level | 1.4–1.9 mA |
| Hysteresis | 0.2 mA ± 0.05 mA |
| Input Filter | First order, low pass, 100 Hz |
| Field Wire Resistance | Max. 50 Ω |
| Output Voltage | 7.9–8.7 V (8 V loop supply) |
| Output Current | 170 mA (short-circuit proof) |
| Max. Load Capacitance | 100 nF |
| Earth Fault Monitoring | 1 |
| Test Current | 0.5 mA |
| Input Resistance | Typically 0.5 MW |
| Field Fault Voltage | Max. 250 V AC |
Key Features
- 16 Input Channels: Supports loop-monitored and status signals.
- DIN (NAMUR) Compliance: Ensures compatibility with international standards.
- Earth Fault Monitoring: Provides an added layer of safety with fault detection.
- Short-Circuit Protection: The output current is short-circuit proof to ensure operational stability.
- Low Power Consumption: Operates with a 5V or 24V DC input, making it energy-efficient.
Applications
The FC-SDIL-1608 is ideal for use in industrial automation systems requiring reliable digital input management. It can be used in applications such as proximity switch monitoring and safety systems, ensuring consistent performance and minimal downtime.
FAQ
1. What is the power requirement for the FC-SDIL-1608 module?
The HONEYWELL FC-SDIL-1608 requires 160 mA at 5V DC and 110 mA at 24V DC.
2. Does this module support fault monitoring?
Yes, it includes monitoring capabilities for earth faults in all 16 channels, ensuring added safety.
3. What is the maximum load capacitance supported by this module?
The module supports a maximum load capacitance of 100 nF.
4. What is the warranty and return policy?
This module is brand new, factory-sealed, and comes with a 30-day return policy if there are any quality issues.
5. How long does shipping take for the FC-SDIL-1608?
Typically, orders ship within 3–14 days depending on order size, and we use reliable couriers like DHL.
Details
| Weight | 0.65 kg |
|---|
