Product Overview

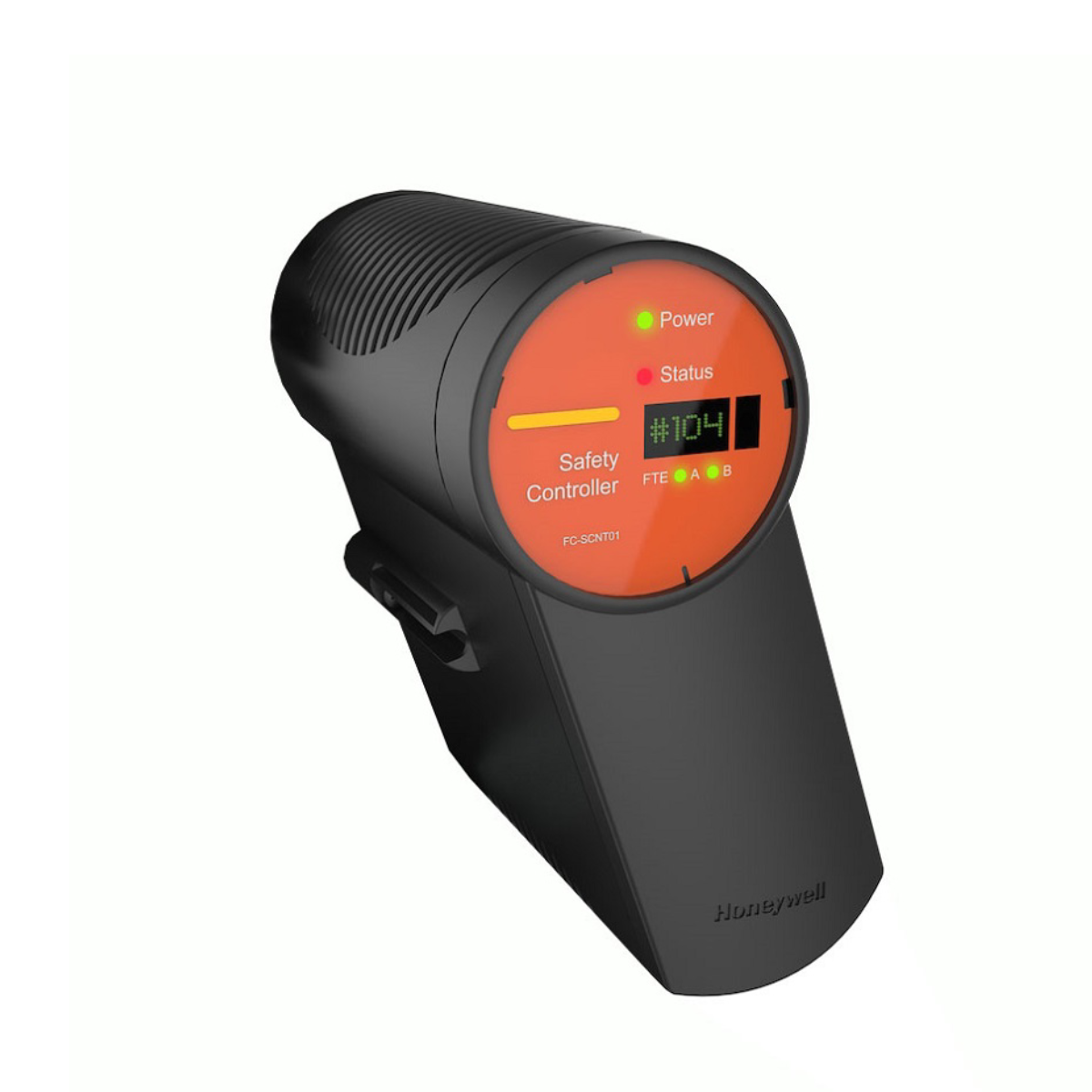

The FC-SCNT02 (Part Number 51460114-176) is a SIL3-certified safety controller for the Honeywell Safety Manager SC (SC S300) system.
It provides reliable, high-integrity control in safety-critical industrial applications.

Key Features

• Direct Replacement: Replaces FC-SCNT01 online without downtime.
• Full Compatibility:
  • Functions identically to FC-SCNT01.
  • Works alongside FC-SCNT01 in redundant SMSC controllers.
  • Fully pin-to-pin and backwards compatible.
• Enhanced Performance:
  • Increased memory for faster processing.
  • Required for DNP3 Outstation protocol support (from R212 software release).
• Software Requirements:
  • Supported from Safety Manager SC release R200.2 and higher.
  • DNP3 protocol available in R212.

DNP3 Protocol Support

• Introduced in Safety Manager SC R212.1.
• Allows Safety Manager SC to act as a DNP3 Outstation.
• Experion Server or Control Edge RTU can act as the DNP3 Master.
• DNP3 protocol requires a license in Safety Builder.

Release Information

• Expected Release: Safety Manager SC R212.1 and FC-SCNT02 were expected in Q4 2022.

This module ensures high-integrity, reliable safety control and is ideal for upgrading or expanding existing SC S300 systems.
