Overview

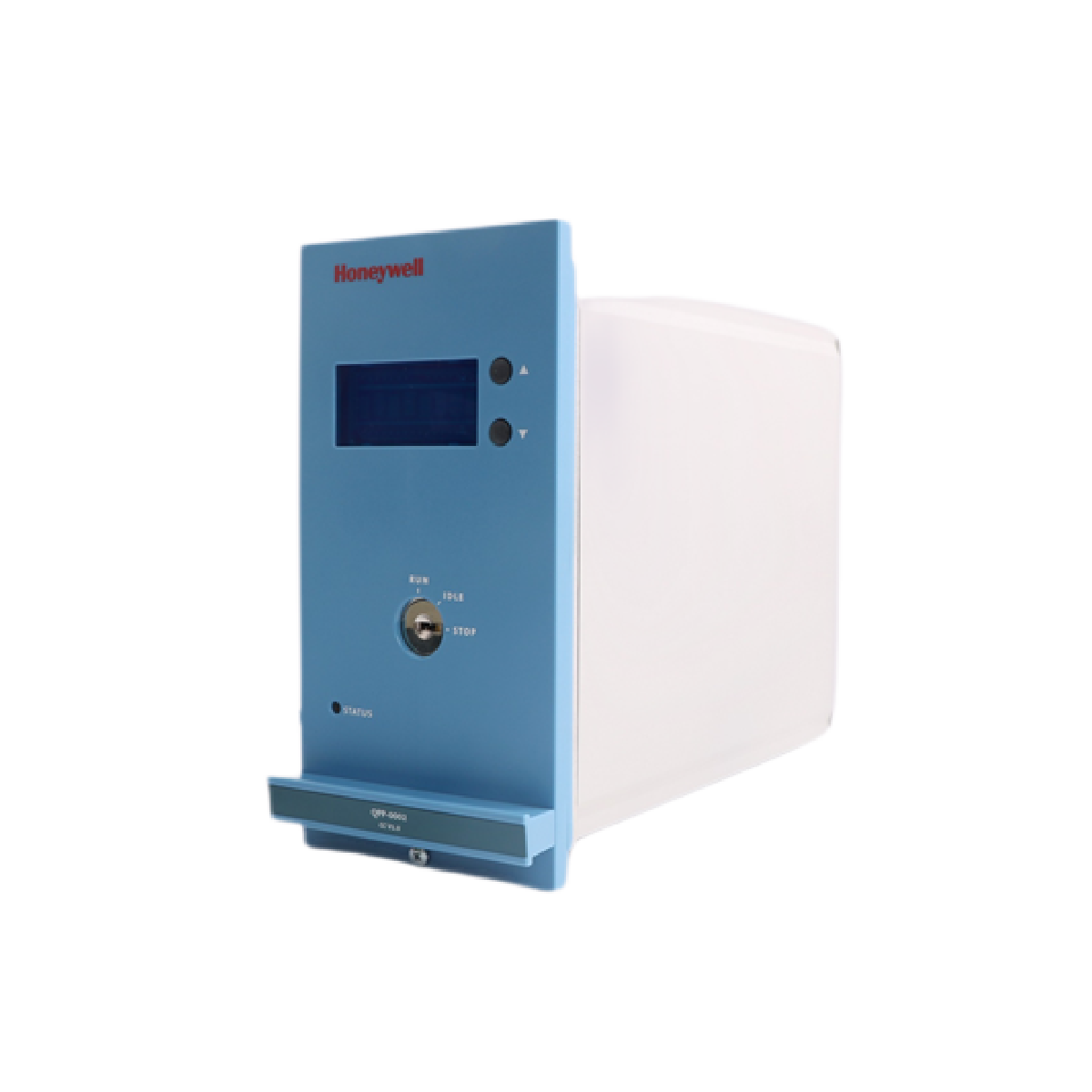

The Honeywell FC-QPP-0002 CC V1.2 is an advanced quad processor pack designed for high-performance industrial automation applications. Its conformal-coated construction ensures long-term reliability in harsh environments, while the V1.2 update optimizes Ethernet request handling for improved network efficiency. This processor pack integrates seamlessly into Honeywell control systems to manage complex process logic with precision.
Key Features
- Enhanced Performance: Optimized Ethernet request handling for faster, more reliable communication
- Durable Design: Conformal-coated for protection against humidity, dust, and industrial contaminants
- Versatile Operation: Compatible with standard Honeywell automation modules and networks
- Protected Power and I/O: Short-circuit protection and reverse polarity safeguards
- Certifications: CE, UL, CSA, TUV, FM approved for global industrial use
Electrical Specifications
| Feature | Specification |
|---|---|
| 24 V Supply Voltage | 24 VDC (-15% to +30%) |
| 24 V Supply Current | Max. 25 mA |
| 5 V Supply Voltage | 5 VDC ±5% |
| 5 V Supply Current | Max. 1.2 A |
| +24 V_sd Output | 15–31 VDC, approx. 1.1 kΩ output resistance, continuous short-circuit protection |
| SD Input Voltage High | 15–32 VDC |
| SD Input Voltage Low | <4 VDC (reverse polarity protected) |
| SD Input Current | Approx. 8 mA at 24 VDC |
| WDout Output Current | 750 mA per output |
Environmental Specifications
- Operating Temperature: External: -5°C to +70°C, Internal: -5°C to +85°C
- Storage Temperature: -40°C to +85°C
- Relative Humidity: 10% to 95% (non-condensing)
Physical Characteristics
- Dimensions (H × W × D): 176 × 88.5 × 212 mm (6.93 × 3.48 × 8.35 in)
- Weight: 1.3 kg
- Construction: Conformal-coated for industrial durability
Applications
- Industrial process control systems
- Honeywell automation networks requiring high-speed Ethernet handling
- Harsh environments where moisture or dust protection is critical
- Redundant or complex control logic requiring reliable quad-processor performance
Details
| Weight | 1.3 kg |
|---|
